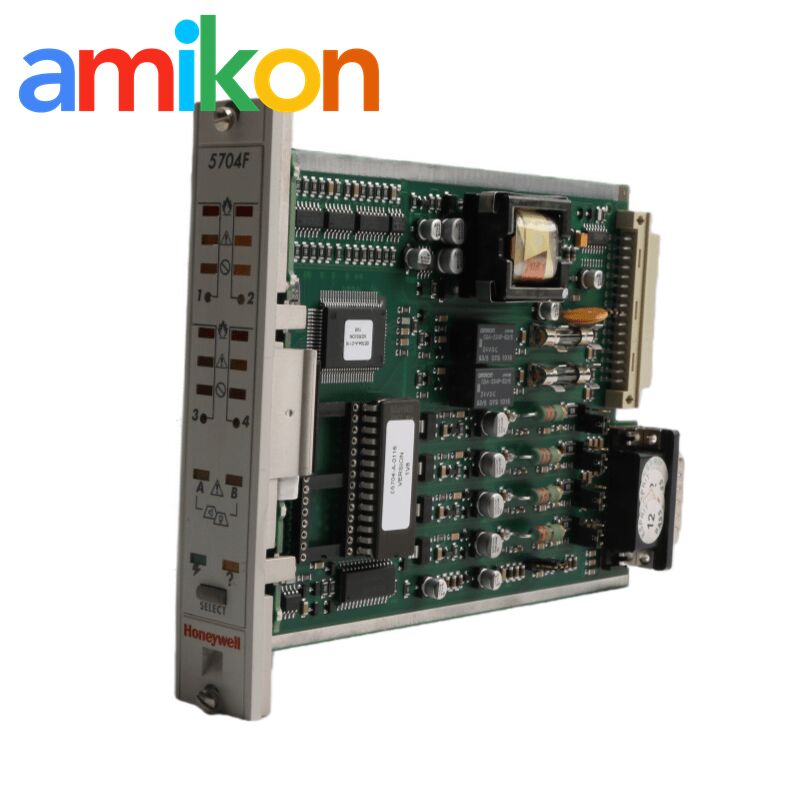

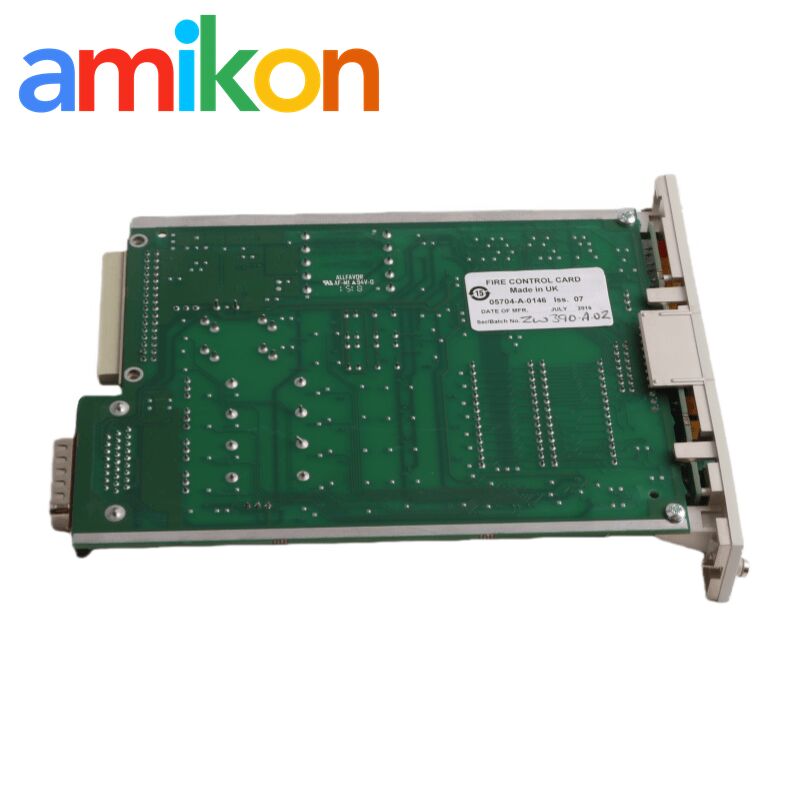

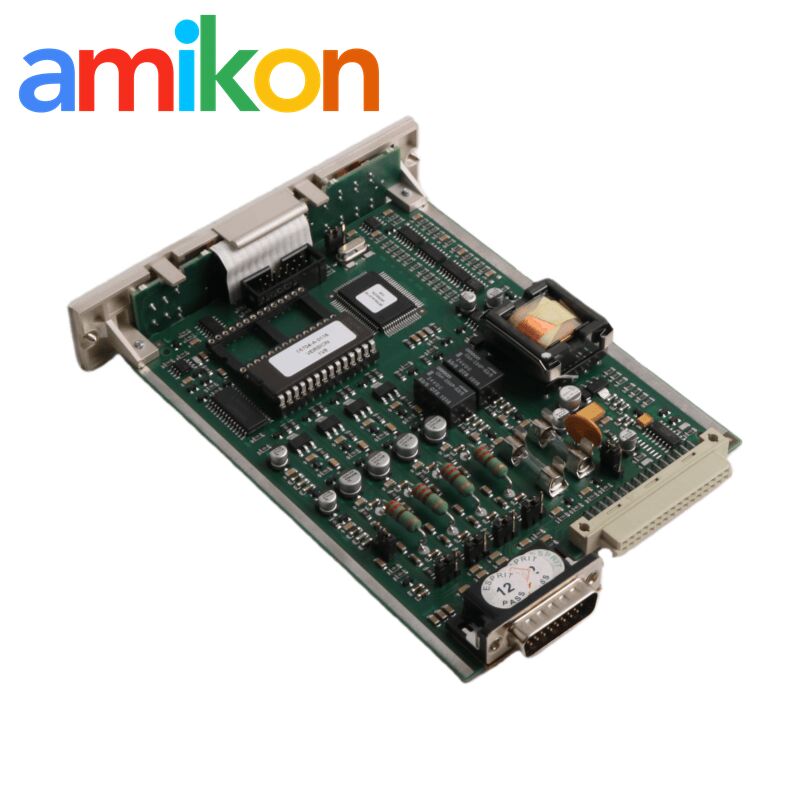

Honeywell 05704-A-0146 4 Channels Fire Control Card with Microprocessor-Controlled Operation
Honeywell 05704-A-0146 4 Channels Fire Control Card with Microprocessor-Controlled Operation
4 Channels Fire Control Card
RS-232/RS-485 Control Card
Microprocessor-Controlled Fire Detection Card
Place of Origin:
USA
Brand Name:
Honeywell
Model Number:
05704-A-0146
Contact Us
Request A Quote
Product Details
Manufacturer:
Honeywell
Operating Temperature Range:
-40°C To 85°C
Input Voltage Range:
90VAC To 264VAC
Output Voltage:
DC 24V
Power Consumption:
≤ 15W
Communication Interface:
RS-232, RS-485
Relay Output:
4 Channels
LED Indicators:
Status And Alarm Indicators
Highlight:
4 Channels Fire Control Card
,RS-232/RS-485 Control Card
,Microprocessor-Controlled Fire Detection Card
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Honeywell MU-KFTA05 51201420-005 FTA I/O Cable with 16 AWG Conductor 100 MΩ Insulation and 1000V AC Dielectric Rating
Get Best Price
Video
Honeywell CC-PAIH51 16-Channel Analog Input Module with 16-Bit Resolution and 4-20 mA Input Range
Get Best Price
CONTACT US
Contact Now
Product Description
The 5704F Fire Control Card provides control, display, and alarm capabilities for up to four independent loops (or zones) of fire detection. Depending on the detector type, each loop may accommodate multiple detectors.
Key Features
- Two fault-monitored switched DC outputs
- A minimum of six volt-free outputs
- Clear LED front panel indicators showing the status of all input and output loops, as well as overall card status
- A push-button for selection with the Fire Status Panel and Engineering Card
Operation is microprocessor-controlled and fully configurable to suit a wide range of fire detectors and application requirements. Setup information is stored in non-volatile memory on the fire card, ensuring settings are retained during power loss. Additionally, user-selectable jumper links are provided to maintain compatibility with certain system configurations. This single fire card is suitable for all common applications; no additional plug-in modules are required.
Four Channel Control Card Functions
Sensor Power Supply
Provides the necessary voltages and currents to drive the connected fire detection sensors.
Provides the necessary voltages and currents to drive the connected fire detection sensors.
Signal Processing
Receives and processes incoming sensor signals from all connected detectors.
Receives and processes incoming sensor signals from all connected detectors.
Signal Evaluation
Compares each loop's input signal with pre-defined fault and alarm thresholds.
Compares each loop's input signal with pre-defined fault and alarm thresholds.
Alarm and Fault Indication
When thresholds are exceeded, the card activates alarms or fault indicators by:
When thresholds are exceeded, the card activates alarms or fault indicators by:
- Illuminating front panel LEDs
- Operating relays and/or switched DC outputs
Communication
Transmits input status information to other connected cards in the system.
Transmits input status information to other connected cards in the system.
Self-Monitoring and Validation
Continuously validates the operation of its:
Continuously validates the operation of its:
- Circuit components
- Software
- Loop inputs, remote inputs, and DC switched outputs
