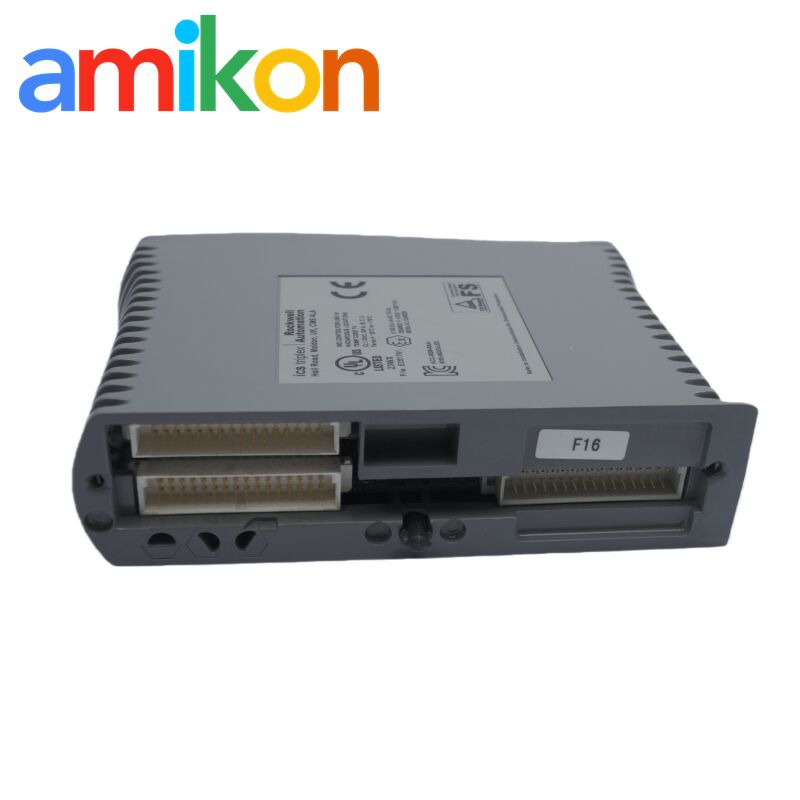

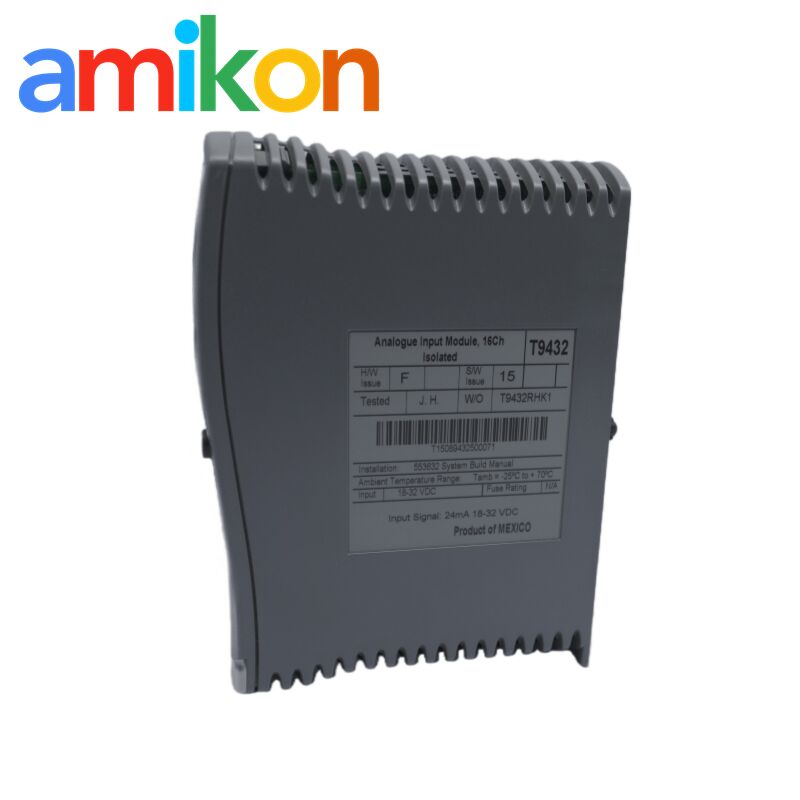

ICS Triplex T9432 Analog Input Module with 16 Input Channels HART Integration and Isolation
ICS Triplex T9432 Analog Input Module with 16 Input Channels HART Integration and Isolation
16 Input Channels Analog Input Module
HART Integration T9432 Module
Isolation and Fault Protection ICS Triplex Module
Place of Origin:
USA
Brand Name:
ICS triplex
Model Number:
T9432
Contact Us
Request A Quote
Product Details
Estimated Shipping Size:
4.1x12.1x16.5cm
Weight:
0.36 Kg
Input Channels:
16
Safety Accuracy Limit:
200 µA
Self Test Interval:
< 1 Hour; System Dependent
Sample Update Interval (no Filter):
6 Ms
Value Of Least Significant Bit:
0.98 µA
Module Supply Power Dissipation:
4.0 W (13.6 BTU/hr)
Highlight:
16 Input Channels Analog Input Module
,HART Integration T9432 Module
,Isolation and Fault Protection ICS Triplex Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
ICS Triplex TC-308-02-2M5 Output Jumper Cable for Fault-Tolerant (TMR) architectures
Get Best Price
Video
ICS Triplex T9432 Analog Input Module with 16 Input Channels HART Integration and Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
The T9432 analog input module provides sixteen isolated input channels for process monitoring. Each channel measures 0-24 mA input current and supplies digital and analog data to the processor.
Key Functions & Features
- Configurable Voltage Bands: Each channel offers five adjustable voltage bands with eight switching thresholds to implement hysteresis, line monitoring, and field device diagnostics.

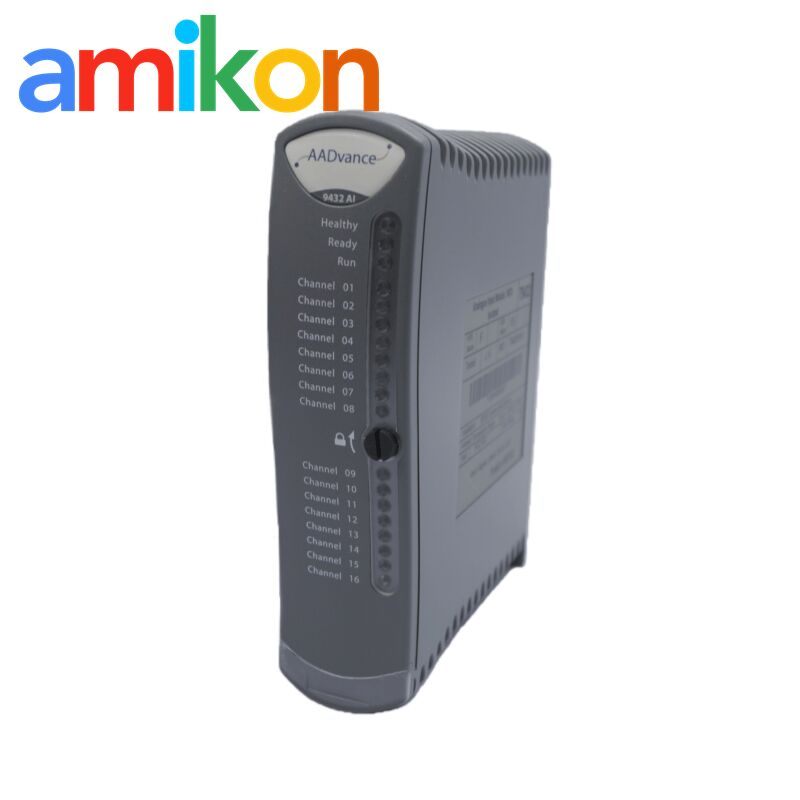

- Local and System Diagnostics: Front panel LEDs indicate module and channel status. Status data can also be accessed via Workbench application variables. Comprehensive system- and module-level diagnostics support rapid maintenance.
- Isolation and Fault Protection: Signal and power isolation circuits separate each input channel from the system, protecting the controller from field faults. An independent watchdog monitors module operation and triggers shutdown in case of faults.
- Termination Assemblies: Compatible with T9831/2/3 termination assemblies. In dual or TMR configurations, the module provides fault-tolerant input, allowing replacement without interrupting data flow.
- HART Integration: Supports HART commands #03 for data collection from field devices. HART data can be used to monitor device conditions or supply module diagnostics, including error and comparison reporting.
- Line Monitoring: Each channel can be configured via AADvance Workbench with default parameters: Fault (0-3.8 mA), Normal (3.8-22.0 mA), Fault (>22.0 mA).
- Process Safety: Enables fast detection of abnormal conditions, ensures reliable input for processor modules, and supports continuous monitoring even during module replacement.
