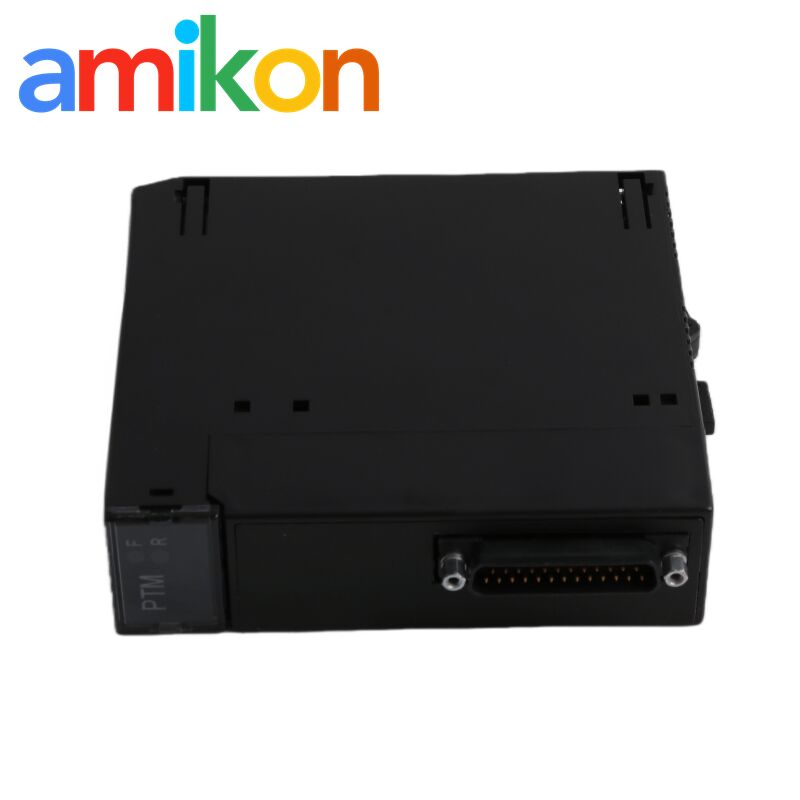

GE IC693PTM101 Power Transducer Module with 14-bit Resolution 1500V Backplane Isolation
GE IC693PTM101 Power Transducer Module with 14-bit Resolution 1500V Backplane Isolation
14-bit Resolution Power Transducer Module
1500 Volts Backplane Isolation GE IC693PTM101
0-7.5 Amperes Current Series 90-30 PLC Module
Place of Origin:
USA
Brand Name:
General Electric
Model Number:
IC693PTM101
Contact Us
Request A Quote
Product Details
Voltage:
10-120 Volts AC
Mounting:
Any Series 90-30 Baseplate
Current:
0-7.5 Amperes
Compatible Series 90-30 CPU:
Any CPU Module
Frequency:
35-70 Hertz
Backplane Isolation Voltage:
1500 Volts
Total Power Dissipation:
4W Max
Resolution:
14-bit
Highlight:
14-bit Resolution Power Transducer Module
,1500 Volts Backplane Isolation GE IC693PTM101
,0-7.5 Amperes Current Series 90-30 PLC Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
GE UR5EH Transducer I/O Module with 2.5 kV RMS Isolation Industrial Temperature Rating
Get Best Price
Video
GE 8709-CA-08 Module Carrier with 8-module capacity DIN-rail mounting and extended addressing
Get Best Price
CONTACT US
Contact Now
Product Description
The IC693PTM101 is a Power Transducer Module designed for the Series 90-30 PLC platform. This module is primarily used for electrical consumption analysis and voltage monitoring between electrical generators and distribution grids. It is a programmable, intelligent device capable of operating in single-phase mode, three-phase mode, and synchro monitor mode, allowing it to perform a wide range of monitoring and analysis functions.
The module is installed on a Series 90-30 baseplate and is intended for direct connection to current transformers (CTs) and potential transformers (PTs) for electrical data acquisition. The IC693PTM101 consists of three main components: a processing module, an interface board, and an interface cable. It supports both Wye and Delta three-phase systems, as well as single-phase power systems, providing flexibility across different power distribution architectures.
The IC693PTM101 performs accurate RMS measurements of voltage and current, and calculates real power, reactive power, power factor, frequency, energy, and total demand over a standard 15-minute demand interval for three-phase systems. Functionally, it provides capabilities similar to a power meter, while offering additional operating modes and direct integration with a PLC. This enables simplified data acquisition, reporting, and system-level analysis without the need for standalone metering devices.
In addition to measurement functions, the module supports data reporting, fault monitoring, and generator-to-grid synchronization. It can also be applied in load shedding strategies and demand penalty cost reduction programs. Compatibility is maintained across all Series 90-30 PLC CPUs, and the processing module may be installed on CPU, expansion, or remote baseplates, allowing flexible system layouts and reducing long cable runs.
Series 90-30 PLC Technical Specifications
- What is the Series 90-30 PLC? Modular PLC with integrated I/O and specialty modules
- Applications: Packaging, material handling, motion control, water treatment, emissions monitoring, mining, food processing, elevators, injection molding
- I/O Configuration: Supports 100+ digital and analog modules with local or remote wiring
- Connectable Devices: Pushbuttons, switches, proximity sensors, relays, contactors, flow, temperature, pressure devices
- Communications: Ethernet (SRTP, Modbus TCP/IP), Fieldbus: Ethernet EGD, Profibus-DP™, Genius®, DeviceNet™, Interbus-S™
- Motion Control: Supported with point-to-point modules available
- Programming: Proficy® Machine Edition with LD, IL, ST, C Block
- Scalability: CPU processing can be upgraded without changing application software
- Redundancy: Redundant CPU and power supply supported
- Module Expansion: Ethernet CPUs or rack-mounted I/O modules can be added
The Amikon Advantage
The Reality of Buying from Amikon:
- The Inventory: We hold a massive strategic stock of DCS, PLC, and HMI modules that are currently backordered elsewhere
- The Pricing: We don't just quote; we negotiate. Large project? Tight budget? Let's talk numbers
- The Support: You get a dedicated human manager, not a generic ticket system
Logistics Simplified: We ship daily via FedEx, UPS, and DHL. Prefer your own carrier? Just send us the labels. We're flexible.
Challenge us with your hardest part number:
✔︎ Email: sales@amikon.cn
✔︎ WhatsApp: +86 180 2077 6792
Attn: Miya Zheng (Global Sourcing)
Quick response. Real stock. No lead-time drama.
