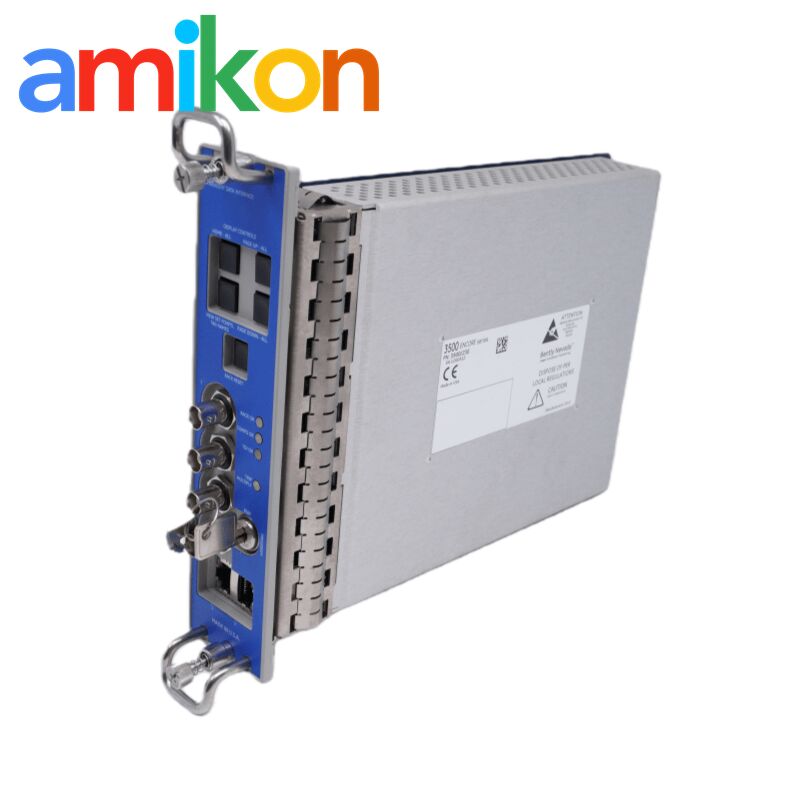

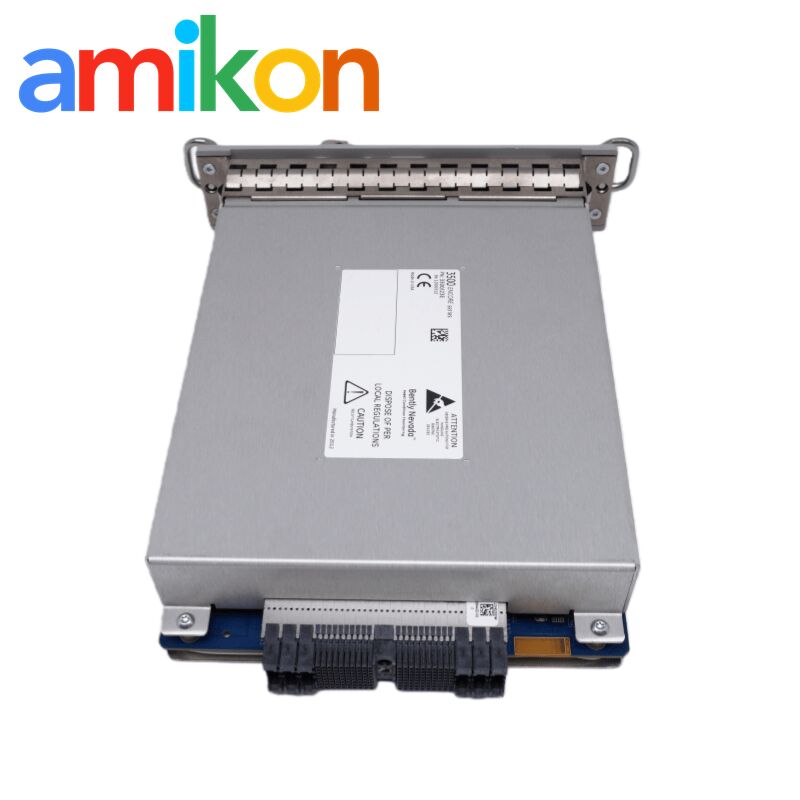

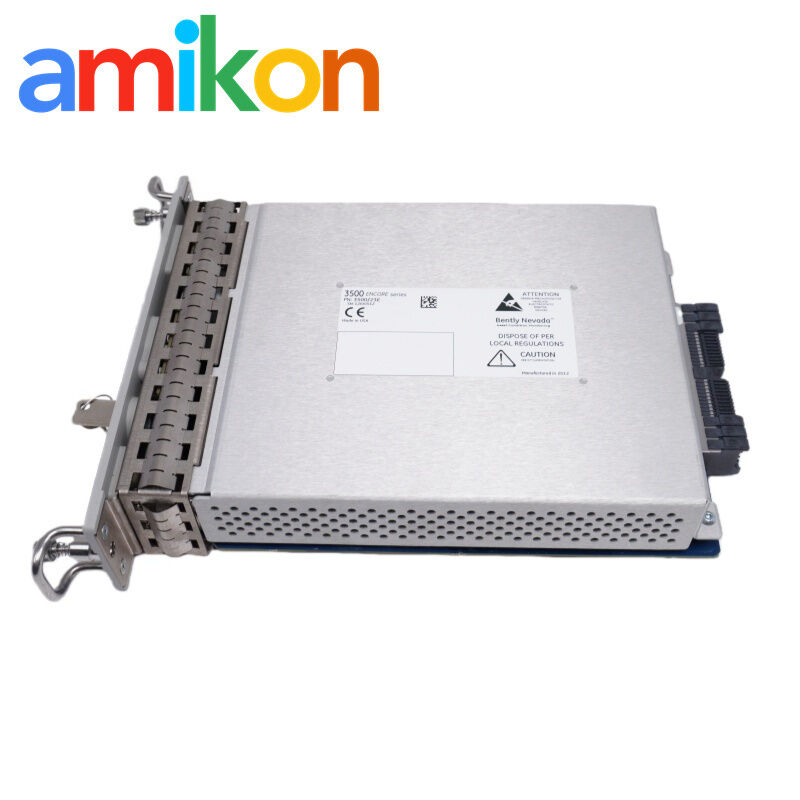

Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link

Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link

24 VDC Power Supply Transient Data Interface

Ethernet Communication Link TDI

Real-Time Data Acquisition 3500/23E

Place of Origin:

USA

Brand Name:

Bently Nevada

Model Number:

3500/23E

Contact Us
Request A Quote
Product Details
Operating Temperature:
0 °C To +65 °C (-22 °F To +149 °F)
Storage Temperature:
-40 °C To +85 °C (-40 °F To +185 °F)
Humidity:
95%, Non-condensing
Powered TDI:
38 Years @ 50°C (122 °F)
Un-powered TDI:
12 Years @ 50°C (122 °F)
Power Supply:
24 VDC
Estimated Shipping Size:
5.5x29x23cm
Weight:
1.44 Kg
Operating Temperature:
0 °C To +65 °C (-22 °F To +149 °F)
Storage Temperature:
-40 °C To +85 °C (-40 °F To +185 °F)
Humidity:
95%, Non-condensing
Powered TDI:
38 Years @ 50°C (122 °F)
Un-powered TDI:
12 Years @ 50°C (122 °F)
Power Supply:
24 VDC
Estimated Shipping Size:
5.5x29x23cm
Weight:
1.44 Kg
Highlight:

24 VDC Power Supply Transient Data Interface

,

Ethernet Communication Link TDI

,

Real-Time Data Acquisition 3500/23E

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
Bently Nevada 3500/23E Transient Data Interface
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link 0
Functional Overview
The 3500/23E Transient Data Interface (TDI) serves as the primary communication and data interface between the 3500 ENCORE™ Machinery Protection and Monitoring System and GE System 1™ condition monitoring and diagnostic software. It integrates the functionality of a System Monitor with the data acquisition and communication capabilities of a dedicated communication processor.
System Operation
Installed in the System Monitor slot of a 3500 ENCORE rack, the TDI operates in conjunction with 3500/42E vibration monitoring modules. This configuration enables the continuous acquisition of:
  • Steady-state waveform data
  • Transient and dynamic waveform data
Collected data is transmitted in real time to the host system via an Ethernet communication link for analysis and diagnostics within System 1 software.
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link 1
The TDI incorporates enhanced communication processor functionality directly within the 3500 ENCORE rack architecture, offering improvements over previous-generation communication processors.
Key Communication Features
  • Access to all monitored values and system statuses within the rack
  • Seamless integration with process control systems (DCS/PLC) and other automation platforms
  • Support for serial communication protocols: RS-232, RS-422, RS-485
These capabilities allow the TDI to function as a centralized data gateway for machinery condition information.
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link 2
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link 3
Interface Components
Label Component
A Reset Switch
B Buffered Transducer Outputs
C Ethernet Ports
D Display Control Switches
E Status LEDs
F Keylock (Program / Run)
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link 4
