Allen Bradley 1756-IH16I ControlLogix Isolated Input Module with 16 Individually Isolated Points
Allen Bradley 1756-IH16I ControlLogix Isolated Input Module with 16 Individually Isolated Points
16 Individually Isolated Points ControlLogix Input Module
125V DC Sink-Source Isolated Input Module
6 Milliseconds Input Delay 1756-IH16I
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1756-IH16I
Contact Us
Request A Quote
Product Details
Input Delay Time:
6 Milliseconds Plus Selected Filter Time
Operating Voltage Range:
90-146 Volts DC
Input Voltage:
125 Volts DC Sink-Source
Inputs:
16 Indvidually Isolated Points
Total Backplane Power:
0.71 W
Thermal Dissipation:
17.05 BTU/hr
Off-state Voltage, Max:
20V DC
Off-state Current, Max:
0.8 MA
Highlight:
16 Individually Isolated Points ControlLogix Input Module
,125V DC Sink-Source Isolated Input Module
,6 Milliseconds Input Delay 1756-IH16I
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
video
Allen Bradley 1794-IA8 Digital Input Module with 120V AC 8 Discrete Inputs and IP20 Protection
Get Best Price
video
Allen Bradley 1769-OV32T CompactLogix Solid State Output Module with 32 Compact Digital Outputs
Get Best Price
Contact Us
Contact Now
Product Description

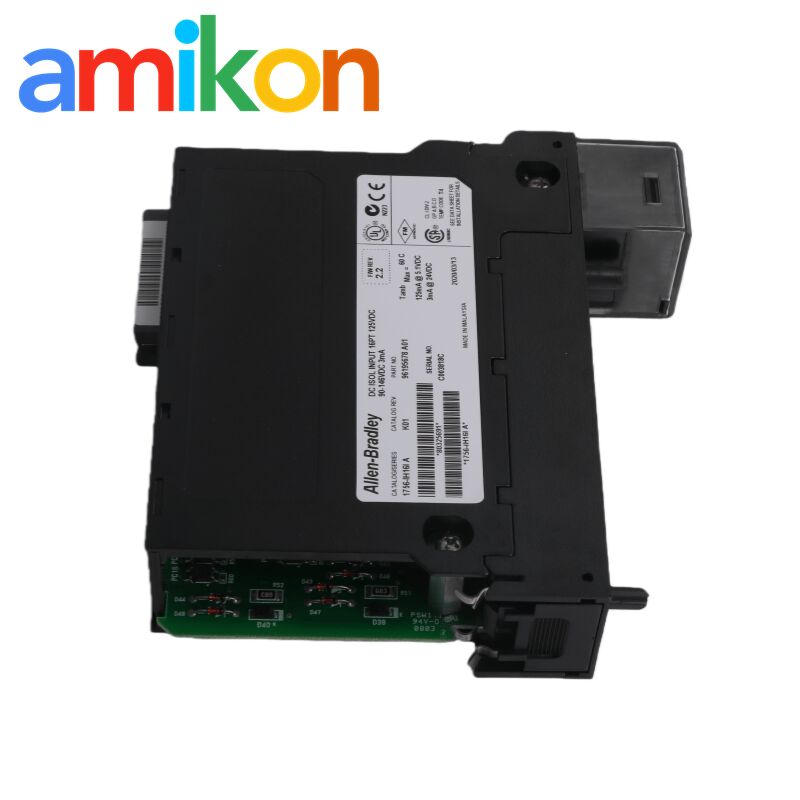

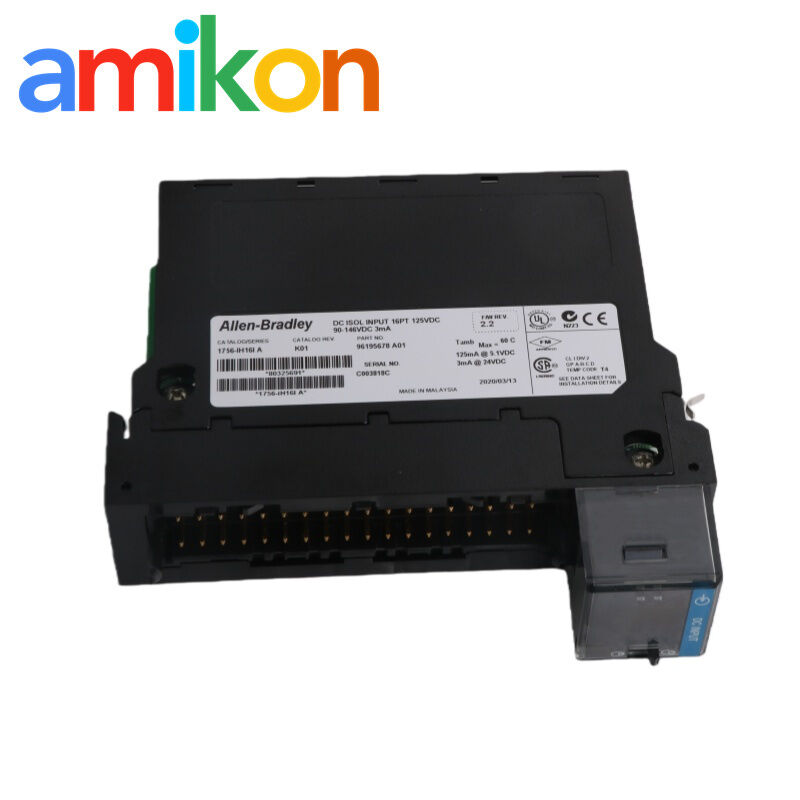

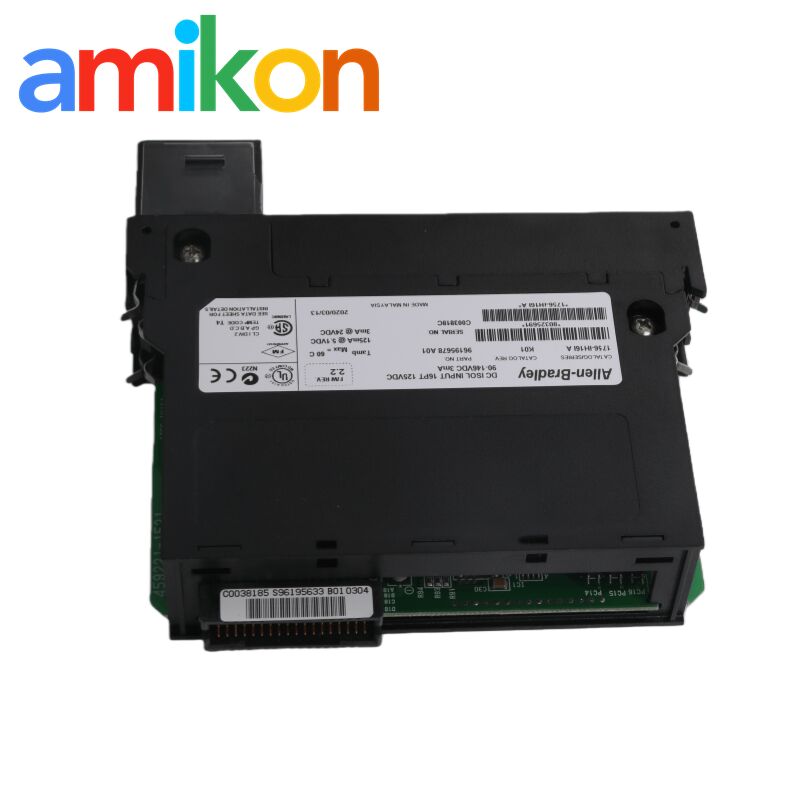

Allen Bradley 1756-IH16I ControlLogix Isolated Input Module
Technical Specifications
| Attribute | 1756-IH16I |
|---|---|
| Inputs | 16 individually isolated |
| Voltage category | 125V DC sink/source |
| Input voltage, nom | 125V DC |
| Input delay time (screw to backplane) | Off to On: Hardware delay: 2 ms max + filter time; User-selectable filter time: 0 ms, 1 ms, or 2 ms On to Off: Hardware delay: 6 ms max + filter time; User-selectable filter time: 0 ms, 1 ms, 2 ms, 9 ms, or 18 ms |
| Current draw @ 5.1V | 125 mA |
| Current draw @ 24V | 3 mA |
| Total backplane power | 0.71 W |
| Power dissipation, max | 5 W @ 60 °C (140 °F) |
| Thermal dissipation | 17.05 BTU/hr |
| Off-state voltage, max | 20V DC |
| Off-state current, max | 0.8 mA |
| On-state current, min | 1 mA @ 90V DC |
| On-state current, max | 3 mA @ 146V DC |
| Inrush current, max | 250 mA |
| Input impedance, max | 48.67 kΩ @ 146V DC |
| Cyclic update time | 200 µs...750 ms |
| Change of state | Software configurable |
| Time stamp of inputs | ±200 µs |
Status Indicators
| Indicator | Status | Description |
|---|---|---|
| OK Status | Steady green | The inputs are being multicast and in a normal operating state. |
| Flashing green | The module has passed internal diagnostics, but is not multicasting inputs or is inhibited. Uninhibit the connection or establish a connection to enable communication to the module. | |
| Steady red | The module must be replaced. | |
| Flashing red | Previously established communication has timed out. Check the controller and chassis communication. | |
| I/O Status | Yellow | The input is On. |
| Fault Status | Red | The input has encountered a fault. Check the input point at the controller. |
