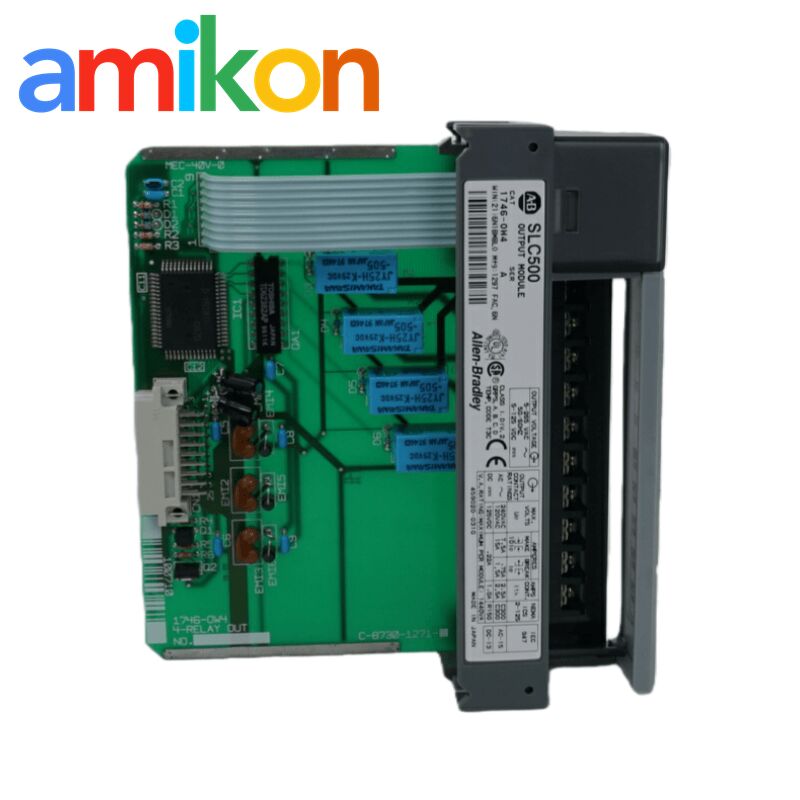

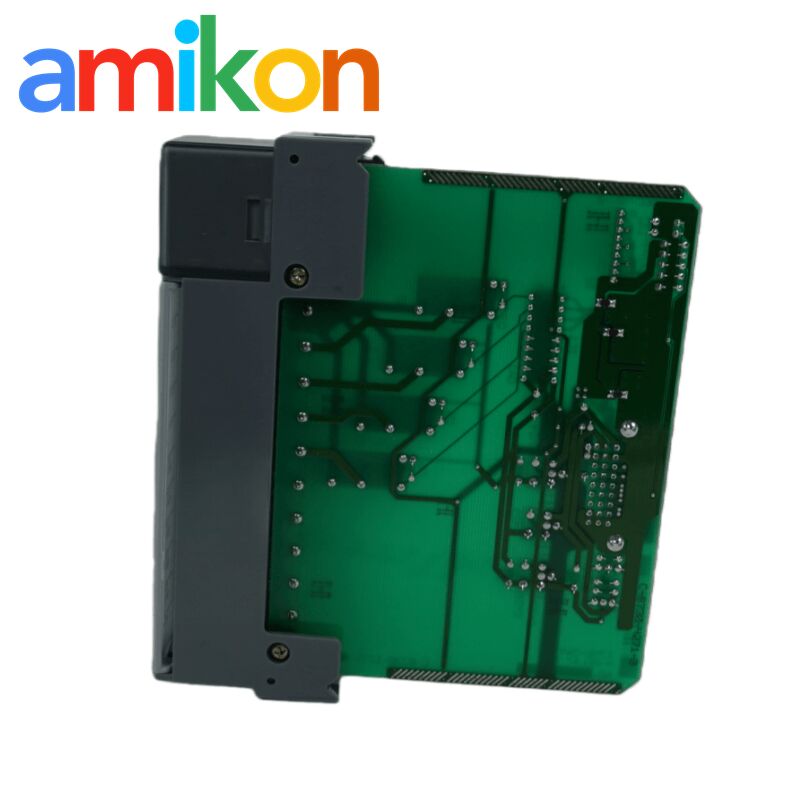

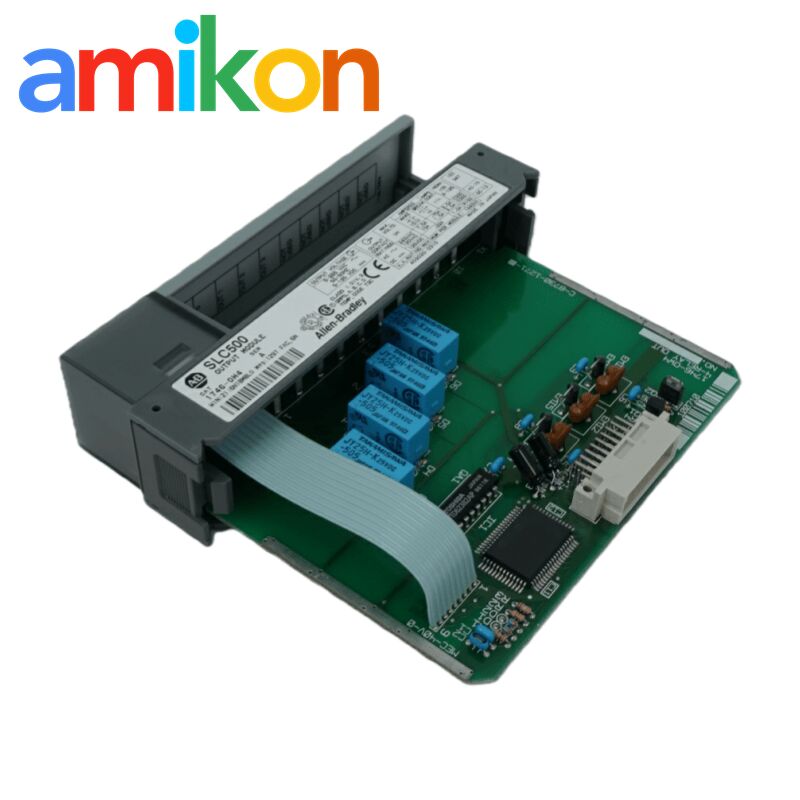

Allen Bradley 1746-OW4 Relay Output Module with 4 Outputs 5-265V AC/DC and N.O. Relay Contact
Allen Bradley 1746-OW4 Relay Output Module with 4 Outputs 5-265V AC/DC and N.O. Relay Contact
4 Outputs Relay Output Module
5-265V AC/DC 1746-OW4
N.O. Relay Contact SLC 500 Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1746-OW4
Contact Us
Request A Quote
Product Details
Product Model:
1746-OW4
Country Of Origin:
USA
Estimated Shipping Size:
12.7x5.1x15.2cm
Weight:
0.3 Kg
Operating Voltage:
5-265 Volt AC Or 5-125 Volts DC
Outputs:
4
Output Types:
N.O. Relay Contact
Current/Output (120 VAC):
1.5 Amps
Highlight:
4 Outputs Relay Output Module
,5-265V AC/DC 1746-OW4
,N.O. Relay Contact SLC 500 Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OV32 Current Sinking DC Output Module with 32 Outputs for SLC 500 Systems
Get Best Price
Video
Allen Bradley 1769-L19ER-BB1B CompactLogix Controller with 1GB Non-Volatile Memory 32 Task Capacity
Get Best Price
CONTACT US
Contact Now
Product Description
Identification & Environmental Integrity
The 1746-OW4 is a 4-channel AC/DC relay contact output module with 4 common points. This module provides no inputs. Sealing materials are susceptible to chemical degradation, requiring periodic inspection. Immediate module replacement is mandatory if sealing compromise is detected. Designed strictly for relay contact type output applications.
Electrical Ratings & Performance
Operating voltage ranges: 5-125V DC and 5-265V DC. Signal delay (ON/OFF): 10 ms. Backplane current draw: 0.045A at 5V DC and 0.045A at 24V DC. Minimum load current: 1 mA at 5V DC. Continuous current per point data must be verified in the user manual based on specific application variables.
Thermal Specs & Installation Safety
Maximum thermal dissipation: 1.9 W (0.133 W per individual point). Maximum total continuous current per module: 8A. Safety requirement: Disconnect all power sources before wiring or installation. Refer to user manual during the entire installation process to prevent equipment damage or personal accident.
SLC 500 Controller System
Controller Types
- The SLC 500 family consists of small programmable controllers
- Two hardware formats are available: fixed controllers and modular controllers
Fixed Controller Characteristics
- Power supply, processor, and I/O are integrated in one unit
- A 2-slot expansion chassis is supported for limited system expansion
- Suitable for applications requiring compact size and simple configuration
I/O Module Availability
- A wide range of discrete I/O modules is available
- Modules support cost-effective system design
- 32-point I/O modules reduce panel space requirements
Certifications and Compliance
- All discrete and specialty I/O modules are UL and CSA certified
- Most modules are approved for Class I, Division 2 hazardous environments
- Most SLC 500 modular components are CE compliant
