Siemens 6DD1660-0AE0 CS21 Communications Module with 24V DC Power Supply
Siemens 6DD1660-0AE0 CS21 Communications Module with 24V DC Power Supply
24V DC Power Supply Communications Module
Wide Operating Temperature Range CS21 Communications Module
High Humidity Resistance Siemens Simatic PLC Module
Place of Origin:
Germany
Brand Name:
Siemens
Model Number:
6DD1660-0AE0
Contact Us
Request A Quote
Product Details
Brand:
Siemens
Description:
Communications Module
Part Number:
6DD1660-0AE0
Warranty:
365 Days
MOQ:
1 Piece
Packaging:
Original New Packaging
Shipping:
TNT, DHL, FedEx, EMS, UPS
Country Of Origin:
Germany
Highlight:
24V DC Power Supply Communications Module
,Wide Operating Temperature Range CS21 Communications Module
,High Humidity Resistance Siemens Simatic PLC Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description

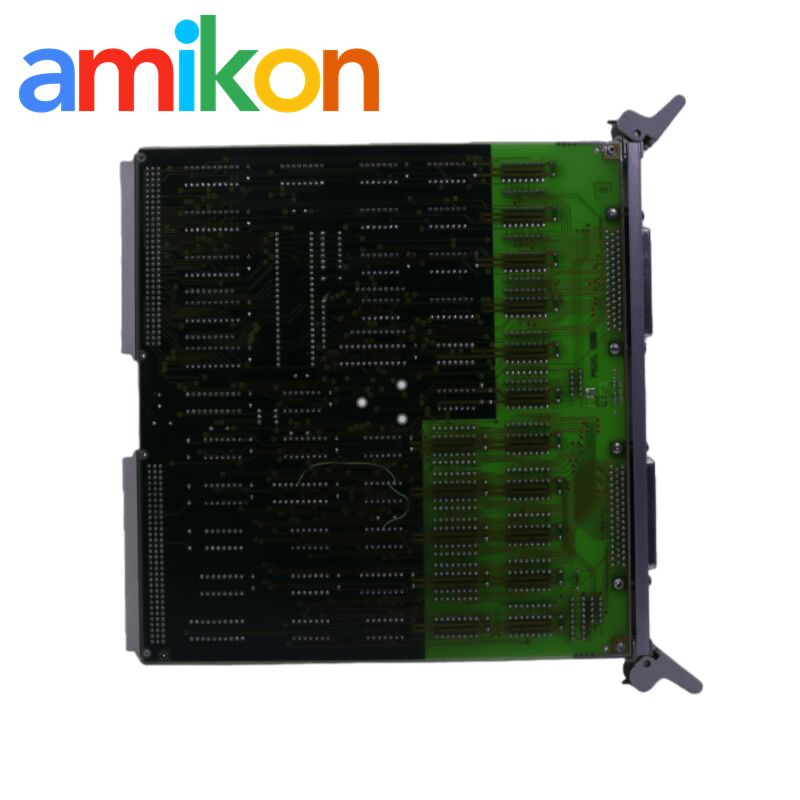

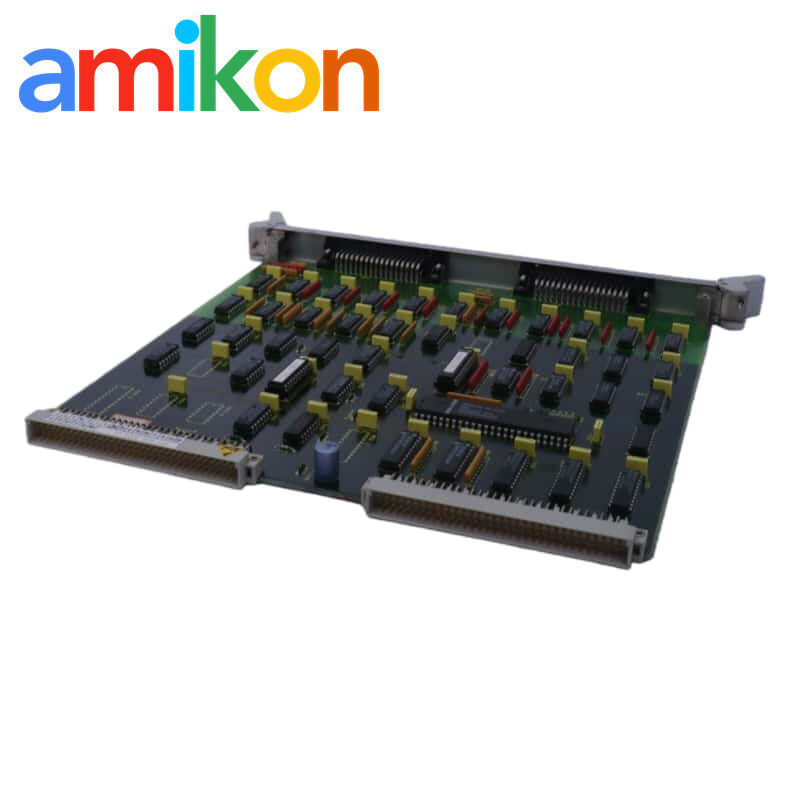

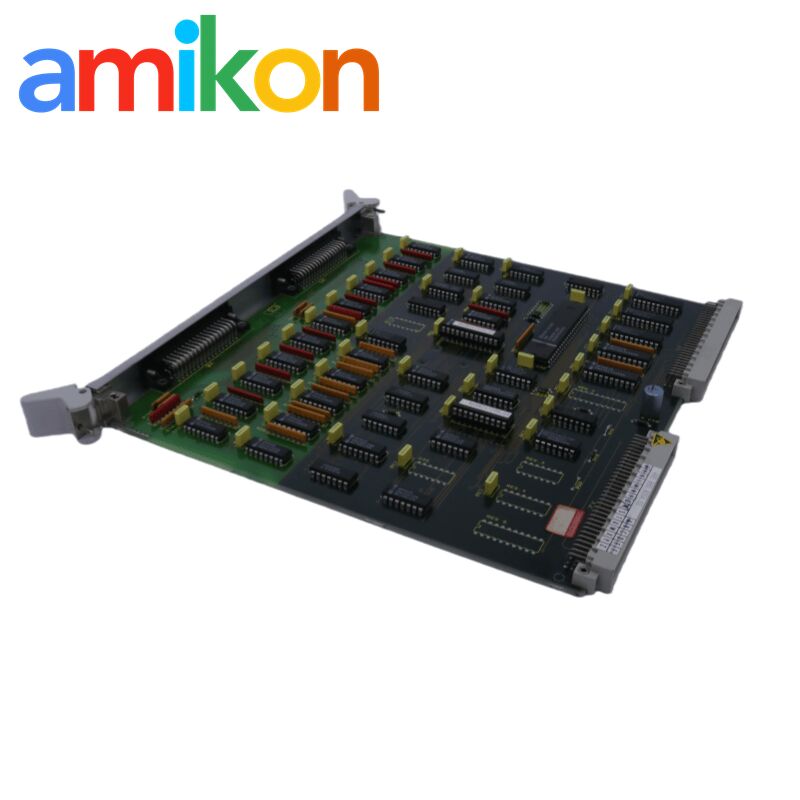

Siemens 6DD1660-0AE0 Communications Module
| Product Model | 6DD1660-0AE0 |
| Product Parameters | CS21 Communications Module |
| Country of Origin | GERMANY |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Size | 27.9×5.1×27.9cm |
| Manufacturer | Siemens |
| Weight | 0.5 kg |
| Power Supply | 24V DC (18-72V DC range) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | ≤ 95% RH (non-condensing) |
Technical Application Notes
Power Input Variance: Is it safe to run this directly off a 48V battery bank?
Yes. The 6DD1660-0AE0 is designed with a wide-input DC-DC converter precisely for this application. Whether you're on a 24V industrial bus or a 48V telecom-style rail, the module maintains internal 5V/12V logic stability. Note: If your 48V system has high switching noise, ensure the subrack's central grounding point is tied to a clean earth to prevent "dirty" power from leaking into the CS21 communication bus.
Thermal Limit & Jitter: Does the +70°C ceiling mean I can skip rack fan trays?
Negative. While the module is rated for 70°C ambient, the CS21 ASIC generates significant heat during high-speed data telegram exchanges. In a sealed SIMADYN D/TDC subrack without forced airflow, localized "heat pockets" can easily exceed 80°C, leading to communication jitter or random bus timeouts. Keep the fan tray active and the filters clean.
Cold-Start Risks: We have a -40°C storage environment. Can we power up immediately upon install?
Don't do it. The operating floor is -25°C. Moving a 0.5kg board from -40°C to a warm control room causes instant micro-condensation on the PCB traces. If you energize it before a 4-hour acclimation period, you'll likely short the 18-72V input stage or crack a ceramic capacitor due to thermal shock.
Mechanical Clearance: Does the 27.9×27.9cm size imply a non-standard subrack?
No, it's a standard 6U Eurocard. However, the 27.9cm depth is tight. When sliding the 6DD1660-0AE0 into the subrack, check for cable interference at the rear. The module is only 0.5kg—it feels light, but don't force the insertion. If the backplane connector doesn't seat smoothly, you likely have a bent pin on the subrack side.
Bus Integrity & Humidity: Is the 95% RH rating valid for coastal turbine sites?
Only if it's "non-condensing." 95% humidity in a place like Xiamen or an offshore rig is dangerous if the temperature fluctuates. The second you hit the dew point, the CS21 communication signals will degrade. Use a cabinet heater to keep the subrack internal temp at least 5°C above ambient to prevent PCB "sweating."
Communication Logic Sync: Why is my CS21 link failing to sync with the CPU module?
Check your telegram configuration in the software (SIMADYN D or TDC). The 6DD1660-0AE0 is a hardware pipe; it won't sync if the baud rate or cycle time is mismatched at the processor level. Also, inspect the fiber/copper cable length; if you're pushing the distance limits, signal attenuation will cause intermittent sync drops.
Why Choose Our Services
- The Rare Stuff: If the manufacturer discontinued it, it's probably sitting in our warehouse right now.
- Zero Guesswork: 12 months of warranty on everything. New surplus or rare obsolete—it's guaranteed to work.
- People, Not Bots: Real, full-time support that actually understands industrial tech.
- Honesty First: Our business is built on integrity. If we can't help you, we'll tell you. If we can, we'll move mountains to get it to you.
Your project matters to us. Let's keep your business running smoothly.
Miya Zheng
+86 180 2077 6792 | sales@amikon.cn
Ready for a quote? Just send me your part numbers.
Compatible Siemens Components
| SIEMENS | 6DS1606-8BA | 6EP1333-2AA01 | 6DS1224-8AA |
| SIEMENS | 6DS1618-8CA | A5E32100313 | 7UT5121-4CB01-0AA0/LL |
| SIEMENS | 6DS1703-8RR | 6AV3503-1DB10 | 7VE5120-4CA10-0A/FF |
| SIEMENS | 6AR1304-0CA00-0AA0 | 6ES7315-2EH13-0AB0 | C79451-Z1038-U13 |
| SIEMENS | 6EP1961-2BA21 | 6ES7151-1CA00-1BL0 | C98043-A7011-L6 |
| SIEMENS | 6EP1336-3BA10 | 6AV3627-1LK00-1AX0 | 6SY7010-0AB07 |
| SIEMENS | 6EP1437-2BA20 | RMS-TSIG-TZ-C | 6ES7450-1AP00-0AE0 |
| SIEMENS | 6ES7288-3AQ02-0AA0 | 6DL3100-8AC | 6AV6644-0AB01-2AX0 |
| SIEMENS | 6ES7407-0DA01-0AA0 | QLCCM24AAN | 39ACM24BAN 16139-76/09 |
| SIEMENS | 6ES7135-0HF01-0XB0 | 39EAMCBN A5E00282025/05 | 6DD1681-0AE2 |
