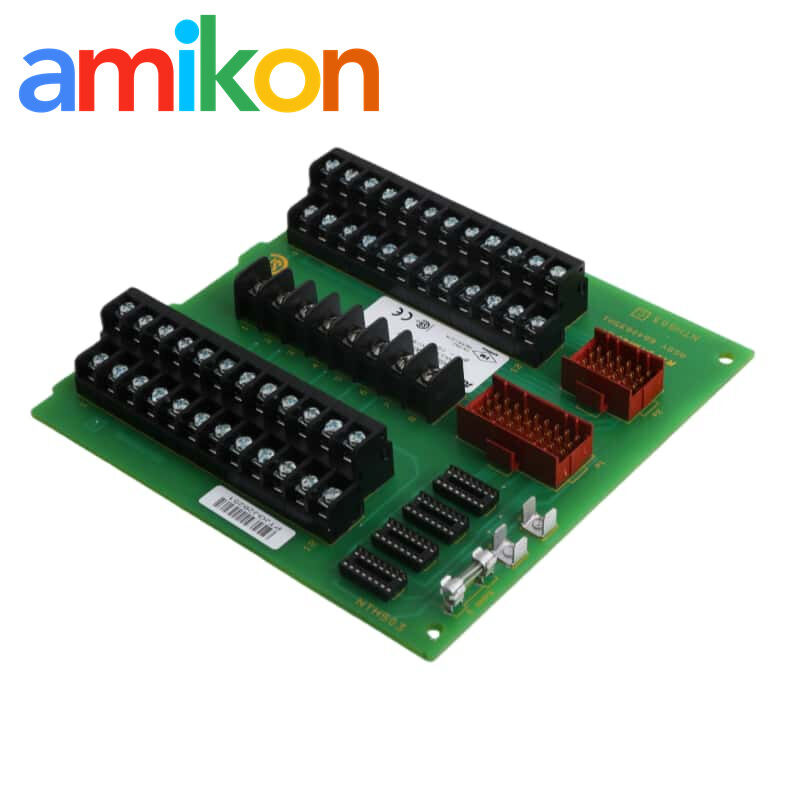

ABB NTHS03 Hydraulic Servo Termination Unit with 24 V DC Power Supply for Precise Actuator Movement
ABB NTHS03 Hydraulic Servo Termination Unit with 24 V DC Power Supply for Precise Actuator Movement
24 V DC Power Supply Termination Unit
1500 V AC Isolation Hydraulic Servo Termination Unit
Precise Actuator Movement ABB NTHS03
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
NTHS03
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
18x17.6x2.5cm
Input:
±10 V DC, 4–20 MA
Power Supply:
24 V DC
Power Consumption:
≤ 15 W
Isolation:
1500 V AC
Operating Temperature:
-25°C To +70°C (-13°F To +158°F)
Humidity:
5–95% Non-condensing
Highlight:
24 V DC Power Supply Termination Unit
,1500 V AC Isolation Hydraulic Servo Termination Unit
,Precise Actuator Movement ABB NTHS03
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
ABB NETA-01 Ethernet Adapter Module with 100Mbps Data Transfer Rate for Remote Monitoring
Get Best Price
Video
ABB DI650 3BHT300025R1 32-Channel Digital Input Module with 24 VDC and Reverse Polarity Protection
Get Best Price
CONTACT US
Contact Now
Product Description
The NTHS03 Hydraulic Servo Termination Unit is a Harmony rack I/O device used in the Symphony Enterprise Management and Control System. It provides the signal connection between an IMHSS03 Hydraulic Servo Module and a hydraulic servo valve, I/H converter, or linear variable differential transformer.
The IMHSS03 module is a position control module. Through this module, a rack controller controls a hydraulic actuator by regulating the current to the servo valve, which causes a change in actuator position. Actuator feedback is provided by a linear variable differential transformer and returned to the IMHSS03 module through the NTHS03 termination unit.
Below shows the Harmony rack I/O architecture. A Harmony area controller and the Harmony rack controllers can use the rack I/O module and termination units for I/O interface.
Used in hydraulic valve positioning systems associated with turbine and actuator control. The ABB NTHS03 Hydraulic Servo Termination Unit serves as the interface between the hydraulic servo control module and field devices, supporting stable signal transmission and feedback.
- Steam turbine throttle valves and control valves
- Gas turbine fuel valve positioning
- Inlet guide vane control systems
- Nozzle angle positioning applications
Designed for applications where precise actuator movement and reliable position feedback are required. Suitable for continuous operation in industrial turbine control environments.
- Remove the safety shield from the field termination panel.
- Insert the circuit board tabs into the correct slots in the termination panel standoffs. Slide the circuit board straight into position as shown.
- Fasten the termination unit circuit board to the field termination panel using two No. 10 thread-forming screws.
