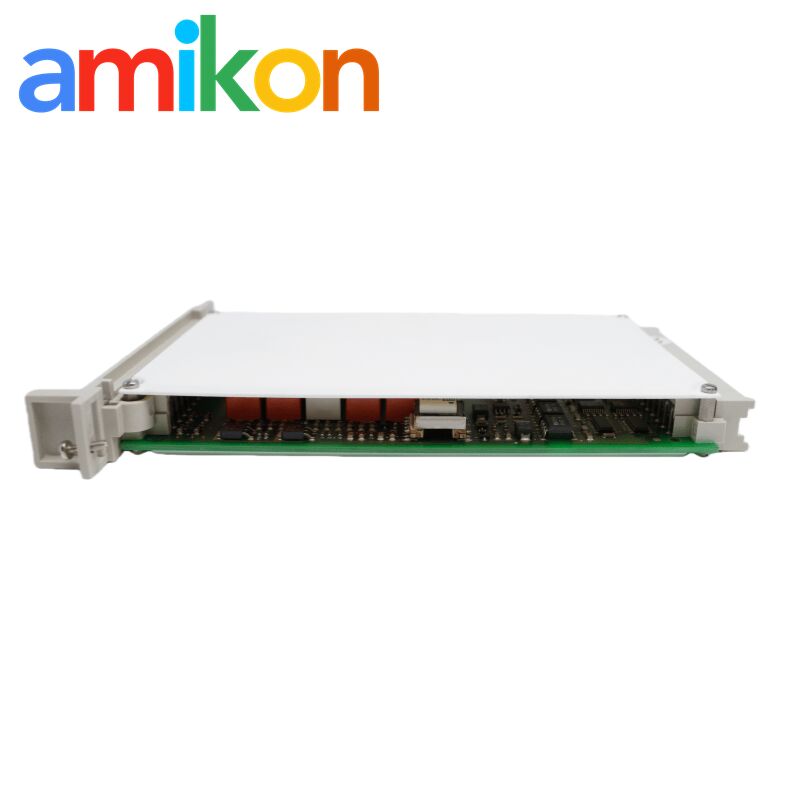

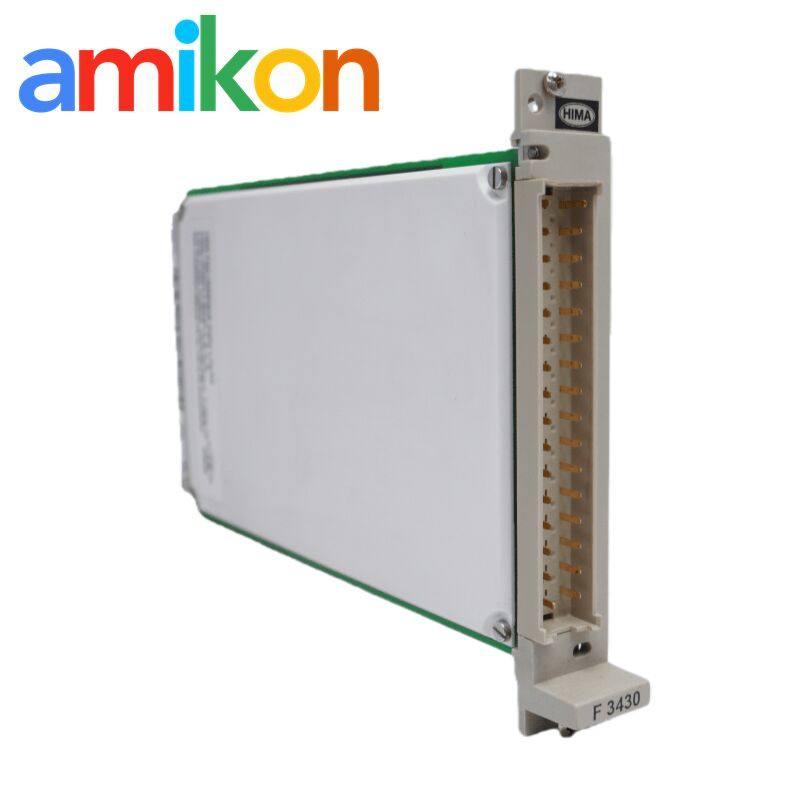

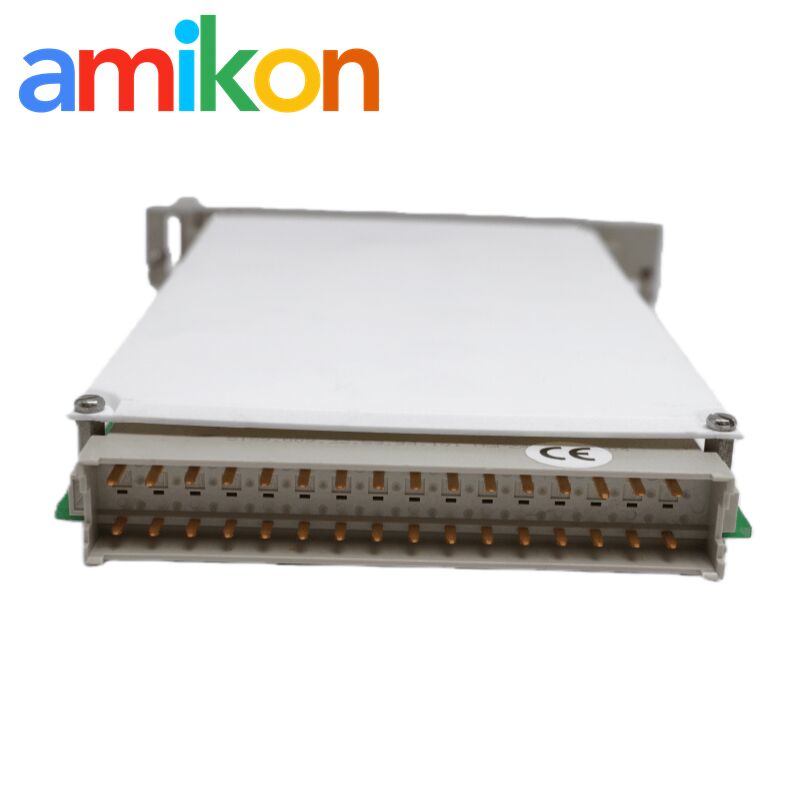

F3430 Hima Relay Module with Gold-Flashed Silver Alloy Contacts 1ms Bounce Time
F3430 Hima Relay Module with Gold-Flashed Silver Alloy Contacts 1ms Bounce Time
Gold-Flashed Silver Alloy Contacts Hima Relay Module
1ms Bounce Time F3430 Relay Module
500 VA AC Switching Capacity Safety Relay Module
Place of Origin:
Germany
Brand Name:
Hima
Model Number:
F3430
Contact Us
Request A Quote
Product Details
Product Model:
F3430
Product Parameters:
4-fold Relay Module, Safety Related
Country Of Origin:
Germany
Place Of Shipment:
Xiamen, China
Manufacturer:
Hima
Estimated Shipping Size:
2x19x12.7cm
Weight:
0.28 Kg
Relay Output:
NO Contact, Dust-tight
Highlight:
Gold-Flashed Silver Alloy Contacts Hima Relay Module
,1ms Bounce Time F3430 Relay Module
,500 VA AC Switching Capacity Safety Relay Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Hima Central Module F8651E with -40°C to +70°C Operating Temperature 2G Vibration Resistance
Get Best Price
Video
F7541 HIMA Connecting Module with SIL 3 Safety Integrity 16 Channel Count and 500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
Technical Specifications
Contact material:
Silver alloy, gold-flashed
Switching time approx:
8 ms
Reset time approx.:
6 ms
Bounce time approx.:
1 ms
Switching current:
10 mA ≤ I ≤ 4 A
Life, mechanical:
≥ 30 × 10⁶ switching operations
Life, electrical:
≥ 2.5 × 10⁵ switching operations with full load
Switching capacity AC max.:
500 VA, cos ϕ > 0.5
Switching capacity DC:
Up to 30 V DC: max. 120 W
Space requirement:
4 TE
Operating Data:
5 V DC: < 100 mA, 24 V DC: < 120 mA
Application Fields & Technical Advantages
The F3430, characterized by its Gold-Flashed Silver Alloy contacts and ultra-low 1ms bounce time, is engineered for environments where signal integrity and functional safety are non-negotiable. Its application fields are defined by the need for high-speed, high-availability galvanic isolation.
- Safety Instrumented Systems (SIS) & ESD Loops
In Oil, Gas, and Petrochemical "Upstream to Downstream" operations, the F3430 acts as the critical interposing relay between safety logic and final control elements.
Operational Context: The 8ms switching/6ms reset response allows for near-instantaneous Emergency Shutdown (ESD) execution.
Technical Advantage: The gold-flashed contacts ensure that even in low-demand modes (where the relay stays inactive for months), oxidation does not compromise the circuit when a trip is eventually triggered. - Power Generation & Grid Protection Interfacing
Utilized within Turbine Control Systems (TCS) and High-Voltage Switchgear interfacing.
Operational Context: Managing signals between decentralized control units and power-heavy actuators.
Technical Advantage: With a 500 VA AC / 120 W DC switching capacity and a cos φ > 0.5 rating, the F3430 is robust enough to handle the inductive back-EMF common in power plant relay logic without premature contact degradation. - SIL-Rated Rail Signaling & Interlocking
Deployed in railway infrastructure for trackside signaling, point machine control, and level crossing safety logic.
Operational Context: High-frequency switching environments requiring extreme mechanical longevity.
Technical Advantage: The module's mechanical lifespan of ≥ 30 × 10⁶ operations is specifically suited for the high-duty cycles of rail interlocking, where the cost of maintenance downtime far exceeds the cost of the hardware.
