ICS Triplex T8830 Analogue Input Field Termination Assembly with 40 Input Channels, 24 V DC Power

ICS Triplex T8830 Analogue Input Field Termination Assembly with 40 Input Channels, 24 V DC Power

40 input channels FTA

24 V DC Field Termination Assembly

DIN rail mounting Analogue Input Field Termination Assembly

Place of Origin:

USA

Brand Name:

ICS triplex

Model Number:

T8830

Contact Us
Request A Quote
Product Details
Voltage Range:
18 Vdc To 32 Vdc
Maximum Current (Field Supply):
50 MA (fused) Per Loop
Power Consumption (Field Supply):
0.25 W (LED Power Indicator)
Operating Temperature:
0 °C To +60 °C (+32 °F To +140 °F)
Non-operating Temperature:
-25 °C To +70 °C (-13 °F To +158 °F)
Relative Humidity Range (operating, Storage And Transport):
10 % – 95 %, Non-condensing
Country Of Origin:
USA
MOQ:
1 Piece
Highlight:

40 input channels FTA

,

24 V DC Field Termination Assembly

,

DIN rail mounting Analogue Input Field Termination Assembly

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description

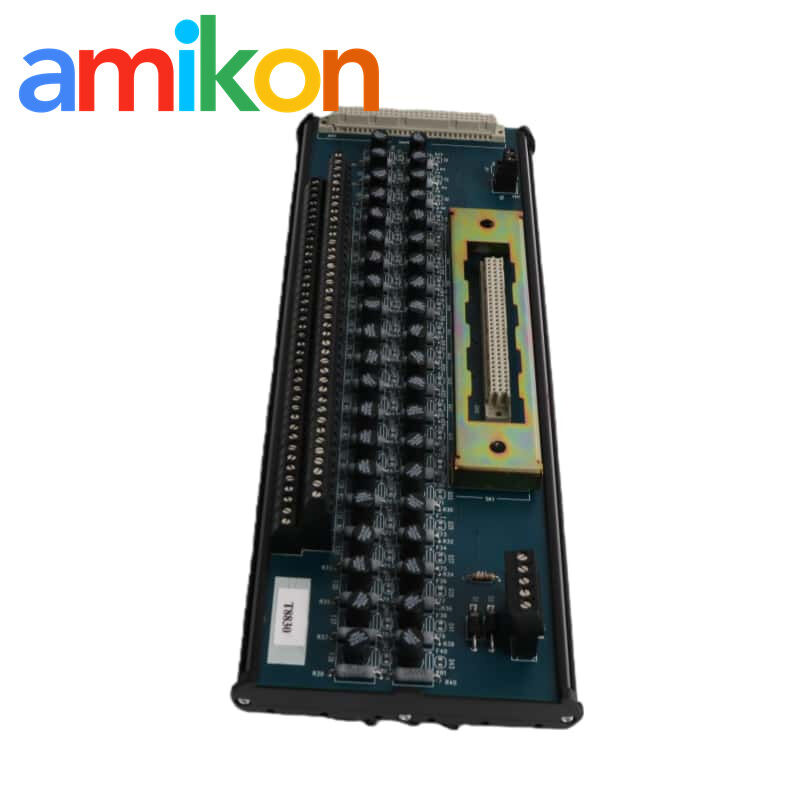

ICS Triplex T8830 Analogue Input Field Termination Assembly with 40 Input Channels, 24 V DC Power 0
The T8830 Analogue Input Field Termination Assembly (FTA) provides termination for up to 40 analogue input channels from various field devices. The field supply is derived from dual 24 V DC feeds, which are commoned via diodes on the FTA. A green LED indicates the presence of the power supply, which is then distributed to each channel. The field supply is limited by a 50 mA fuse, protecting the field loop from overcurrent. The voltage developed across a 250 Ω resistor due to the incoming analogue signal is fed directly to the analogue input module.
The connection between the 40-channel input module and the FTA is terminated at the 96-way socket SK1. SmartSlot (Version 1) signals from the module are also connected via SK1. The SmartSlot connector SK2, another 96-way socket, is not used in systems employing SmartSlot Version 2. This configuration ensures reliable signal routing and compatibility with the Trusted System architecture.
The dual DC field power supplies connect to the FTA through a 5-way terminal block (PWR TB). The 40 field input signals are connected via 2-wire arrangements, terminated on twelve 3-way terminal blocks and two 2-way terminal blocks. The design provides organized wiring, clear signal separation, and simplified installation, supporting safe and efficient integration into Series 90-30 PLC systems.
ICS Triplex T8830 Analogue Input Field Termination Assembly with 40 Input Channels, 24 V DC Power 1

Key Features and Specifications
Channel Capacity & Signal Compatibility
  • 40 input channels per FTA
  • Supports industry standard 2-wire field devices
  • Accepts analogue signals from a variety of field devices
Power & Protection
  • Operates at 24 V DC
  • Fused field power supply for each channel limits current
  • On-board LED provides indication of field power supply integrity
  • Dual 24 V DC feeds commoned via diodes for reliable distribution
Connectivity & Installation
  • Standard DIN rail mounting for simple integration
  • SmartSlot connection supports "one-to-many" hot replacement of input modules
  • Hinged-door insert available for wiring and circuit identification
  • Organized termination via 96-way sockets and terminal blocks
Applications
  • Industrial automation: Reliable analogue signal acquisition
  • Machine and process control: Flexible integration into distributed PLC architectures
  • Maintenance & monitoring: LED indicators and SmartSlot hot-swappable modules simplify troubleshooting
ICS Triplex T8830 Analogue Input Field Termination Assembly with 40 Input Channels, 24 V DC Power 2

Ordering Information
THE STOCK: Ready now. Ships within 3 days of your order.
THE DEAL: Tiered pricing. The bigger your order, the better your bottom line.
THE MOVE: Priority shipping via DHL, TNT, and FedEx.
Direct service. Real-world results.
Miya Zheng | Sales Manager @ Amikon
