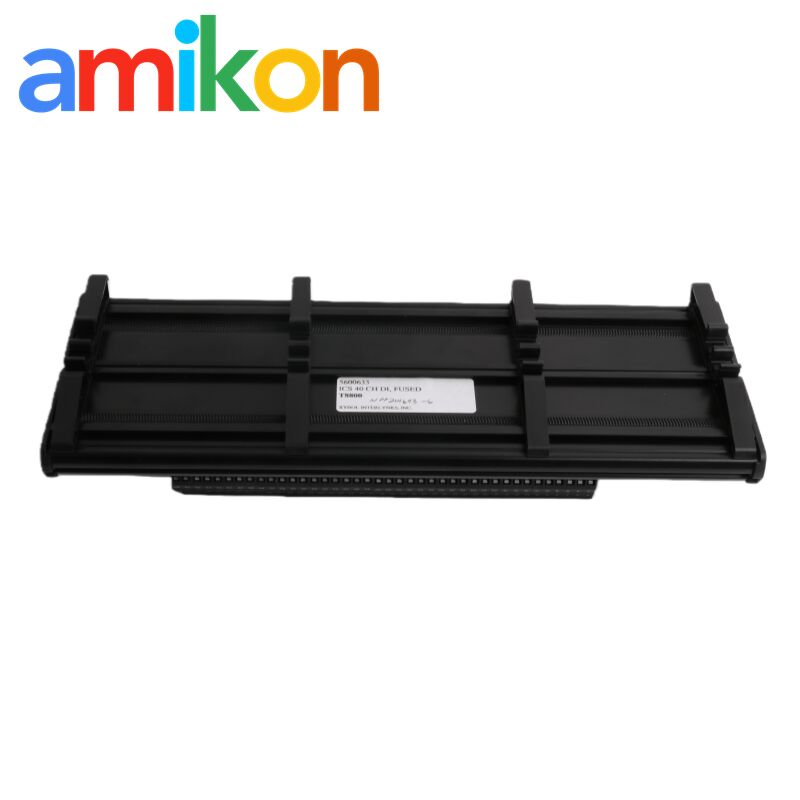

ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
40 input channels FTA
24 V DC Termination Assembly
DIN rail mounting Digital Input Field Termination Assembly
Place of Origin:
USA
Brand Name:
ICS triplex
Model Number:
T8800
Contact Us
Request A Quote
Product Details
Product Model:
T8800
Manufacturer:
ICS Triplex
Description:
Digital Input Field Termination Assembly
Place Of Shipment:
Xiamen, China
Packaging:
Original New Packaging
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Country Of Origin:
USA
Highlight:
40 input channels FTA
,24 V DC Termination Assembly
,DIN rail mounting Digital Input Field Termination Assembly
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
Get Best Price
Video
ICS Triplex T8830 Analogue Input Field Termination Assembly with 40 Input Channels, 24 V DC Power
Get Best Price
CONTACT US
Contact Now
Product Description

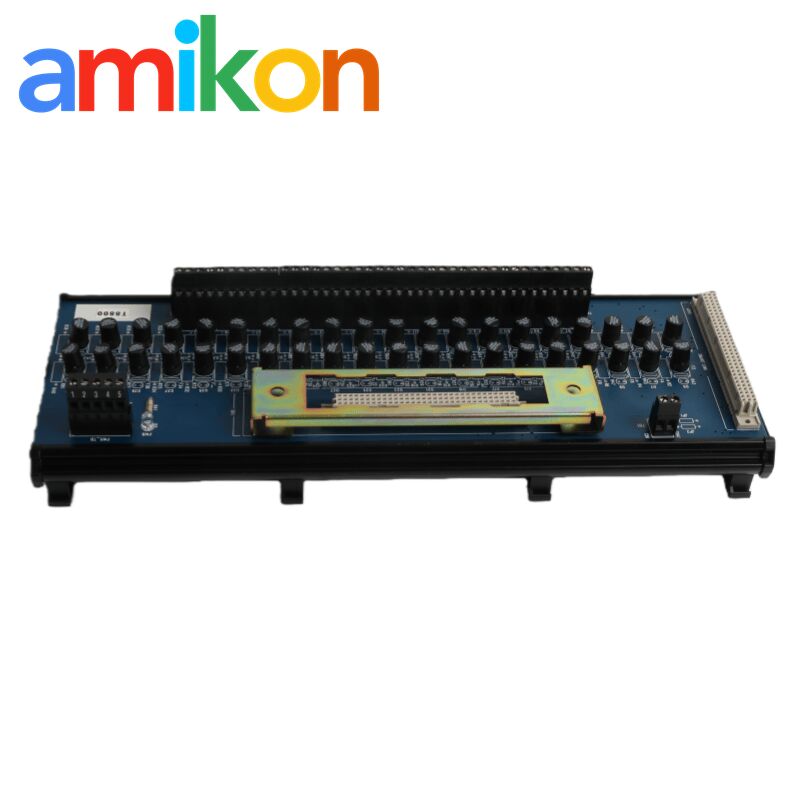

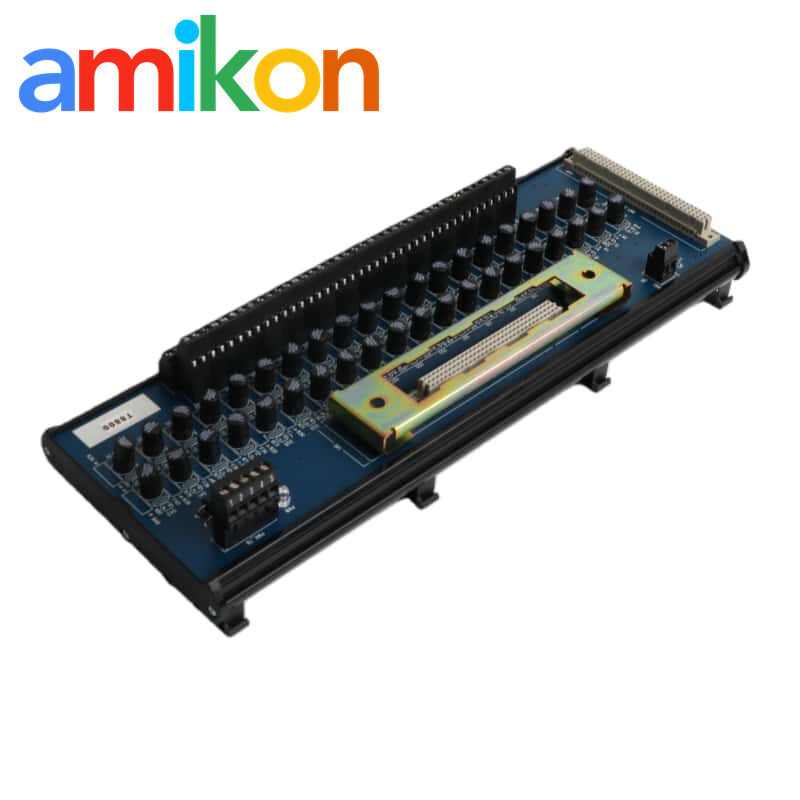

The T8800 Digital Input Field Termination Assembly (FTA) provides termination for up to 40 input channels from various field devices that generate digital inputs. The field supply is derived from dual 24 V DC feeds, which are commoned via diodes on the FTA. A green LED indicates the presence of the power supply, which is then distributed to each channel. The supply to the field is limited by a 50 mA fuse, protecting the field loop from overcurrent.
Digital signals from the field devices are fed directly to the digital input module. Line monitoring components, if required, provide thresholds to detect the status of the field loop or device, such as open/short circuits or alarms. The FTA ensures reliable signal conditioning and protection for the connected input module.
The 40-channel connection between the input module and the FTA is terminated at the 96-way socket SK1. SmartSlot (Version 1) signals from the module are connected via SK1, while the SmartSlot connector SK2 (also a 96-way socket) is not used in SmartSlot Version 2 systems. Dual DC field power supplies connect to the FTA through a 5-way terminal block (PWR TB), and the 40 field input signals are connected via 2-wire arrangements terminated on twelve 3-way terminal blocks and two 2-way terminal blocks.
| Specification Parameter | Technical Rating / Value |
|---|---|
| Voltage Range | 18 Vdc to 32 Vdc |
| Fuses | 40-off 50 mA |
| Maximum Current (Field Supply) | 10 mA |
| Power Consumption (Field Supply) | 0.25 W |
| Operating Temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
| Non-operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Relative Humidity Range (Operating, Storage, and Transport) | 10% - 95%, non-condensing |
Key Features
- Supports 40 input channels per FTA
- Compatible with industry standard 2-wire field device connections
- Standard DIN rail mounting for easy integration
- Simple installation and connection procedures
- Operates at 24 V DC
- SmartSlot connection enables "one-to-many" hot replacement of input modules
- Fused field power supply for each channel
- On-board LED indicates the integrity of the field power supply
