Foxboro FBI10E P0972AJ Fieldbus Isolator with 10 Mbps Ethernet Fieldbus, Galvanic Isolation

Foxboro FBI10E P0972AJ Fieldbus Isolator with 10 Mbps Ethernet Fieldbus, Galvanic Isolation

10 Mbps Ethernet Fieldbus Isolator

Galvanic Isolation Fieldbus Isolator

Supports 24 FBMs Foxboro Module

Place of Origin:

USA

Brand Name:

FOXBORO

Model Number:

FBI10E P0972AJ

Contact Us
Request A Quote
Product Details
OPERATING CURRENT AT 26 V Dc:
350 MA, Maximum
POWER DISSIPATION AT 42 V Dc:
7.5 W, Maximum
Operating TEMPERATURE:
0 To 60°C (32 To 140°F)
RELATIVE HUMIDITY:
5 To 95% (noncondensing)
ALTITUDE:
-300 To +3,000 M (-1,000 To +10,000 Ft)
Mechanical Vibration:
0.5 G At 5 To 500 Hz
Mass:
0.3 Kg (0.7 Lb)
Manufacturer:
FOXBORO
Highlight:

10 Mbps Ethernet Fieldbus Isolator

,

Galvanic Isolation Fieldbus Isolator

,

Supports 24 FBMs Foxboro Module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description

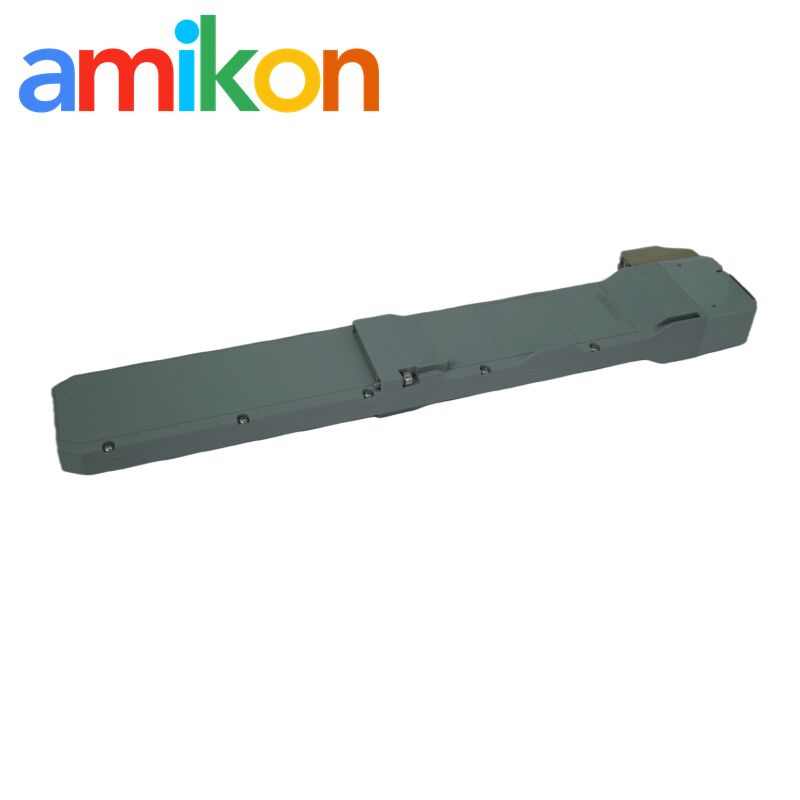

Foxboro FBI10E P0972AJ Fieldbus Isolator with 10 Mbps Ethernet Fieldbus, Galvanic Isolation 0
The FBI10E Fieldbus Isolator enables the Control Processor 60 (CP60) to communicate seamlessly with Y-Module form factor Fieldbus Modules (FBM01, FBM02, etc.). It performs signal conversion between the 10 Mbps Ethernet Fieldbus signals used by the CP60 and the HDLC signals required by the Y-Module form factor FBMs.
The FBI10E supports communication with up to 24 FBMs while providing galvanic isolation between the Ethernet Fieldbus and the connected FBMs, ensuring reliable and electrically isolated network operation.

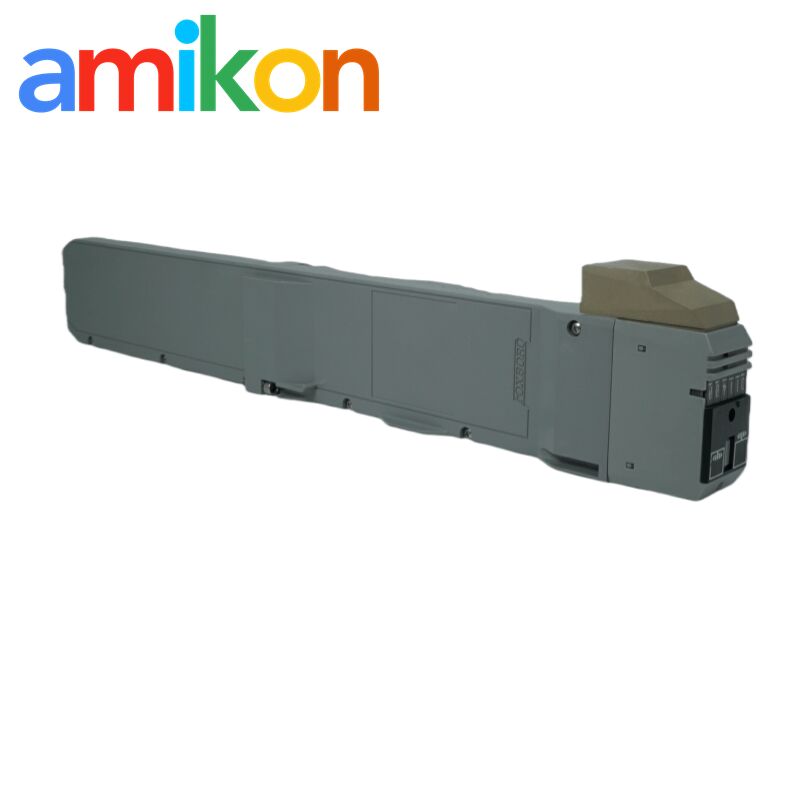

Foxboro FBI10E P0972AJ Fieldbus Isolator with 10 Mbps Ethernet Fieldbus, Galvanic Isolation 1
Feature Specification / Description
Form Factor Half-size Y-Module
Direct Installation Field Enclosure 4, 1x8 FBM, 1x12 FBM
Indirect Installation Via Y-adapter in Industrial Enclosures 16 & 32, Industrial Metal Enclosures, Field Enclosure 8
Status Indicators Front-mounted LEDs provide visual status for module functions
Redundant Configurations Installed in pairs: one for "A" portion, one for "B" portion of redundant Fieldbus
Implementation Reference Typical installation shown in below
Foxboro FBI10E P0972AJ Fieldbus Isolator with 10 Mbps Ethernet Fieldbus, Galvanic Isolation 2 Foxboro FBI10E P0972AJ Fieldbus Isolator with 10 Mbps Ethernet Fieldbus, Galvanic Isolation 3
