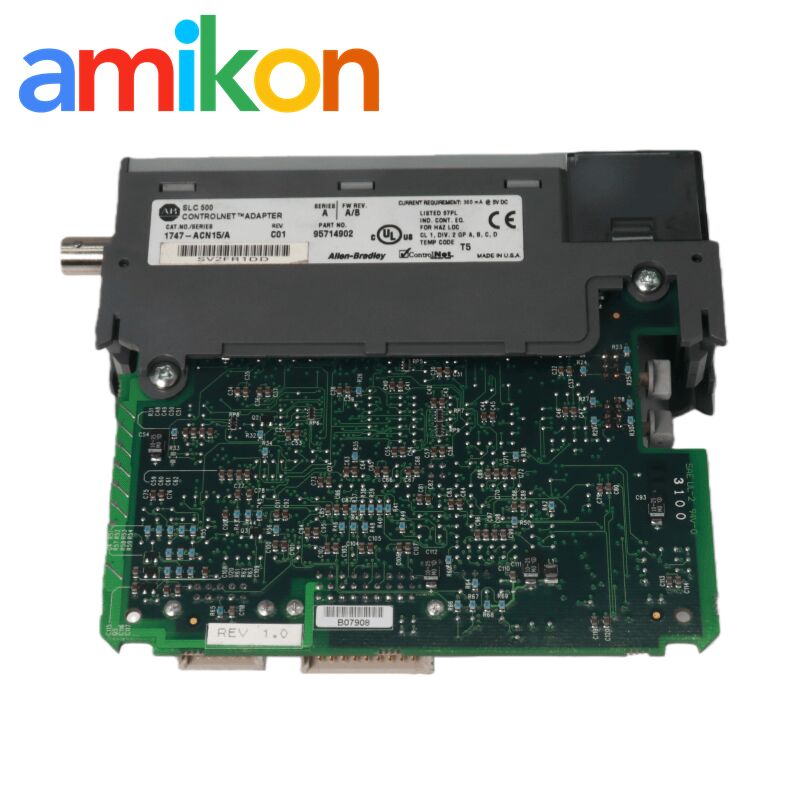

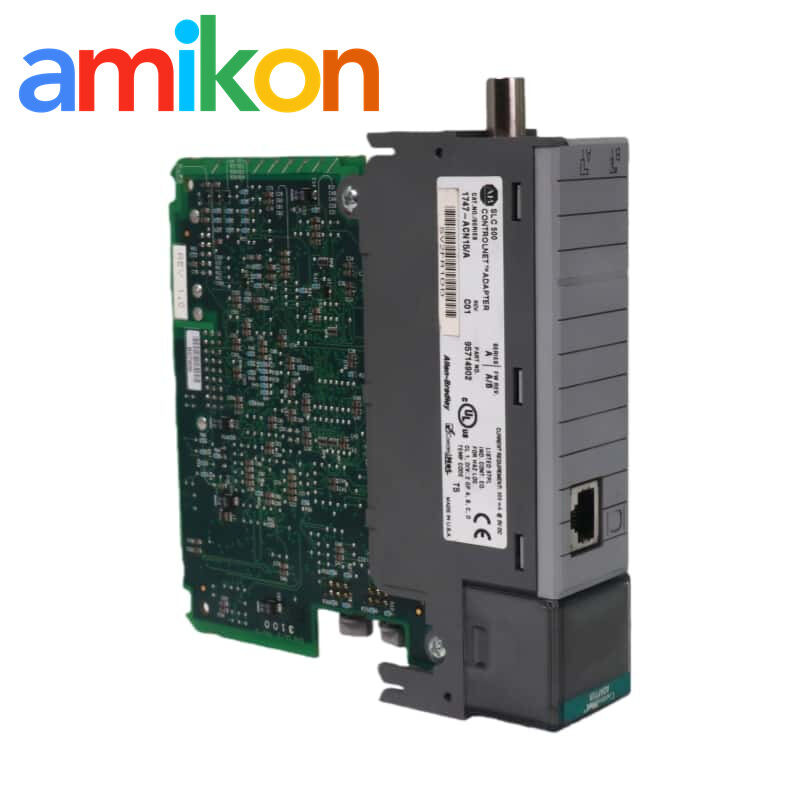

Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
ControlNet I/O Adapter Module
High-Speed Data Transfer Adapter Module
Diagnostic Messaging ControlNet I/O Adapter
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1747-ACN15
Contact Us
Request A Quote
Product Details
Place Of Shipment:
Xiamen, China
Country Of Origin:
USA
Estimated Shipping Size:
3.6x13x15.8cm
Weight:
0.18 Kg
Communication Port:
ControlNet I/O Adapter
Backplane Current (5 Volts):
0.9 A
Power Dissipation:
5 Watts
Thermal Dissipation:
17.06 BTU/Hr
Highlight:
ControlNet I/O Adapter Module
,High-Speed Data Transfer Adapter Module
,Diagnostic Messaging ControlNet I/O Adapter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
Overview
Controls remote 1746 I/O via the ControlNet network and is compliant with CI specification for deterministic message exchange.
Key Functionalities
- High-Speed Data Transfer: Supports real-time, deterministic communication for time-critical applications
- Diagnostic Messaging: Provides advanced network and module diagnostics for troubleshooting and system monitoring
- Network Access Port (NAP): Enables local access for configuration, monitoring, and network management
Applications
- Distributed I/O control in industrial automation systems
- Remote monitoring and troubleshooting of 1746 I/O modules
- Real-time control applications requiring high-speed, reliable data exchange
Module Components
| Component | Function |
|---|---|
| ControlNet Status Indicators | Displays module and network communication status |
| Status Display | Provides diagnostics and operational feedback |
| Network Access Port (NAP) | Local configuration and monitoring without network disruption |
| ControlNet Connector | Connects module to ControlNet network |
| Module Net Address Switches | Assigns unique module address on the network |
Network Integration
For seamless integration into the ControlNet network, the 1747-ACN15 Adapter Module utilizes dedicated ControlNet connectors, providing reliable, high-speed communication with remote I/O devices. Cable connection to the module is through standard BNC connectors on the module frontplate.
