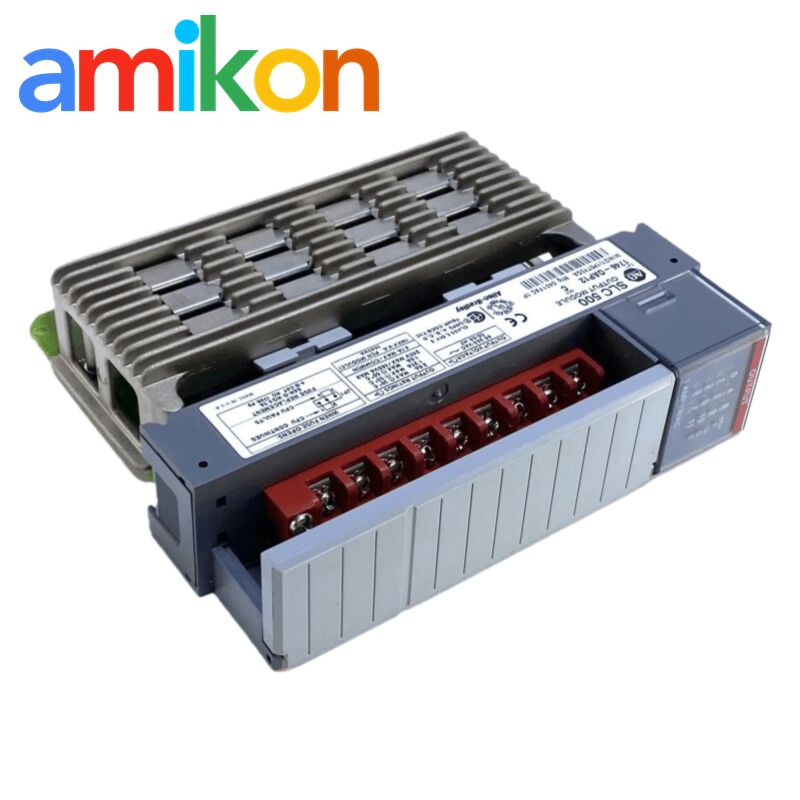

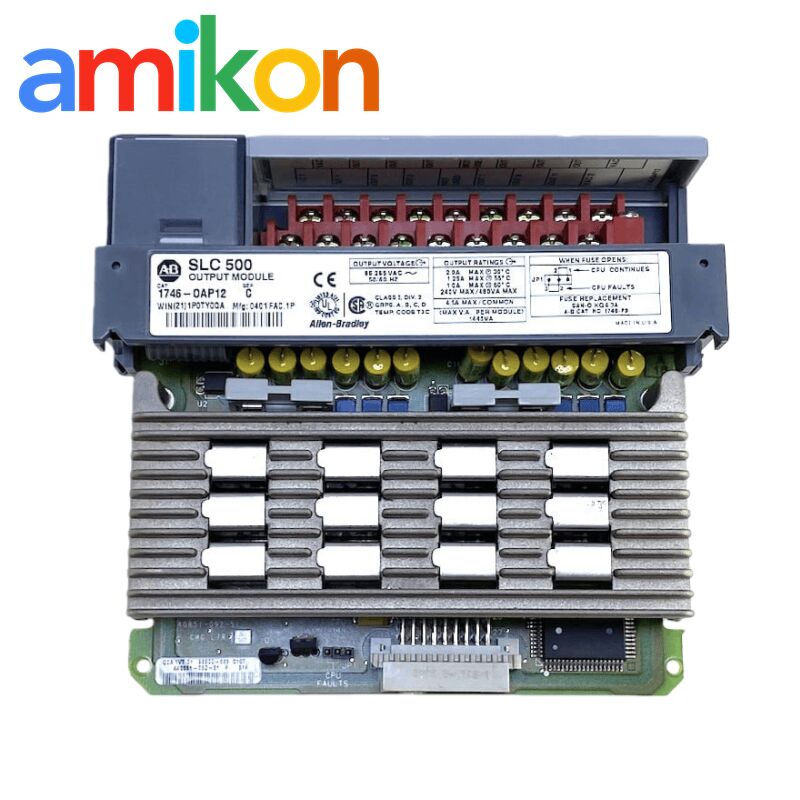

Allen Bradley 1746-OAP12 AC Output Module with 120/240V AC, 12 Output Channels and Fast Switching
Allen Bradley 1746-OAP12 AC Output Module with 120/240V AC, 12 Output Channels and Fast Switching
120/240V AC Output Module
12 Output Channels AC Output Module
Fast Switching Allen Bradley Module
Place of Origin:
USA
Brand Name:
Allen Bradley
Model Number:
1746-OAP12
Contact Us
Request A Quote
Product Details
Manufacturer:
Allen Bradley
Output Voltage:
120 / 240VAC Output
Operating Voltage Range:
85-264 VAC
Output Delay Time, OFF To ON:
11 Ms
Load Current:
10 MA
Backplane Current At 5.1 Volts:
0.370 A
Number Of Outputs:
12
Points Per Common:
6
Highlight:
120/240V AC Output Module
,12 Output Channels AC Output Module
,Fast Switching Allen Bradley Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Allen Bradley 1746-OBP16 16 Channel 24 VDC Output Module with Integrated Fuse Protection
Get Best Price
Video
Allen Bradley 1746-OB32 32 Point 24V DC Sourcing Configuration Digital Output Module
Get Best Price
Video
Allen Bradley 1756-DMD30 Drive Module and Fiber Optic Interface in Single-Slot Design
Get Best Price
Video
Allen Bradley 1747-ACN15 ControlNet I/O Adapter Module with High-Speed Data Transfer
Get Best Price
CONTACT US
Contact Now
Product Description
Technical Specifications
- 12 Output Channels - 6 points per fused common, isolated for selective operation
- Voltage & Current - 85-265V AC, 2A per point at 30°C, surge-ready
- Fast Switching - 1ms ON / 11ms OFF signal delay, minimal leakage
- Thermal & Environmental - 10.85W max heat, 0-60°C, 30G shock, 5G vibration
- Fuse Monitoring - Internal electronic fuse, optional monitoring via jumper
- Compatibility - Works with any SLC 500 processor, fault codes in S:6
Primary Applications
- AC load control for solenoids, relays, and actuators
- Redundant or fault-tolerant output configurations
- Rapid-response industrial automation requiring high reliability
- Maintenance-friendly UL/CSA-compliant fuse replacement
Fuse Protection & Safety
- Module Protection: Two fuses (one per common) guard against short circuits
- Limitation: Fuses do not prevent overloads. Overloaded output channels may damage connected devices
- Solution: Install external user-supplied fuses for overload protection
- Recommendation: Use SAN-O HT, rated per load, ≤2.0 A
