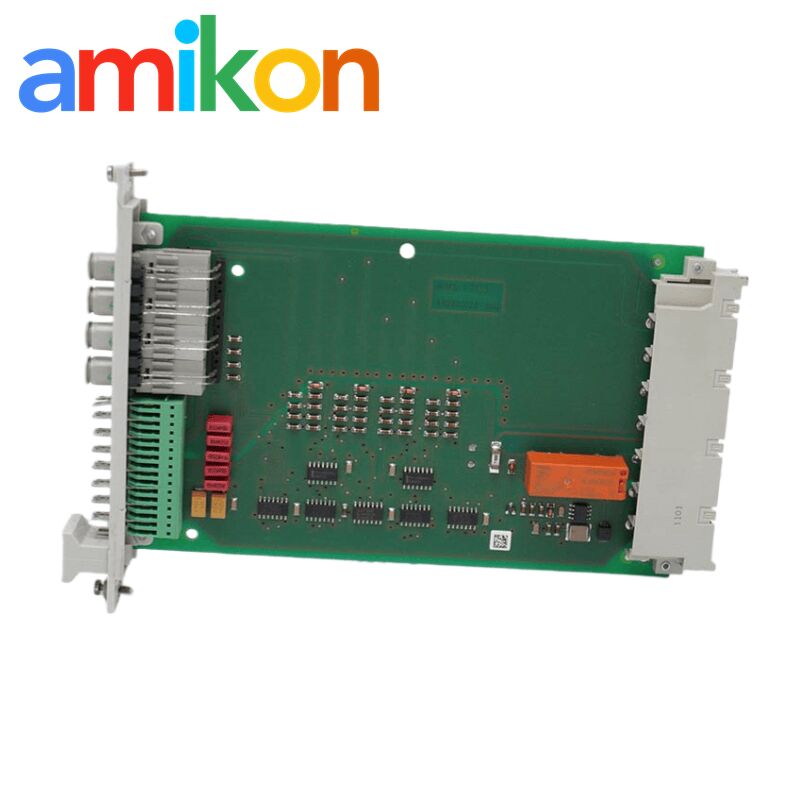

Hima F7133 4 Channel Power Distribution Module with 4 A Slow Blow Fuses
4 A Slow Blow Fuses Power Distribution Module
30 V/4 A Relay Contacts Hima F7133
4 TE Space Requirement 4 Channel Module
Place of Origin:
Germany
Brand Name:
Hima
Model Number:
F7133
Contact Us
Request A Quote
Product Details
Fuses:
Max. 4 A Slow Blow
Switching Time:
Approx. 100 Ms (relay)
Loadability Of The Relay Contacts:
30 V/4 A (continuous Load)
Residual Voltage In Case Of Fuse Tripped:
0 V
Residual Current In Case Of Fuse Tripped:
0 MA
Residual Voltage In Case Missing Supply:
Max. 3 V
Residual Current In Case Of Missing Supply:
< 1 MA
Space Requirement:
4 TE
Highlight:
4 A Slow Blow Fuses Power Distribution Module
,30 V/4 A Relay Contacts Hima F7133
,4 TE Space Requirement 4 Channel Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Hima Central Module F8651E with -40°C to +70°C Operating Temperature 2G Vibration Resistance
Get Best Price
Video
F7541 HIMA Connecting Module with SIL 3 Safety Integrity 16 Channel Count and 500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
The F7133 HIMA 4 Channel Power Distribution Module provides comprehensive line protection through four miniature fuses, each with an individual LED indicator. The internal evaluation logic continuously monitors fuse status, and the operating state of each circuit is clearly indicated by its corresponding LED on the module front.
Contact pins 1, 2, 3, 4, and L− on the front side are used to connect L+ or EL+ and L− for supplying power to I/O modules and sensor contacts. Additionally, rear terminals d6, d10, d14, and d18 provide dedicated 24 V supply for individual I/O slots, ensuring structured and reliable power distribution throughout the system.
When all fuses are correctly installed and operational, the relay contact d22/z24 remains closed. If a fuse is missing or faulty, the relay automatically de-energizes, providing clear and reliable indication of power distribution faults within the system.
Real-Time Circuit Protection & Monitoring
- Four miniature fuses with dedicated LEDs for each channel
- Internal evaluation logic continuously monitors fuse status
- Immediate visual indication of faults or blown fuses
- Ensures uninterrupted operation of connected I/O modules and sensors
Structured 24 V Power Distribution
- Front-side contacts (1-4, L−) supply I/O modules and sensor contacts
- Rear terminals (d6, d10, d14, d18) provide dedicated 24 V supply for individual I/O slots
- Supports modular, scalable, and clearly segregated power architecture
Fail-Safe Relay Integration
- Relay contact (d22/z24) remains closed only if all fuses are operational
- Automatic de-energization on missing or faulty fuses
- Enhances system integrity, fault detection, and maintenance verification
Ideal Use Cases
- Industrial safety systems
- Process automation control panels
- High-reliability distributed I/O architectures
