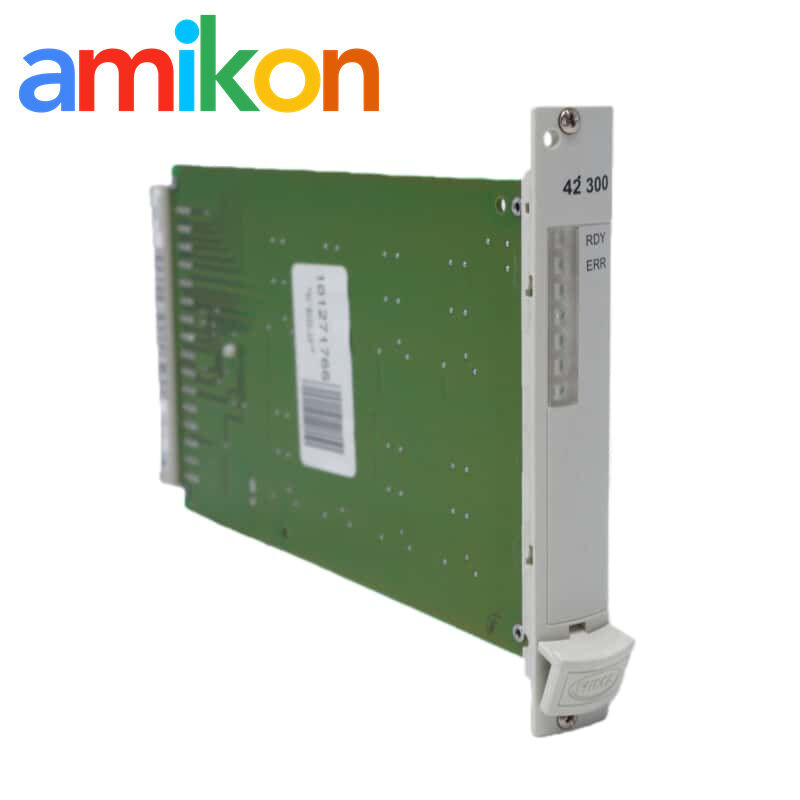

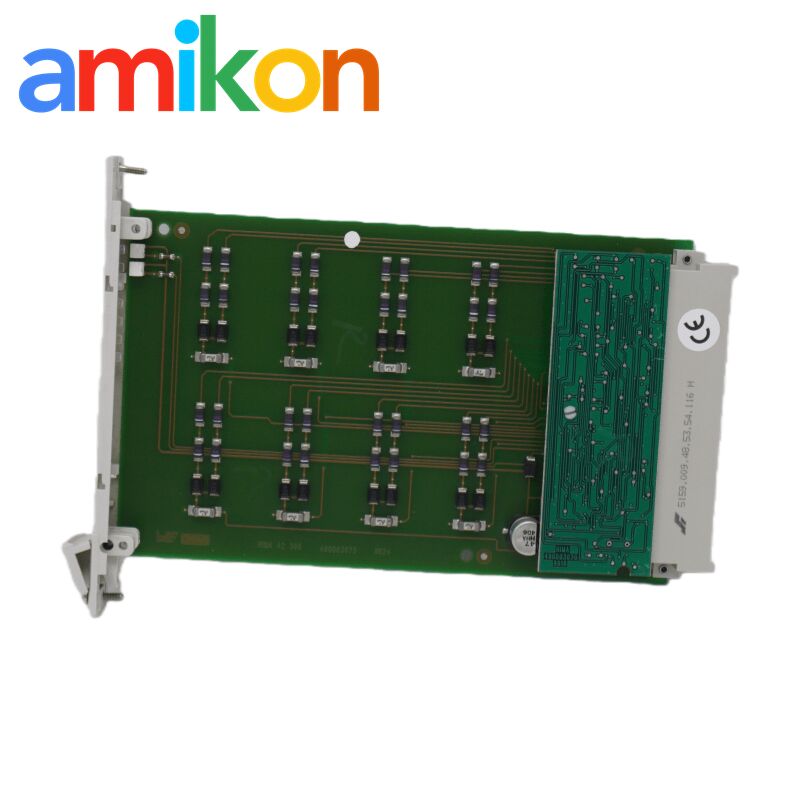

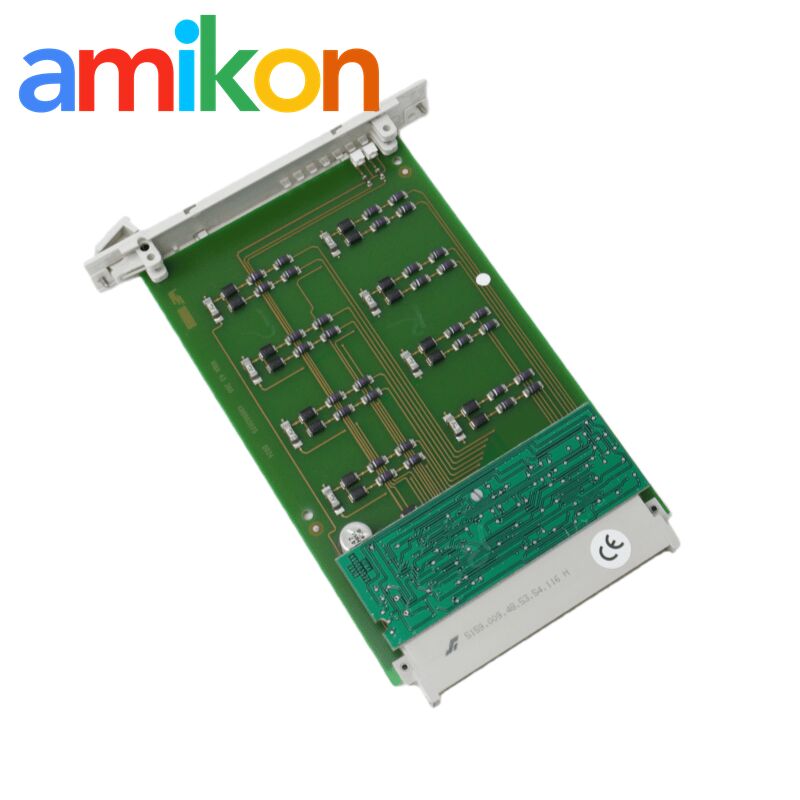

Hima 42300 Logic Function Module with 500 Function Blocks 1500V AC Isolation
Hima 42300 Logic Function Module with 500 Function Blocks 1500V AC Isolation
500 function blocks Logic Function Module
1500V AC isolation Hima Module
<100ms response time Deterministic Logic Solver
Place of Origin:
Germany
Brand Name:
Hima
Model Number:
42300
Contact Us
Request A Quote
Product Details
Vibration:
5-150Hz, 2G
Humidity:
5-95% RH (non-condensing)
Storage Temperature:
-40°C To +85°C
Operating Temperature:
-40°C To +70°C
Weight:
0.12 Kg
Estimated Shipping Size:
1.9x18.7x12.8cm
Product Parameters:
Logic Function Modules
Country Of Origin:
Germany
Highlight:
500 function blocks Logic Function Module
,1500V AC isolation Hima Module
,<100ms response time Deterministic Logic Solver
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Hima Central Module F8651E with -40°C to +70°C Operating Temperature 2G Vibration Resistance
Get Best Price
Video
F7541 HIMA Connecting Module with SIL 3 Safety Integrity 16 Channel Count and 500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
The 42300 module operates as a deterministic logic solver, engineered to execute complex Boolean algorithms (AND, OR, NOT) and state-retention sequences (Timer, Latch) within a configurable cycle time of less than 100ms. Its non-volatile memory architecture supports a logic density of up to 500 function blocks, strictly governed by an internal diagnostic regime that achieves a Diagnostic Coverage (DC) exceeding 99%. This high-availability design ensures immediate fault isolation and valid process data execution, making it the central computational node for safety-critical loops where millisecond-level decision latency is mandatory.
On the physical layer, the unit integrates a galvanically isolated I/O subsystem rated for 1500V AC, effectively decoupling field instrumentation from logic circuits to prevent ground loop interference. The module draws a nominal 5W from a standard 24V DC (±10%) bus, processing wide-range input signals (0-30V DC) while managing a hybrid output stage. This output configuration enables dual-mode actuation: direct driving of electromechanical loads via 5A relay contacts for high-power switching, or high-speed signaling to downstream controllers using 0.5A transistor outputs.
Technical Specifications
| Power Supply | 24V DC (±10%) |
| Power Consumption | 5W (typical) |
| Input Voltage Range | 0-30V DC |
| Output Type | Relay (5A) / Transistor (0.5A) |
| Isolation Voltage | 1500V AC |
| Logic Functions | AND, OR, NOT, Timer, Latch |
| Response Time | <100ms (configurable) |
| Memory Capacity | 500 function blocks |
| Diagnostic Coverage | >99% |
Downtime is the enemy. At Amikon, we're here to make sure you never stay down for long. We specialize in the nuts and bolts of automation—PLCs, DCS systems, drivers, and more. Our expertise includes resurrecting obsolete components to extend the life of your trusted systems. We serve clients globally with a quality-first philosophy, sourcing from leading manufacturers and conducting rigorous testing to ensure every component is ready to work.
- The Status: In Stock & Ready. All items are brand new, in original packaging, and available for immediate dispatch from Xiamen, China.
- The Protection: Comprehensive packaging with heavy-duty foam reinforcement for shock-proof transportation.
- The Logistics: Worldwide shipping via FedEx, DHL, TNT, or UPS with immediate tracking information.
- The Promise: Simple payment terms (100% T/T) with full 12-Month Warranty for complete peace of mind.
