Honeywell 10005/1/1 Watch Dog Module with 5 Vdc 175 mA Power for Emergency Shutdown (ESD) Systems

Honeywell 10005/1/1 Watch Dog Module with 5 Vdc 175 mA Power for Emergency Shutdown (ESD) Systems

5 Vdc 175 mA Power Watch Dog Module

Emergency Shutdown (ESD) Systems Safety Controller Module

CE

Place of Origin:

USA

Brand Name:

Honeywell

Model Number:

10005/1/1

Contact Us
Request A Quote
Product Details
ESD2 Input:
5 Vdc 10 MA
Reset Input:
24 Vdc 10 MA
ESD1 Input:
24 Vdc 5 MA
Ripple Content:
< 50 MV P-p
Power Requirements:
5 Vdc 175 MA
Space Requirements:
4 TE, 3 HE (= 4 HP, 3U)
Weight:
0.15 Kg
Estimated Shipping Size:
2x18.6x12.9cm
Highlight:

5 Vdc 175 mA Power Watch Dog Module

,

Emergency Shutdown (ESD) Systems Safety Controller Module

,

CE

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description

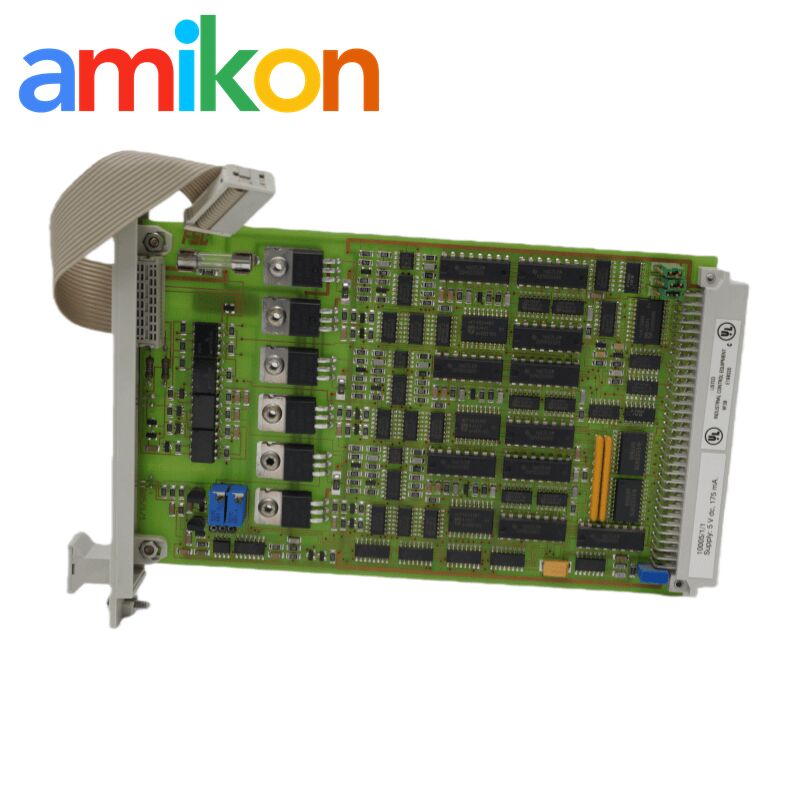

Honeywell 10005/1/1 Watch Dog Module with 5 Vdc 175 mA Power for Emergency Shutdown (ESD) Systems 0
This compact module occupies just 4 slots/TE in your Honeywell chassis and continuously monitors the Central Processing Unit's "heartbeat" signal. While the CPU operates normally, the module displays green status indicators. In the event of CPU freeze, crash, or system glitch, the module instantly activates emergency shutdown protocols.
Key Technical Specifications
  • Multi-Voltage Compatibility: Operates on 5 Vdc (175 mA consumption) with dedicated inputs for ESD1 (24 Vdc) and ESD2 (5 Vdc), eliminating the need for additional voltage converters
  • Exceptional Signal Integrity: Maintains ripple content below 50 mV for superior noise immunity and stable operation in electrically noisy environments
  • Global Compliance Certification: Pre-certified with CE, TÜV, and UL approvals for international deployment
  • Compact Design: Lightweight (0.15 kg) form factor with efficient packaging for global logistics

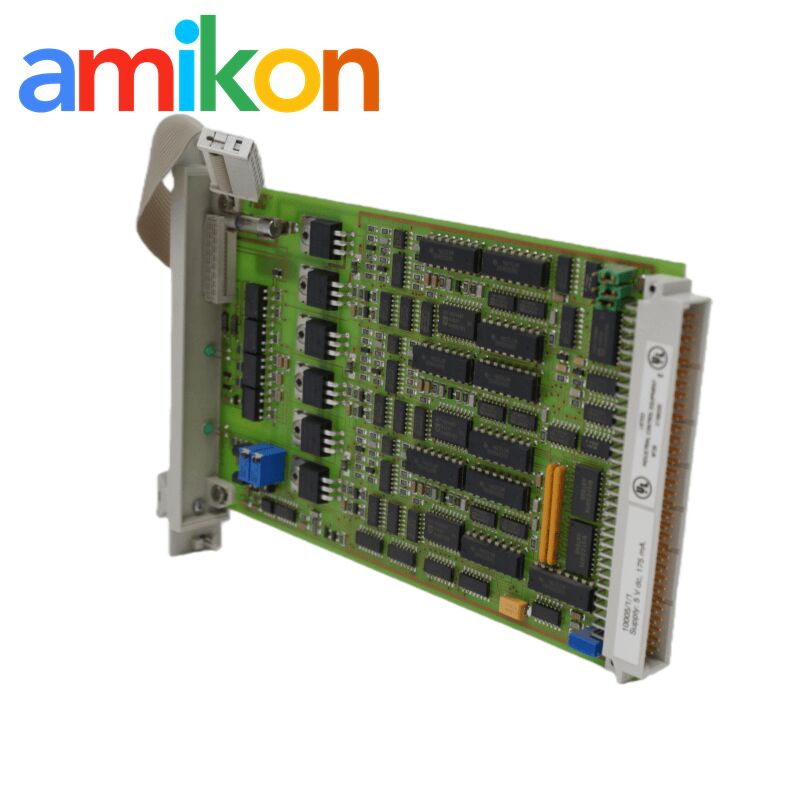

Honeywell 10005/1/1 Watch Dog Module with 5 Vdc 175 mA Power for Emergency Shutdown (ESD) Systems 1
Critical Safety Applications
Designed exclusively for Honeywell FSC and Fail-Safe Controller series in critical safety systems:
  • Emergency Shutdown (ESD) Systems: Triggers plant-wide shutdown when primary logic solver fails
  • Burner Management Systems: Forces fuel valves to safe closed position upon control system failure
  • High-Integrity Pressure Protection: Defaults process systems to safe operating mode during control loss

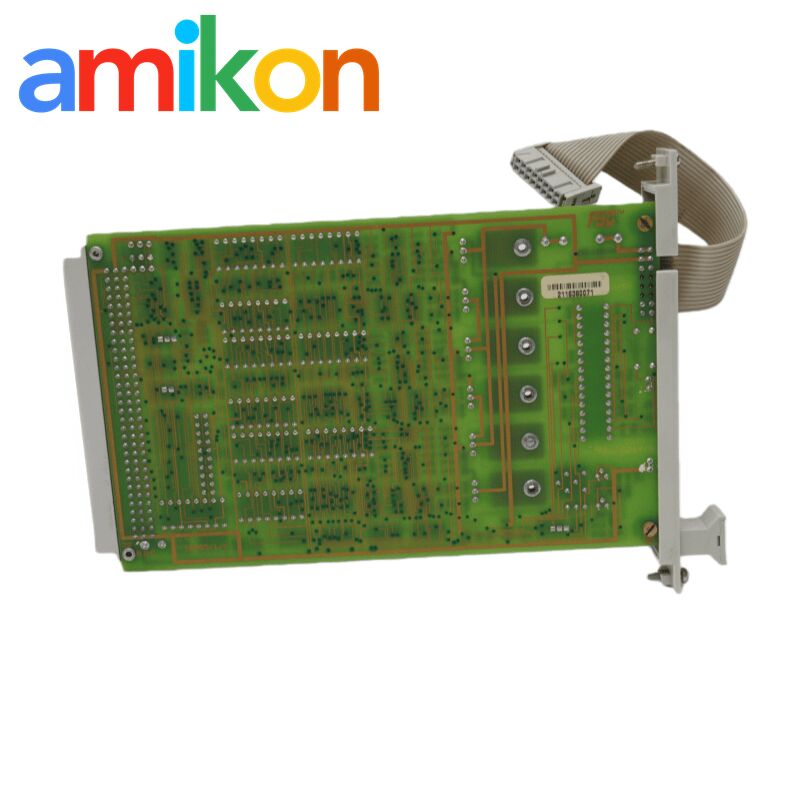

Honeywell 10005/1/1 Watch Dog Module with 5 Vdc 175 mA Power for Emergency Shutdown (ESD) Systems 2
Amikon Service Advantages
  • Expert Technical Support: Professional engineering team providing troubleshooting, maintenance guidance, and comprehensive warranty coverage
  • Discontinued Component Specialists: Extensive inventory of hard-to-find and obsolete industrial components
  • Global Market Intelligence: Competitive pricing through strategic international sourcing
  • Immediate Availability: Rapid deployment with instant technical consultation
Honeywell 10005/1/1 Watch Dog Module with 5 Vdc 175 mA Power for Emergency Shutdown (ESD) Systems 3
Ordering & Delivery Information
Lead Time 1-2 Days
Warranty 365 Days
Shipping Methods DHL, UPS, FedEx, TNT, EMS
Documentation Technical datasheets available upon request
Payment Terms T/T Accepted
