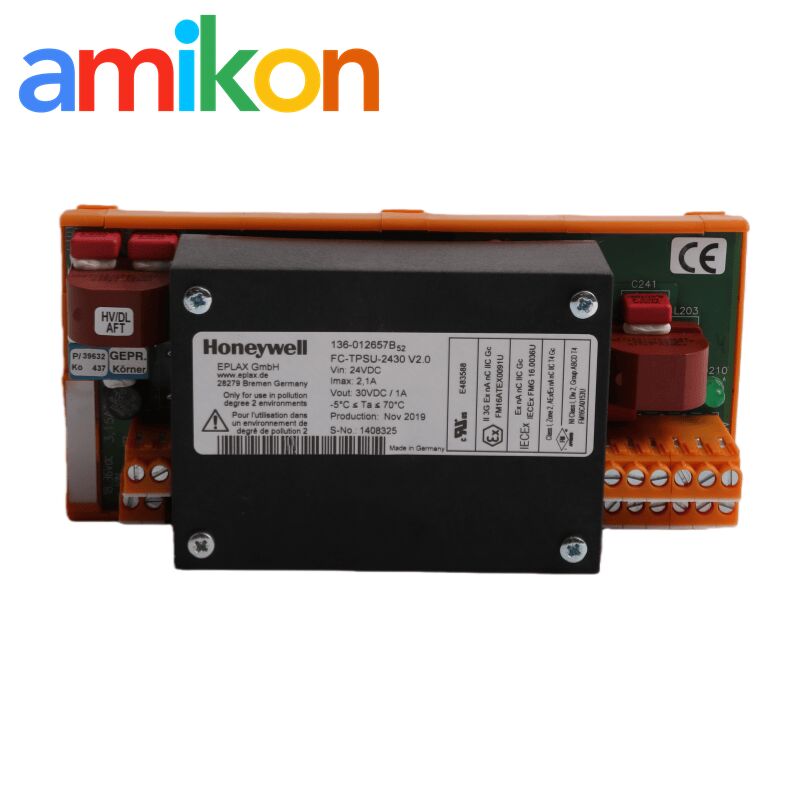

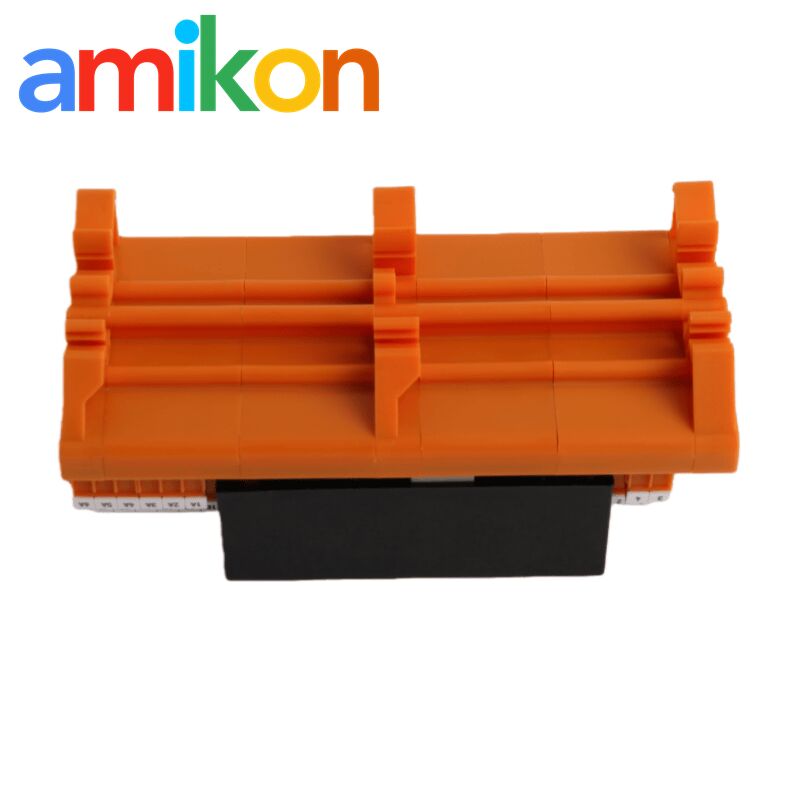

Honeywell FC-TPSU-2430 DC/DC Converter with SIL3 Safety Class 18–36V DC Input and 30V DC Output
Honeywell FC-TPSU-2430 DC/DC Converter with SIL3 Safety Class 18–36V DC Input and 30V DC Output
SIL3 Safety Class DC/DC Converter
18–36V DC Input Range Power Supply Unit
30V DC Output Honeywell Controller
Place of Origin:
USA
Brand Name:
Honeywell
Model Number:
FC-TPSU-2430
Contact Us
Request A Quote
Product Details
Description:
DC/DC Converter
Brand:
Honeywell
Part Number:
FC-TPSU-2430
Inrush Current:
≤ 4 A
Input Voltage Range:
18–36 V DC
Nominal Input Voltage:
24 V DC
Safety Class:
Up To And Including SIL3
Weight:
0.14 Kg
Highlight:
SIL3 Safety Class DC/DC Converter
,18–36V DC Input Range Power Supply Unit
,30V DC Output Honeywell Controller
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
CONTACT US
Contact Now
Product Description
Clean Power for Safety Systems
The FC-TPSU-2430 serves as the critical power source for your safety setup. This high-specification DC/DC converter transforms standard 24V plant power (operating range 18V to 36V) into a stable, isolated 30V DC output. Rated up to SIL3, it's engineered specifically for critical Safety Manager systems where reliability is paramount. This Version 1.1 represents the updated spare part essential for maintaining rack compliance and operational continuity.
Stability and Protection Features
This converter delivers exceptionally clean power with minimal ripple (less than 0.1 Vrms), ensuring noise-free operation for sensitive logic circuits. Built-in protection features include short-circuit protection and an overvoltage clamp at 33V, safeguarding your controller from power spikes. The unit carries comprehensive certifications including UL, CSA, FM, and TUV for regulatory compliance.
- Input voltage: 18V to 36V DC
- Output voltage: 30V DC isolated
- Output current: Up to 1 Amp
- Ripple: Less than 0.1 Vrms
- Overvoltage protection: 33V clamp
- Safety rating: Up to SIL3
- Certifications: UL, CSA, FM, TUV
- Dimensions: Compact 2x19cm module
- Weight: 0.14 kg
- Origin: USA manufactured
Frequently Asked Questions
"Is this the specific spare part I need for inventory?"
Yes, this is the exact Model FC-TPSU-2430 (Version 1.1) replacement for Honeywell Safety Manager systems.
"Wait, 24V In... but 30V Out? Is that a typo?"
No, this is intentional design. The converter boosts standard 24V plant power (18V-36V range) to a clean, isolated 30V DC that your safety system requires.
"Shipping logistics—is this heavy? Where is it coming from?"
The unit is lightweight (0.14 kg) and compact. We stock USA-manufactured units in Xiamen, China for faster Asian distribution.
"My input power is noisy. Will this fry my controller?"
The converter features minimal ripple (< 0.1 Vrms) and built-in overvoltage protection (33V clamp) to protect your equipment.
"Does it have the paperwork for safety audit?"
Yes, it carries UL, CSA, FM, and TUV certifications and is rated up to SIL3 for compliance requirements.
"Can I max out the load?"
The unit handles up to 1 Amp output current with short-circuit protection (< 3.3 A) and maintains long-term stability better than 0.3%.
