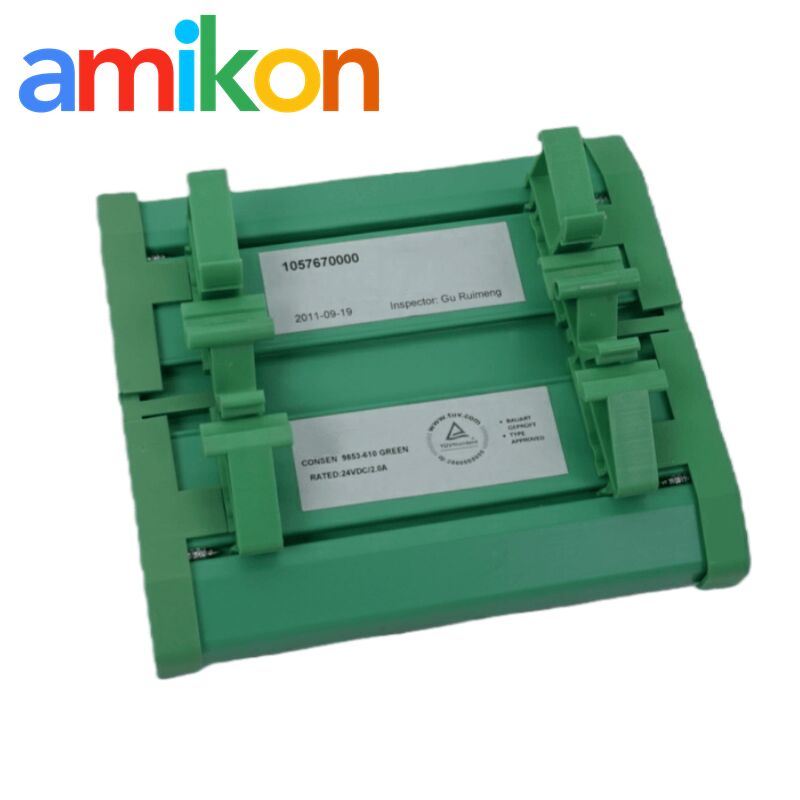

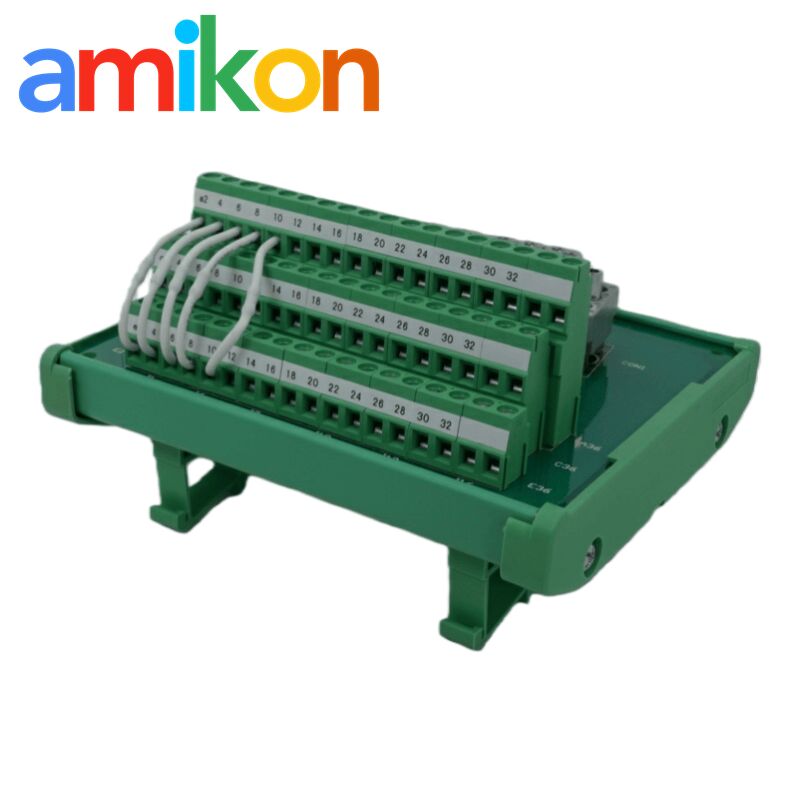

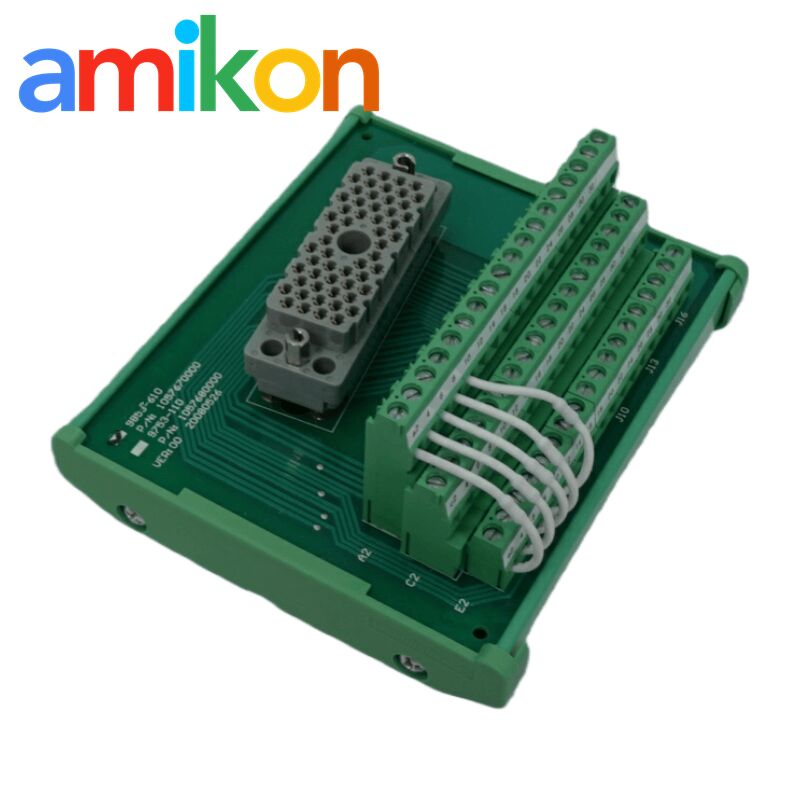

Triconex 9853-610 Analog Output Terminal Board with 8 Current Output Terminals
Triconex 9853-610 Analog Output Terminal Board with 8 Current Output Terminals
8 current output terminals Analog Output Terminal Board
4-20mA output Termination Panel
HART communication Triconex 9853-610
Place of Origin:
USA
Brand Name:
Triconex
Model Number:
9853-610
Contact Us
Request A Quote
Product Details
Panel Type:
Current Output, Basic
Points:
8
Product Model:
9853-610
Product Parameters:
Analog Output Terminal Board
Manufacturer:
Triconex
Estimated Shipping Size:
13.1cm X 8.4cm X 4.5cm
Weight:
0.14 Kg
Country Of Origin:
USA
Highlight:
8 current output terminals Analog Output Terminal Board
,4-20mA output Termination Panel
,HART communication Triconex 9853-610
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Triconex 3601E TMR DO Module with 16 Non-Commoned Outputs, Quadruplicated Voter Circuitry
Get Best Price
Video
Triconex 3703E Isolated Analog Input Module with 16 Differential Input Points 12-bit Resolution
Get Best Price
Video
Triconex 8310 Power Supply with 120 VAC/VDC Nominal Voltage for Industrial Safety Systems
Get Best Price
Video
Triconex CM3201 Communication Module with 24 V DC Input, RS-232/RS-485 Serial Ports
Get Best Price
CONTACT US
Contact Now
Product Description
The 9853-610 Termination Panel is engineered to work seamlessly with 4-20mA output modules and HART analog output interface modules. It provides a convenient and organized solution for managing analog outputs in your Tricon system.
Key Features
- 8 current output terminals (OUT) for straightforward wiring of analog signals
- 8 current return terminals (RTN) to complete each analog loop
- Terminals for connecting redundant 24 VDC power supplies, ensuring reliability and continuous operation
Applications & Benefits
The 9853-610 panel simplifies installation and maintenance by keeping analog outputs clearly labeled and easily accessible. It's ideal for systems that rely on precise analog signaling, supporting both standard 4-20mA outputs and HART communication devices.
Technical Specifications
| Input Range | 0-10 V, -10 to 10 V, 4-20 mA, 0-20 mA |
| Accuracy | <0.1% |
| Resolution | 12 bits |
| Update Rate | 100 Hz |
| Operating Temperature | -20 to 70°C |
| Storage Temperature | -40 to 85°C |
This figure illustrates how to connect an 8-point analog output module or HART analog output interface module and a 9853-610 to the field (1 of 8 module points shown).
