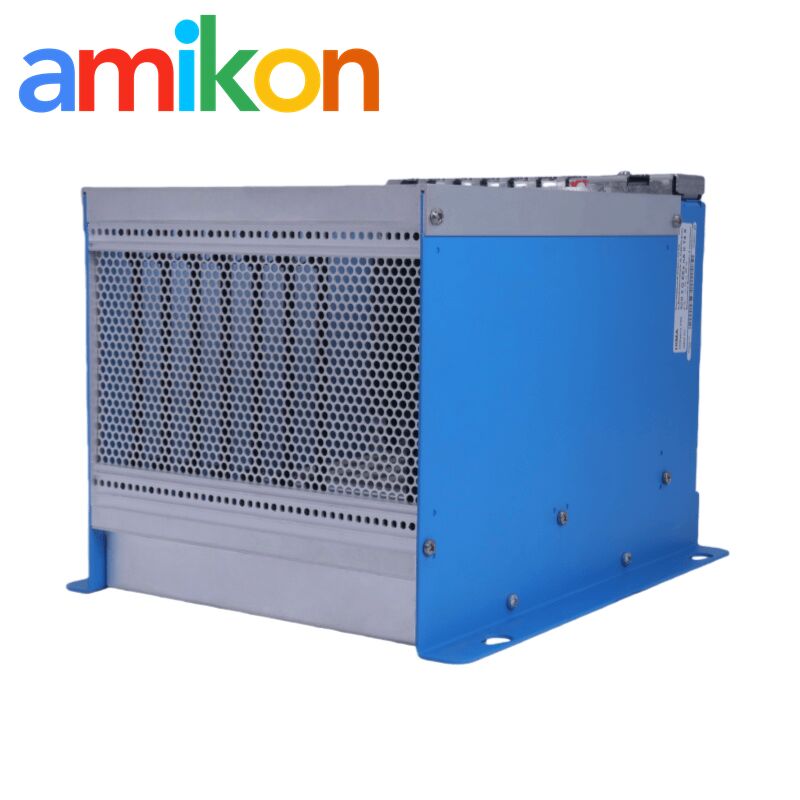

HIMATRIX F60GEH01 F60 GEH 01 Hima Safety-Related Controller with Safe Ethernet Connectivity
HIMATRIX F60GEH01 F60 GEH 01 Hima Safety-Related Controller with Safe Ethernet Connectivity
Modular System HIMatrix F60GEH01
SafeEthernet Connectivity Safety-Related Controller
24 VDC Power Supply Hima Controller
Place of Origin:
Germany
Brand Name:
Hima
Model Number:
HIMATRIX F60GEH01 F60 GEH 01
Contact Us
Request A Quote
Product Details
Manufacturer:
Hima
Product Model:
HIMATRIX F60GEH01 F60 GEH 01
Description:
Safety-Related Controller
Country Of Origin:
Germany
Packaging:
Original New Packaging
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Place Of Shipment:
Xiamen, China
Highlight:
Modular System HIMatrix F60GEH01
,SafeEthernet Connectivity Safety-Related Controller
,24 VDC Power Supply Hima Controller
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Hima Central Module F8651E with -40°C to +70°C Operating Temperature 2G Vibration Resistance
Get Best Price
Video
F7541 HIMA Connecting Module with SIL 3 Safety Integrity 16 Channel Count and 500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description

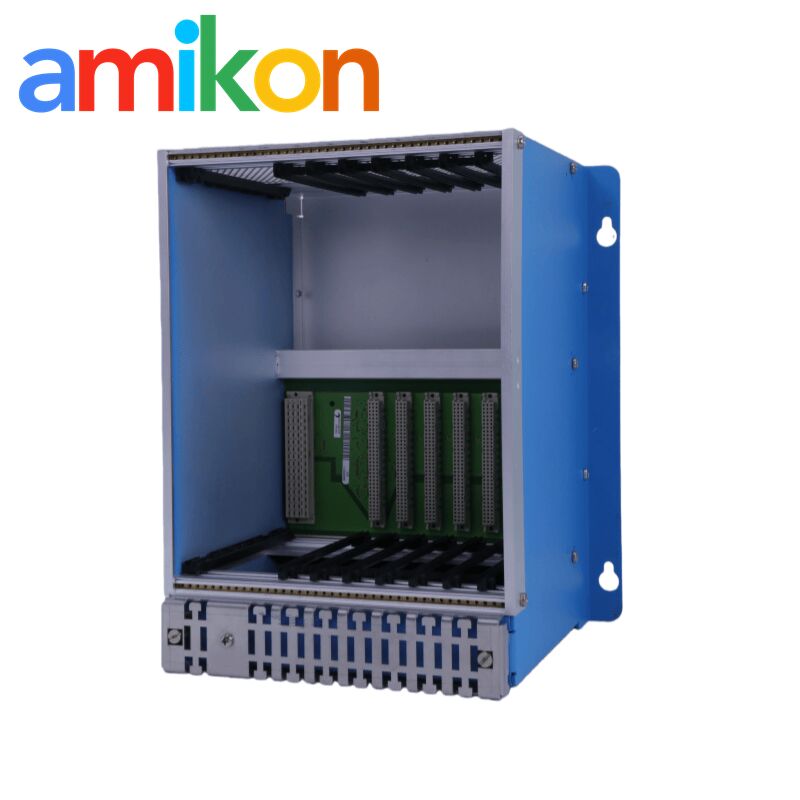

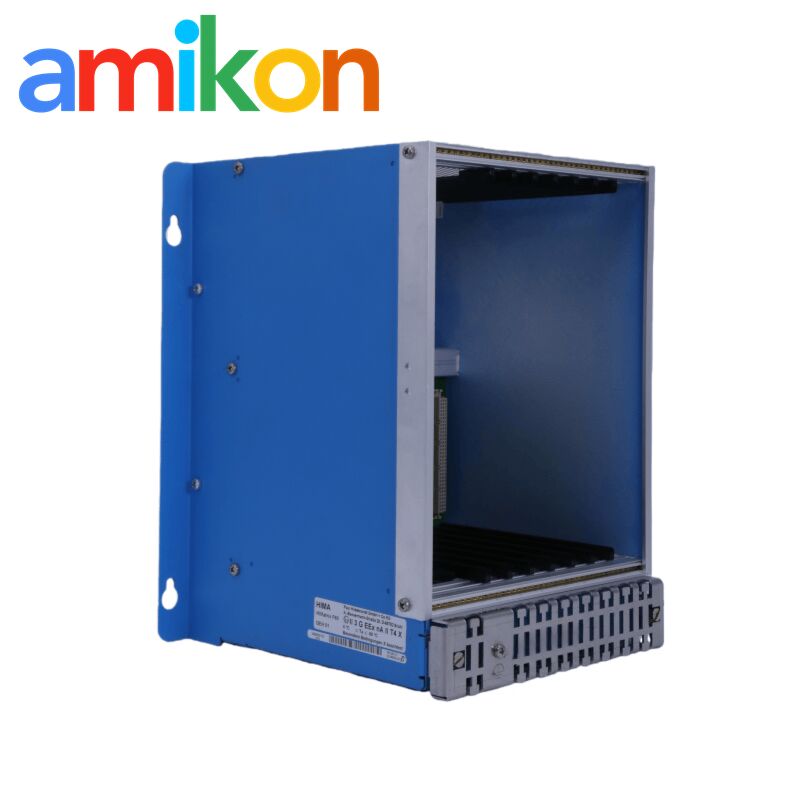

The HIMatrix F60 is a fully modular system consisting of a subrack and various modules that slide into the available slots, providing flexible configuration for safety-related control applications.
Modular System Configuration
- Slot 1: Always houses the power supply module (PS 01) - the wide slot ensures reliable system power
- Slot 2: Reserved for the CPU module (CPU 01), which manages all system operations
- Remaining Slots: Fully flexible - configure with any combination of modules to customize your system
The F60 system can also be connected to HIMatrix compact systems via SafeEthernet, enabling easy expansion and integration with other control setups.
Technical Specifications
| Designation | Value, Range of Values |
|---|---|
| Power Supply Module | 24 VDC, -15%...+20%, rpp ≤ 15%, externally fused with 32 A |
| Goldcap in Processor Module | For buffering date/time |
| Operating Temperature | 0...+60 °C |
| Storage Temperature | -40...+85 °C |
| Type of Protection | IP20 (unused slots covered, cover part no.: 60.528 2106) |
| Dimensions | 260 mm x 312 mm x 245 mm (W x H x D) |
| Weight | max. 10 kg (completely assembled) |
Ethernet Communication Protocols
The HIMatrix F60 system supports a comprehensive range of Ethernet communication protocols for seamless controller connectivity and integration:
- SafeEthernet - Redundant operation available for F*03 controllers
- Modbus TCP - Can operate as master or slave
- Send/Receive TCP - Standard TCP communication
- SNTP - Time synchronization over the network
- EtherNet/IP - Industry-standard connectivity
- PROFINET IO Controller - Supported only on F*03 controllers (up to CPU OS V6.x / ELOP II Factory)
- PROFINET IO Device - Supported only on F*03 controllers
Note: Each protocol can be configured once per controller.
