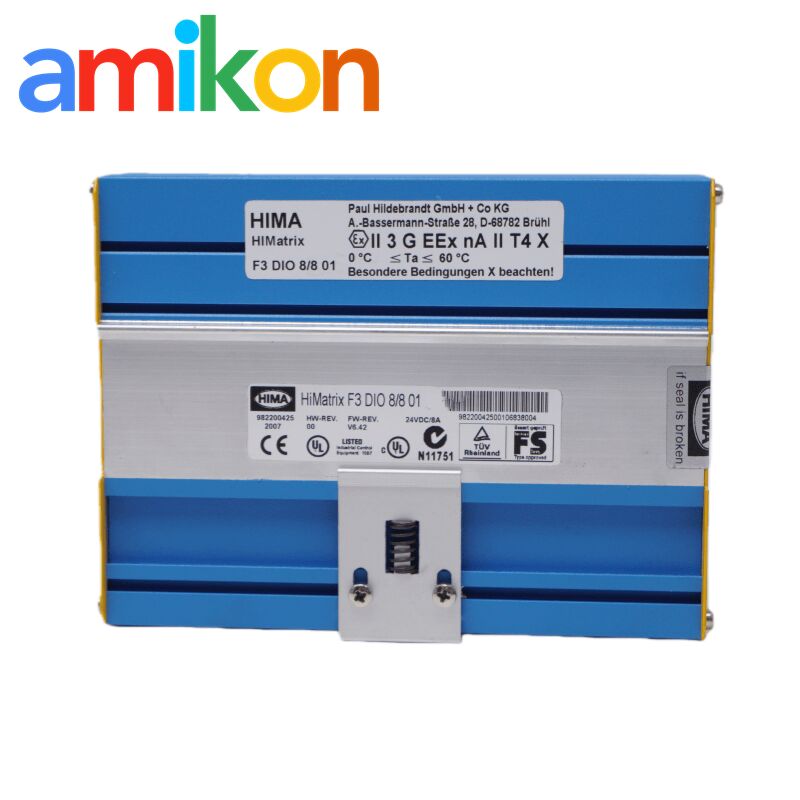

Hima HIMATRIX F3DIO 8/8 01 F3 DIO 8/8 01 Remote I/O module with 8 Digital Inputs 8 Digital Outputs
Hima HIMATRIX F3DIO 8/8 01 F3 DIO 8/8 01 Remote I/O module with 8 Digital Inputs 8 Digital Outputs
8 digital inputs Remote I/O module
8 digital outputs HIMATRIX F3DIO 8/8 01
2 pulsed outputs Digital I/O module
Place of Origin:
Germany
Brand Name:
Hima
Model Number:
HIMATRIX F3DIO 8/8 01 F3 DIO 8/8 01
Contact Us
Request A Quote
Product Details
Product Parameters:
Remote I/O Module
Response Time:
≥ 10 Ms
Ethernet Interfaces:
2 X RJ-45, 10BASE-T/100BASE-Tx With Integrated Switch
Current Input:
Max. 8 A
Fuse (external):
10 A Time-lag (T)
Back-up Battery:
None
Operating Temperature:
0...+60 °C
Storage Temperature:
-40...+85 °C
Highlight:
8 digital inputs Remote I/O module
,8 digital outputs HIMATRIX F3DIO 8/8 01
,2 pulsed outputs Digital I/O module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Hima Central Module F8651E with -40°C to +70°C Operating Temperature 2G Vibration Resistance
Get Best Price
Video
F7541 HIMA Connecting Module with SIL 3 Safety Integrity 16 Channel Count and 500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description

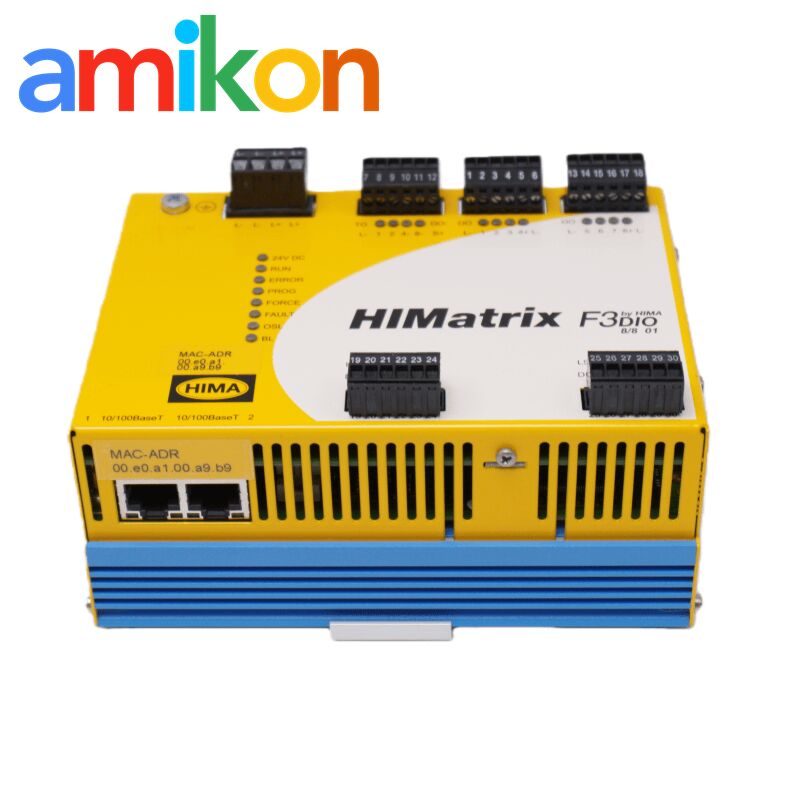

The safety-related F3 DIO 8/8 01 remote I/O is a compact unit built in a metal housing and equipped with 8 digital inputs, 8 digital DO+ outputs (L- ground), 2 digital DO- outputs (S+ ground), and 2 pulsed outputs. The digital outputs DO4+, DO8+, DO4-, and DO8- can also be wired as 2-pole connections when needed. The module is available in several model variants for both SILworX and ELOP II Factory, as shown in the screen referenced.
These remote I/O units connect to individual HIMax or HIMatrix controllers over safeethernet. Their job is to expand the I/O capacity of a system, and they don't run any user program on their own.
F3 DIO 8/8 Model Variants
| Designation | I/O Configuration | Operating Temp. | Programming Tool | Additional Standards (Ruggedization) |
|---|---|---|---|---|
| F3 DIO 8/8 01 | 8 DI / 8 DO / 2 Pulsed Outputs | 0...+60 °C | ELOP II Factory | Standard |
| F3 DIO 8/8 014 | 8 DI / 8 DO / 2 Pulsed Outputs | -25...+70 °C (Class T1) | ELOP II Factory | Vibration & Shock Tested: • EN 50125-3 • EN 50155 • IEC 61373 (Class 1B) |
| F3 DIO 8/8 01 (SILworX) | 8 DI / 8 DO / 2 Pulsed Outputs | 0...+60 °C | SILworX | Standard |
| F3 DIO 8/8 014 (SILworX) | 8 DI / 8 DO / 2 Pulsed Outputs | -25...+70 °C (Class T1) | SILworX | Vibration & Shock Tested: • EN 50125-3 • EN 50155 • IEC 61373 (Class 1B) |
Key Differences Summary
01 vs. 014: The 01 is the standard model. The 014 is the rugged version built for wider temperature ranges and high-vibration environments (like rail or heavy transport).
Software: You must select the model that matches your specific software environment (ELOP II Factory vs. SILworX).
While the system is being booted, all LEDs are lit simultaneously.
| LED | Color | Status | Description |
|---|---|---|---|
| RUN | Green | On | Device in RUN, normal operation |
| Blinking | Device in STOP; a new operating system is being loaded | ||
| Off | Device is not in the RUN state | ||
| ERROR | Red | On | Device is in ERROR STOP state; internal fault detected by self-tests (e.g., hardware faults or cycle time overrun). The processor can only be restarted via PADT (reboot). |
| Blinking | ERROR blinks and all other LEDs light simultaneously when the boot loader detects an OS fault in flash memory and waits for a new OS to be loaded | ||
| Off | No faults detected | ||
| PROG | Yellow | On | A new configuration is being loaded |
| Blinking | Device switches from INIT to STOP; a new OS is being written to flash ROM | ||
| Off | No configuration or OS is being loaded | ||
| FORCE | Yellow | Off | The FORCE LED of a remote I/O is not functioning; FORCE LED of the controller signals forcing of a remote I/O |
| FAULT | Yellow | On | Loaded configuration is not valid; new OS is corrupted (after OS download) |
| Blinking | Fault while loading a new OS; one or multiple I/O faults occurred | ||
| Off | No faults occurred | ||
| OSL | Yellow | Blinking | Operating system emergency loader active |
| Off | Emergency loader inactive | ||
| BL | Yellow | Blinking | OS and OSL binary defective or hardware fault (INIT_FAIL) |
| Off | No faults occurred |
Line Control Purpose
Line control is used to detect short-circuits or open-circuits and can be configured for remote I/O, e.g., on EMERGENCY STOP inputs compliant with Cat. 4 and PL e according to EN ISO 13849-1.
Connection Setup
01. Digital Output to Input Loop:
Connect the system's digital outputs TO 1 through TO 2 to the digital inputs DI of the same system.
Connect the system's digital outputs TO 1 through TO 2 to the digital inputs DI of the same system.
02. Pulsed Line Detection:
The remote I/O continuously pulses the outputs to detect:
• Short-circuits
• Open-circuits
on the lines connected to the digital inputs.
The remote I/O continuously pulses the outputs to detect:
• Short-circuits
• Open-circuits
on the lines connected to the digital inputs.
03. Configuration:
In SILworX, configure the pulsed outputs via:
In SILworX, configure the pulsed outputs via:
Value [BOOL] -> system variableIn ELOP II Factory, use:
DO[01].Value system signalNote: The variables for pulsed outputs must:
• Begin with channel 1
• Be in direct sequential order
• Begin with channel 1
• Be in direct sequential order
