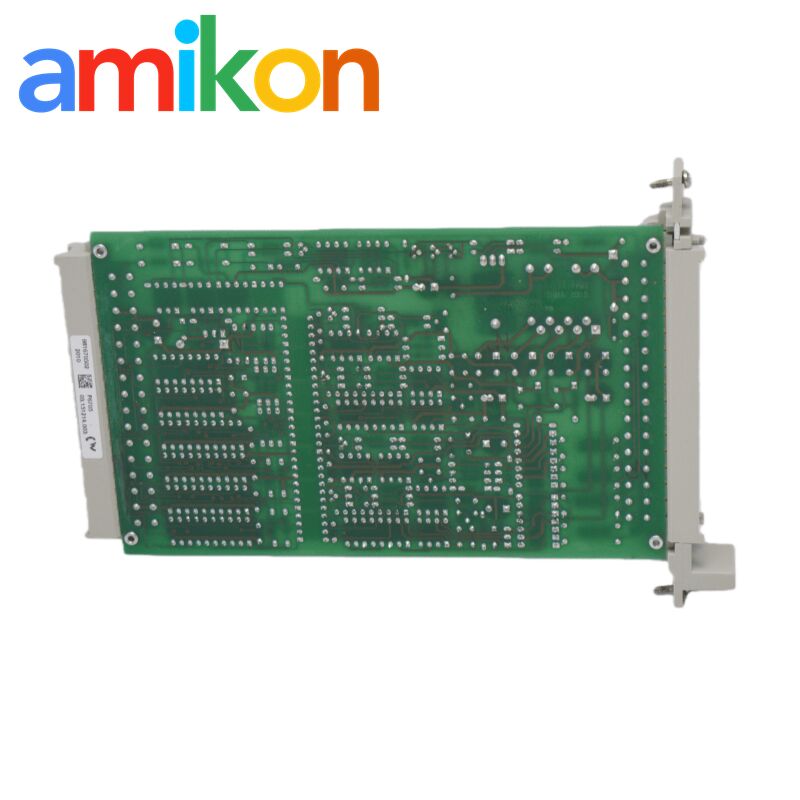

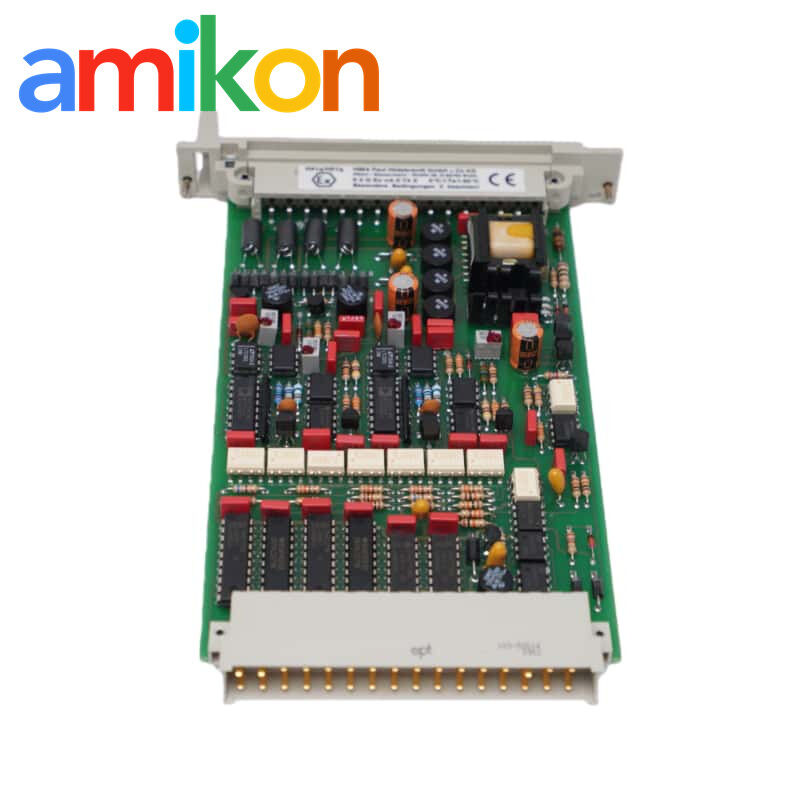

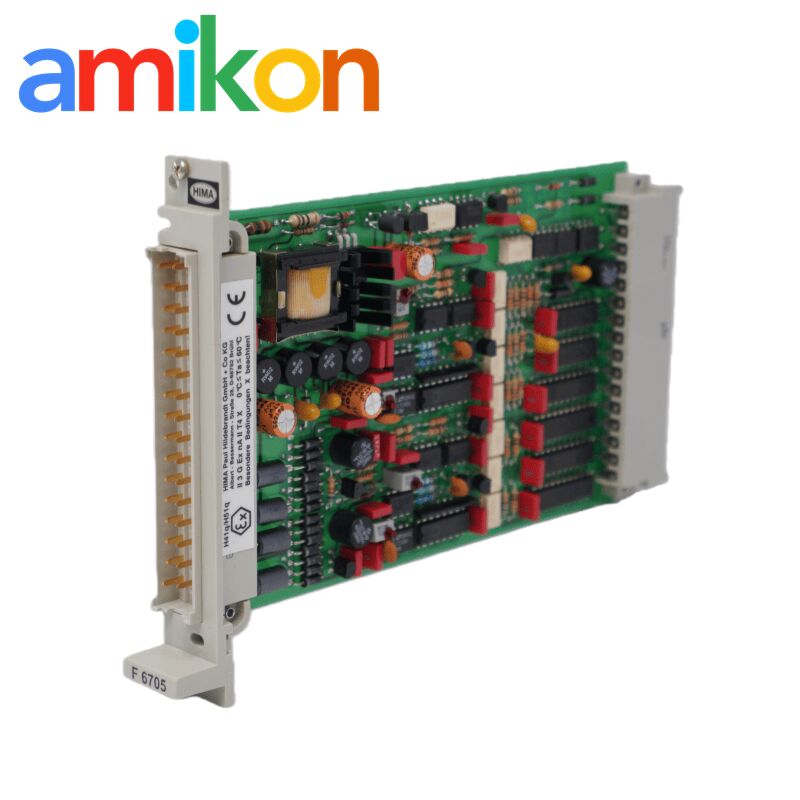

Hima F6705 Analog Output Module with Redundant Current Connection for Industrial Control
12-bit Resolution Analog Output Module
Bipolar Current Connection Hima F6705
Redundant Current Connection Industrial Control Module
Place of Origin:
Germany
Brand Name:
Hima
Model Number:
F6705
Contact Us
Request A Quote
Product Details
Brand:
Hima
Part Number:
F6705
Description:
Analog Output Module
Place Of Shipment:
Xiamen, China
Country Of Origin:
Germany
Packaging:
Original New Packaging
MOQ:
1 Piece
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
12-bit Resolution Analog Output Module
,Bipolar Current Connection Hima F6705
,Redundant Current Connection Industrial Control Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Hima Central Module F8651E with -40°C to +70°C Operating Temperature 2G Vibration Resistance
Get Best Price
Video
F7541 HIMA Connecting Module with SIL 3 Safety Integrity 16 Channel Count and 500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
Product Specifications
| Product Model | F6705 |
| Product Parameters | 2-Fold Analog Output Module |
| Country of Origin | GERMANY |
| Place of Shipment | Xiamen, China |
| Estimated Shipping Size | 2x19x12.8cm |
| Manufacturer | HIMA |
| Weight | 0.18 kg |
| Resolution | 12 bits |
| Source Mode | ≤ 550 Ohm incl |
| Sink Mode | ≤ (UQ - 10 V) / 21.2 mA |
| Basic Error | ≤ 0.2 % (40 µA) at 25 °C |
| Operating Error | ≤ 0.4 % at 0...+60 °C |
| Line Length Max | 1000 m |
| Electric Strength | 250 V against Analog-GND |
| Basic Status With | I ≤ 40 µA |
| Source Voltage UQ | 10 ... 30 V |
| Operating Data | 5 V DC: 85 mA, 24 V DC: 130 mA |
Bipolar Current Connection
A bipolar current configuration enables system output currents ranging from -20 mA to +20 mA. Key operational characteristics:
- Total output current is calculated as the difference between two module currents: IG1 = I11 - I21 or IG2 = I12 - I22
- Permissible burden resistance remains unchanged
- Module 1 manages the positive current portion while Module 2 handles the negative portion
- For optimal accuracy, only one module should generate or absorb current at any given time, as defined in the user program
Redundant Current Connection
In redundant configuration setups, consider these critical factors:
- Total current delivered to the burden (IG1 or IG2) equals the sum of both module outputs: IG1 = I11 + I21, IG2 = I12 + I22
- Admissible burden resistance is reduced by half
- Paired channels must operate in identical modes—either both sourcing or both sinking current
- To balance thermal effects and ensure uniform loading, each module should contribute half of the total current delivered to the burden
Industrial Applications
The F6705 excels in demanding industrial environments:
- Refining & Petrochemical: Provides precise control over flow and pressure during crude cracking and chemical processing, ensuring process stability and safety
- Offshore Oil & Gas: Engineered for harsh marine environments with resistance to salt, vibration, and isolation challenges
- Power & Steel: Manages heavy energy loads in blast furnace temperature regulation and turbine output control applications
