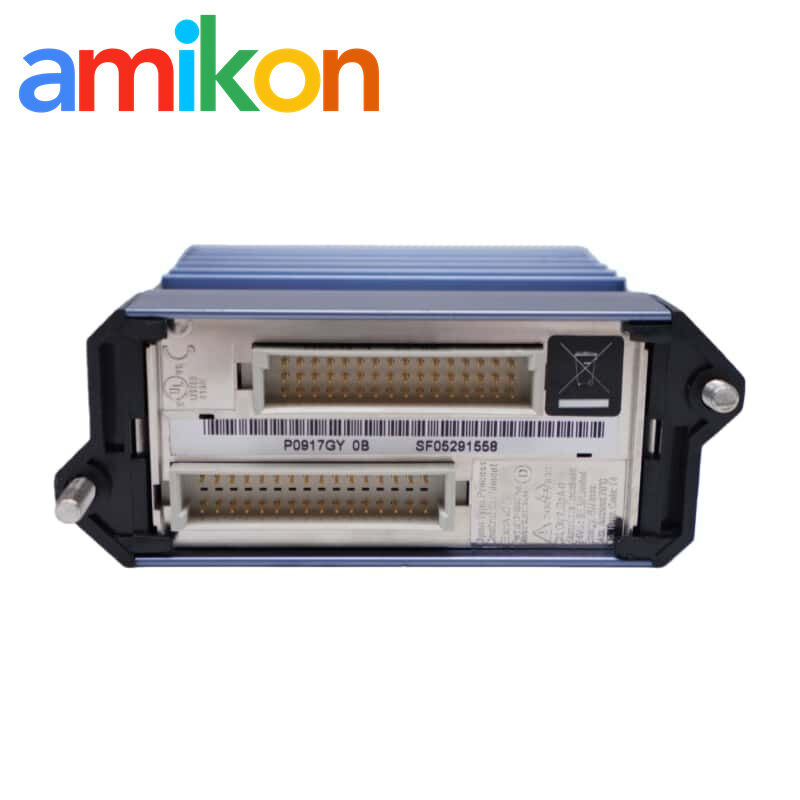

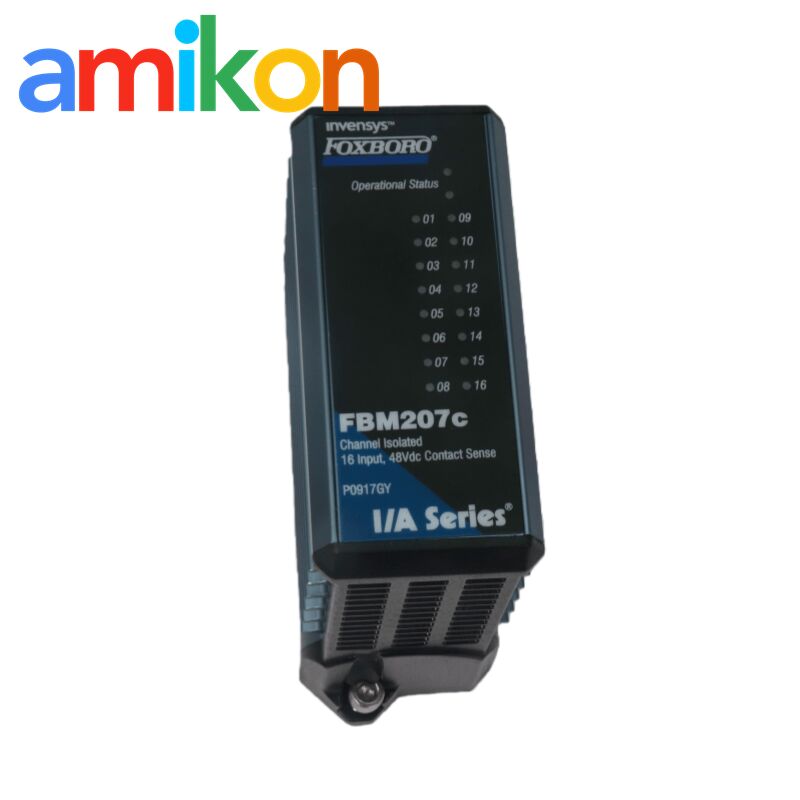

FOXBORO FBM207C Voltage Monitor with 16 Channels Galvanically Isolated for Redundant Setup
FOXBORO FBM207C Voltage Monitor with 16 Channels Galvanically Isolated for Redundant Setup
16 Channels FOXBORO FBM207C
Galvanically Isolated Voltage Monitor
Redundant Setup Foxboro Module
Place of Origin:
USA
Brand Name:
FOXBORO
Model Number:
FBM207C
Contact Us
Request A Quote
Product Details
Product Model:
FBM207C
Country Of Origin:
USA
Place Of Shipment:
Xiamen, China
Estimated Shipping Size:
4.5x11x11.5cm
Manufacturer:
FOXBORO
Weight:
0.32 Kg
Shipping:
TNT, DHL, FedEx, EMS, UPS
MOQ:
1 Piece
Highlight:
16 Channels FOXBORO FBM207C
,Galvanically Isolated Voltage Monitor
,Redundant Setup Foxboro Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Foxboro FBM4/39/44 P0500RY I/A Series Termination Cable with Factory-Terminated Connectors
Get Best Price
Video
Foxboro FBI10E P0972AJ Fieldbus Isolator with 10 Mbps Ethernet Fieldbus, Galvanic Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
Every input is galvanically isolated from the others and from ground, and when combined with external excitation, groups of channels remain isolated too. The module converts signals from field sensors into a format that the redundant Fieldbus can understand. On top of that, it can run programs for discrete inputs, ladder logic, pulse counting, and sequences of events, with flexible input filter timing options.
You can use a single FBM207 on its own, or pair two together for redundancy. In a redundant setup, both modules share a termination assembly via a redundant adapter, doubling the input current but ensuring reliability. The Foxboro Evo™ Control Software has a special block that validates redundant inputs and automatically picks the one with the best signal quality. Contact sense power is safely diode OR'd together, and a redundant contact input function block (CINR) keeps both modules synchronized, reading inputs identically on each cycle and fully exercising the fieldbus and module logic.
Key Features
- 16 Channels, Endless Possibilities - Handle discrete inputs across a wide voltage range: 15-60 V DC for contact sensing, 120 V AC / 125 V DC, or 240 V AC for voltage monitoring and switch inputs.
- Safe & Isolated - Each input is galvanically isolated, with optional group isolation for extra protection.
- Single or Redundant - Run it solo or pair modules for rock-solid redundancy.
- Built Tough - Rugged design thrives in Class G3 harsh environments.
- Smart & Programmable - Execute Discrete Input, Ladder Logic, Pulse Counting, and Sequence of Events programs with customizable input filtering.
- Flexible Wiring - Termination Assemblies (TAs) make local or remote connections easy, supporting internally or externally loop-powered devices.
- Extra Protection Built-In - Some TAs include voltage attenuation and optical isolation to keep signals safe and reliable.
Technical Specifications
| FBM Type | Input Signal Specification | TA Part No. (PA) | Termination Type | TA Cable Type | TA Cert. Type |
|---|---|---|---|---|---|
| FBM207 | 16 Channel Voltage Monitor • 240 V AC with external excitation • Logic Zero: 0 to 40 V AC • Logic One: 160 to 280 V AC • Input Current (Logic One): 1.6 mA max • Group isolation provided by TA |
RH916PM (Supersedes P0916PM) |
C | 4 | 1 |
| FBM207b | 16 Channel Contact Sense • 24 V DC contact wetting from FBM207b • Channel isolation included |
RH916XT (Supersedes P0916XT, P0916JS) |
C | 4 | 1, 2 |
| FBM207c | 16 Channel Contact Sense • 48 V DC contact wetting from FBM207c • Channel isolation included |
RH917MG (Supersedes P0917MG, P0917MF) |
C | 4 | 1, 2 |
| FBM207c | P0917MJ (Supersedes P0917MH) |
RL |
Key Notes & Installation Guidelines
Termination Assemblies: Polyamide termination assemblies rated from -20 to +70°C (-4 to +158°F).
Termination Type:
C = TA with compression terminals.
RL = TA with ring lug terminals.
C = TA with compression terminals.
RL = TA with ring lug terminals.
Cable Type: Type 4 (See manufacturer Table 2 for full cable specs).
RoHS Compliance: Polyamide RL supersedes the PVC RL; note that the older PVC version is not a RoHS part.
Installation Warning: To avoid false tripping of AC type inputs, care should be taken in routing long wiring or bundled runs to minimize coupling from adjacent signals and/or noise from heavy equipment. When possible, DC excitation of input circuits is recommended for runs greater than 305 m (1000 ft).
