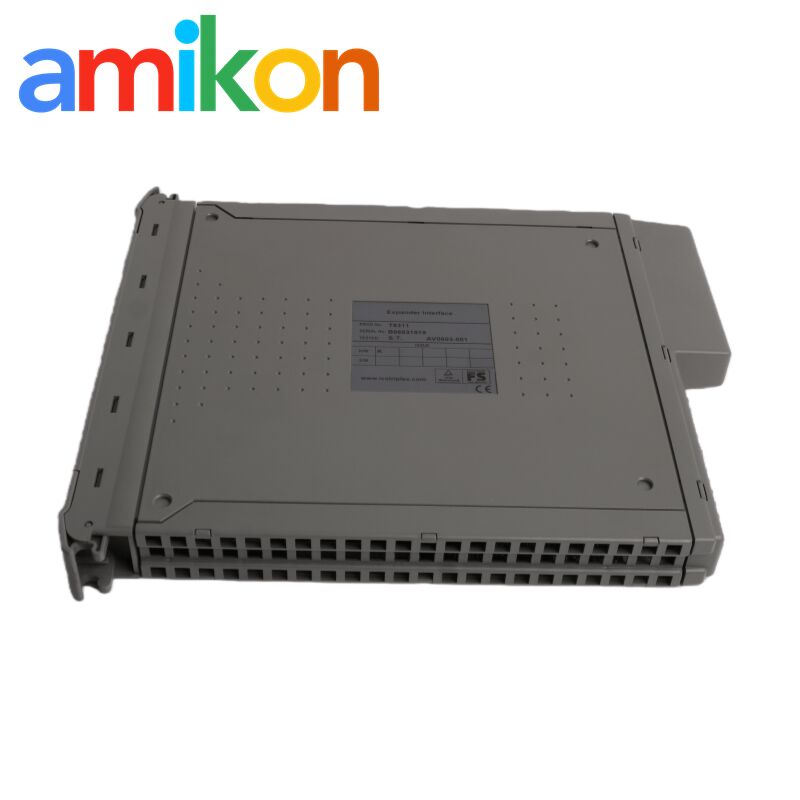

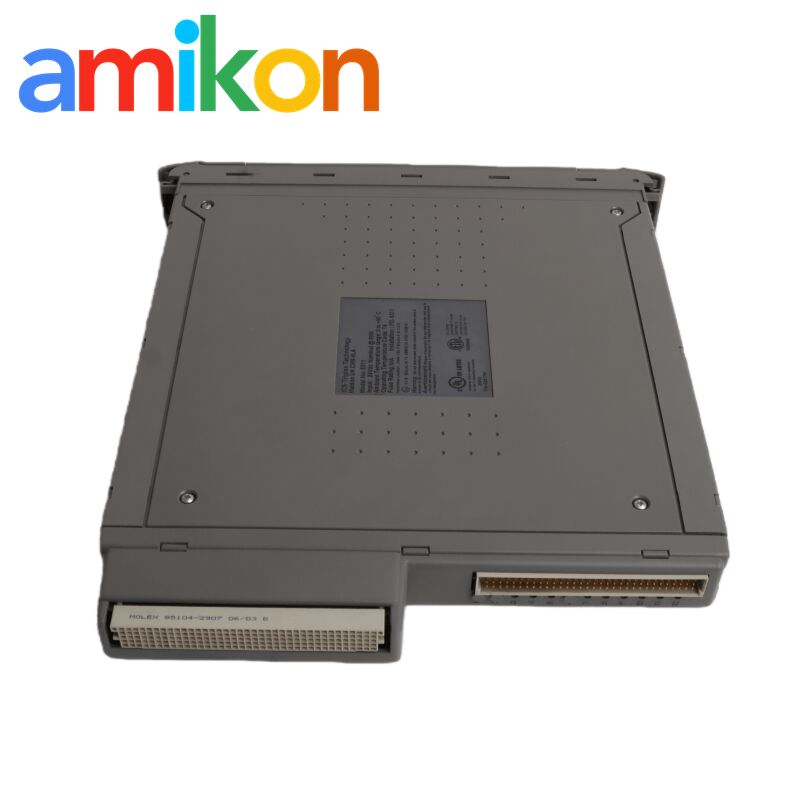

T8311 ICS triplex Trusted TMR Expander Interface with Fault-Tolerant Design
Fault-Tolerant Design TMR Expander Interface
250Mbps Expander Bus Data Rate ICS Triplex Module
Hot Replacement Capability Trusted TMR Expander
Place of Origin:
USA
Brand Name:
ICS triplex
Model Number:
T8311
Fault-Tolerant Design TMR Expander Interface
,250Mbps Expander Bus Data Rate ICS Triplex Module
,Hot Replacement Capability Trusted TMR Expander
Video
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
Video
ICS Triplex T8830 Analogue Input Field Termination Assembly with 40 Input Channels, 24 V DC Power
The TMR Expander Interface features a fault-tolerant design based on a Triple Modular Redundant (TMR) architecture arranged in a lock-step configuration. The diagram above illustrates the basic structure of the TMR Expander Interface.
The module consists of three main Fault Containment Regions (FCRs): FCR A, B, and C. Each main FCR contains:
| Component | Description |
|---|---|
| Interfaces | Expander Bus and Inter-Module Bus (IMB) interfaces |
| Redundancy | Active/standby interface to other TMR Expander Interface in chassis |
| Control Systems | Control logic and communication transceivers |
| Power | Dedicated power supplies |
Communication with the TMR Processor occurs via the IMB on the backplane of the Controller Chassis. The IMB provides fault-tolerant, high-bandwidth communication between Interface Modules and the TMR Processor. All transactions are voted, which helps localize faults to the IMB should they occur.
Communication with the TMR Expander Processor in the Expander Chassis is via the Expander Bus. The Expander Bus features a triplicated, point-to-point architecture, with each channel comprising separate command and response media. Voting is performed at the Expander Bus Interface to ensure cable faults are tolerated, and the remainder of the Expander Processor operates in fully triplicated mode, even if cable faults occur.
A fourth FCR (FCR D) handles non-critical monitoring and display functions and is also part of the inter-FCR Byzantine voting structure.
Isolation is maintained between FCRs wherever interfaces are required, ensuring that faults cannot propagate between them.
- Triple Modular Redundant (TMR), Fault-Tolerant (3-2-0) Operation
- Hardware-Implemented Fault-Tolerant (HIFT) Architecture
- Dedicated Hardware & Software Test Regimes (Ensures rapid fault recognition and response)
- Automatic Fault Handling (Operates without nuisance alarms)
- Hot Replacement Capability (Supports module swap without system downtime)

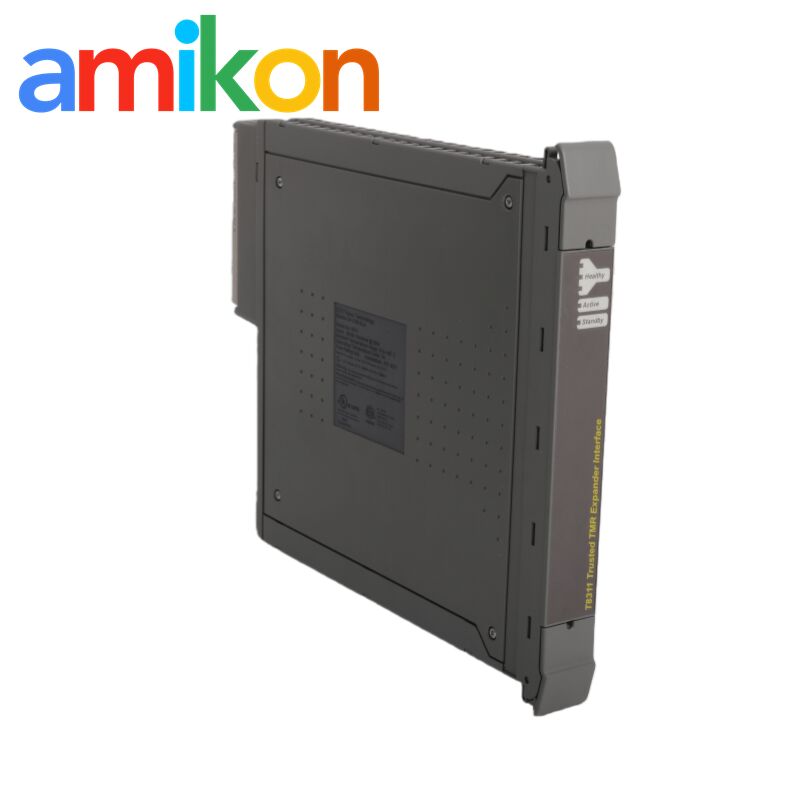

- Front Panel Health Indicators (Displays module status and health at a glance)
- T2V Certified IEC 61508 SIL 3 Compliance
All Trusted™ Modules are keyed to prevent insertion into the wrong position within a chassis. The polarization system consists of two parts: the module and the associated field cable.
Each module type is keyed during manufacture. The organization responsible for integrating the Trusted™ system must key the cable by removing the appropriate keying pieces so that they match the bungs fitted to the associated module before installation. This ensures correct module-cable alignment and prevents mis-insertion within the chassis.
