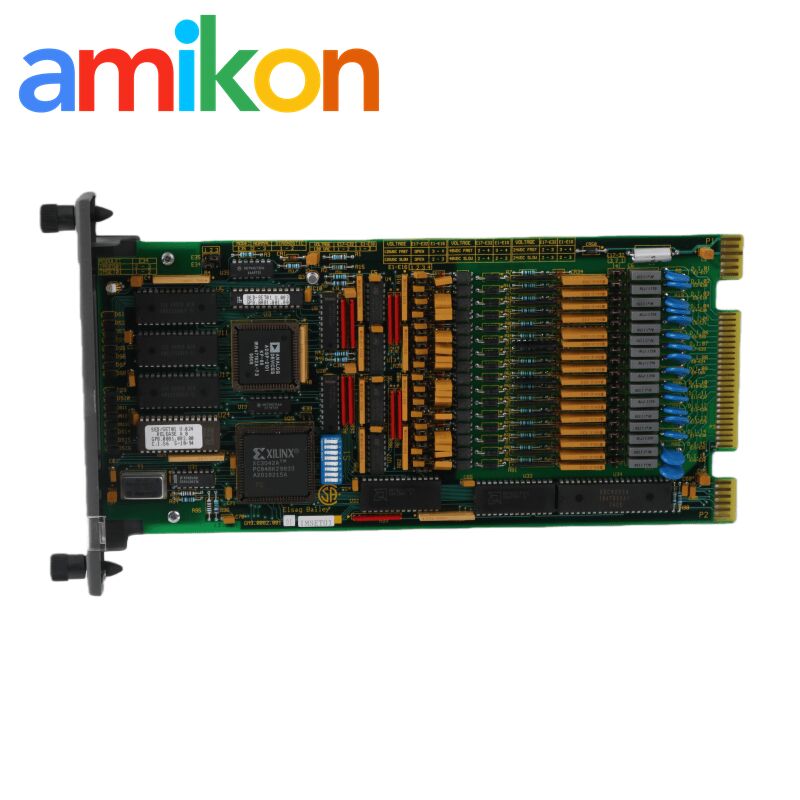

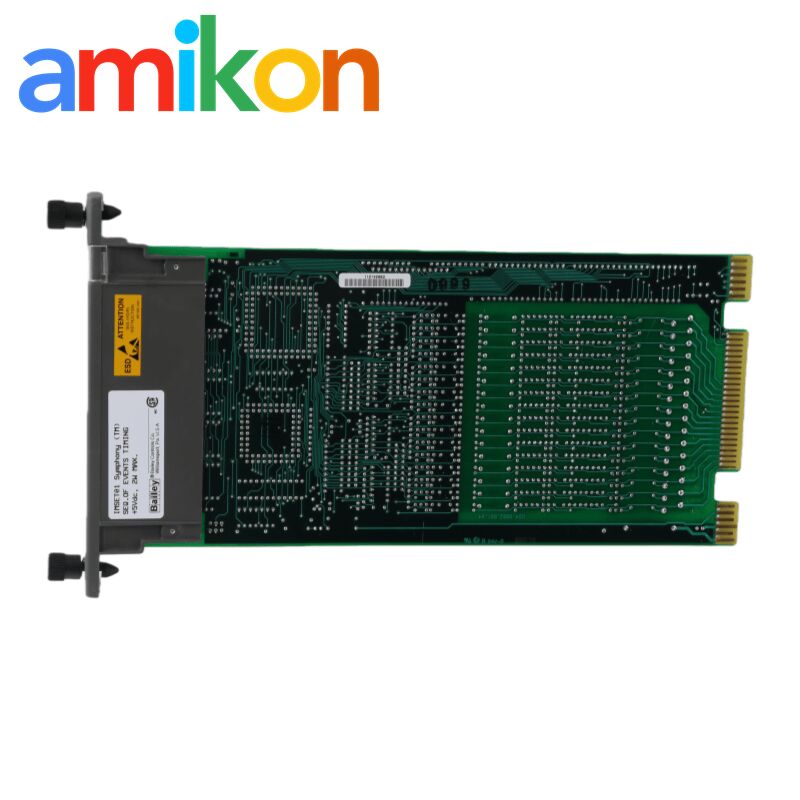

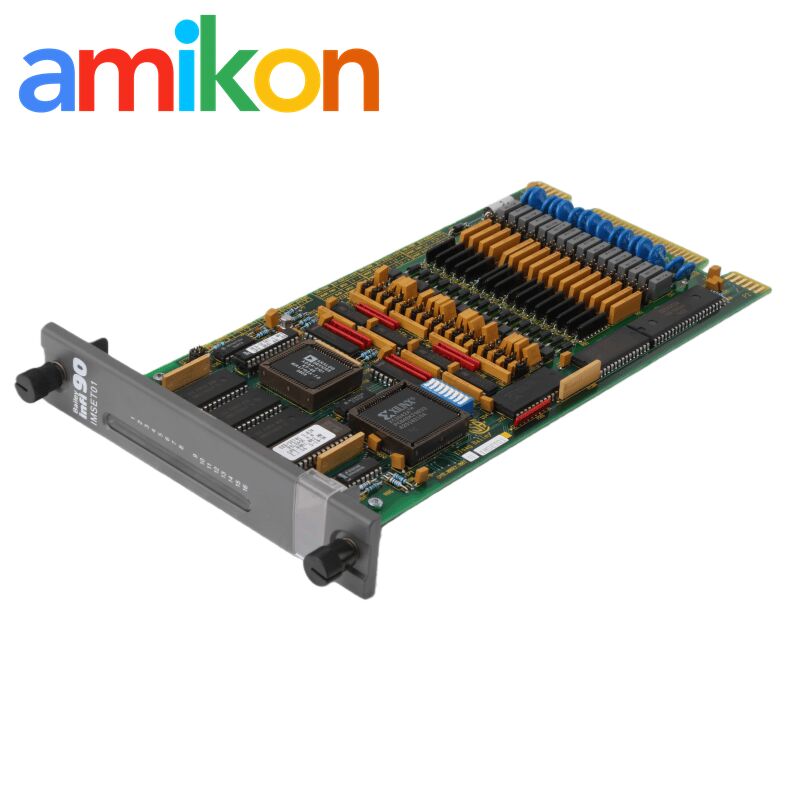

ABB IMSET01 Sequence of Event Time Keeper Module for Optically Isolated Channels
ABB IMSET01 Sequence of Event Time Keeper Module for Optically Isolated Channels
16 digital inputs SOE Timing Module
RS-485 time synchronization IMSET01 Module
Optically isolated channels Sequence of Event Time Keeper Module
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
IMSET01
Contact Us
Request A Quote
Product Details
Estimated Shipping Size:
17.8x5.1x33.0cm
Weight:
0.4 Kg
Mounting:
Occupies One Slot In A Standard Module Mounting Unit
Ambient Temperature:
0° To 70°C (32° To 158°F)
Operating Voltage:
+5 VDC, ±5% At 350 MA Typical
Microprocessor:
16 Bits Running At 10 MHz
Communication:
RS-485 Time Synchronization
Packaging:
Original New Packaging
Highlight:
16 digital inputs SOE Timing Module
,RS-485 time synchronization IMSET01 Module
,Optically isolated channels Sequence of Event Time Keeper Module
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
ABB SDCS-IOB-3 3BSE004086R1 Analog I/O Board with Single-ended Differential Encoder Connections
Get Best Price
Video
ABB PU514 Real Time Accelerator RTA Board for Fast Regulatory Control Complex Algorithms
Get Best Price
CONTACT US
Contact Now
Product Description
The ABB IMSET01 Sequence of Event Time Keeper Module plays a critical role in distributed event monitoring within the Harmony system. Understanding its position in the broader SOE framework helps clarify why its precise timing and event capture capabilities are essential for industrial control systems.
Harmony Sequence of Events System Overview
Harmony Sequence of Events (SOE) provides distributed event monitoring, recording, and reporting capabilities for the Symphony™ Enterprise Management and Control System. An SOE event represents a digital signal transition (on-to-off or off-to-on). Multiple SOE modules collaborate to collect and time-stamp these transitions, making comprehensive event data available throughout the system.
Module Structure and Configuration
Each SOE module consists of a single printed circuit board that occupies one slot in a module mounting unit (MMU). Configuration of the module and its I/O channels is accomplished through jumpers and switches on the circuit board, supplemented by jumpers and disphunts on the termination unit.
Connection Architecture
A dedicated cable connects the SOE module to its termination unit, where all field wiring connection points are located. This separation maintains organized field wiring and simplifies installation and maintenance procedures.
The IMSET01 Sequence of Events Timing module processes up to 16 digital field inputs and receives/decodes time synchronization link information from the INTKM01 module for Harmony controllers. The controller utilizes function code 241 (DSOE data interface) to transfer SOE data from the IMSET01 to the INSEM01 module, and function code 242 (SOE digital event interface) to configure and access IMSET01 input channels.
Each channel features optical isolation and can be individually programmed for 24 VDC, 48 VDC, 125 VDC, and 120 VAC input compatibility. The module communicates with its Harmony controller via the I/O expander bus, with only one IMSET01 module permitted per I/O expander bus segment. This design ensures reliable data handling and dedicated communication for time-critical event recording.
The module cable interfaces with NTST01 and NTDI01 termination units. The NTST01 provides termination for time synchronization links, while the NTDI01 handles field wiring termination, completing the comprehensive signal and timing interface for the Harmony system.
Key Features
Flexible Event Triggering
Supports multiple event trigger modes for optimal application compatibility
Easy Integration
Equipped with multiple communication interfaces for seamless device integration
Strong Noise Immunity
Designed with robust interference resistance for reliable operation in demanding industrial environments
Programmable Control Logic
Offers customizable control logic for implementing complex or specialized control strategies
Our Commitment to Your Operations
We locate hard-to-find "Ghost" parts - if they say it's obsolete, we probably have it to keep your legacy systems running without forced upgrades
Cost-effective solutions - our surplus and refurbished parts deliver equivalent performance while preserving your budget
Minimized downtime - extensive inventory enables fast shipping to reduce operational interruptions
Rigorous quality assurance - comprehensive testing ensures only reliable components leave our warehouse
Global shipping capabilities - distance is no barrier to receiving the parts you need
