ABB IPMON01 Power Monitor Module with 120/240 VAC ±10%, 125 VDC ±20%, and 2300 VAC Isolation
ABB IPMON01 Power Monitor Module with 120/240 VAC ±10%, 125 VDC ±20%, and 2300 VAC Isolation
120/240 VAC Power Monitor Module
125 VDC ABB IPMON01
2300 VAC Isolation Industrial Power Monitor
Place of Origin:
SWEDEN
Brand Name:
ABB
Model Number:
IPMON01
Contact Us
Request A Quote
Product Details
AC Input Sensing:
120/240 VAC ±10 %
DC Input Sensing:
125 VDC ±20 %
Isolation:
2300 VAC Rms
Aux Output:
24 VDC ±5 %
Operating Temperature:
–20 °C To +70 °C
Storage Temperature:
–40 °C To +85 °C
Humidity:
5 % – 95 % RH Non-condensing
Shipping:
TNT, DHL, FedEx, EMS, UPS
Highlight:
120/240 VAC Power Monitor Module
,125 VDC ABB IPMON01
,2300 VAC Isolation Industrial Power Monitor
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
ABB SDCS-IOB-3 3BSE004086R1 Analog I/O Board with Single-ended Differential Encoder Connections
Get Best Price
Video
ABB PU514 Real Time Accelerator RTA Board for Fast Regulatory Control Complex Algorithms
Get Best Price
CONTACT US
Contact Now
Product Description

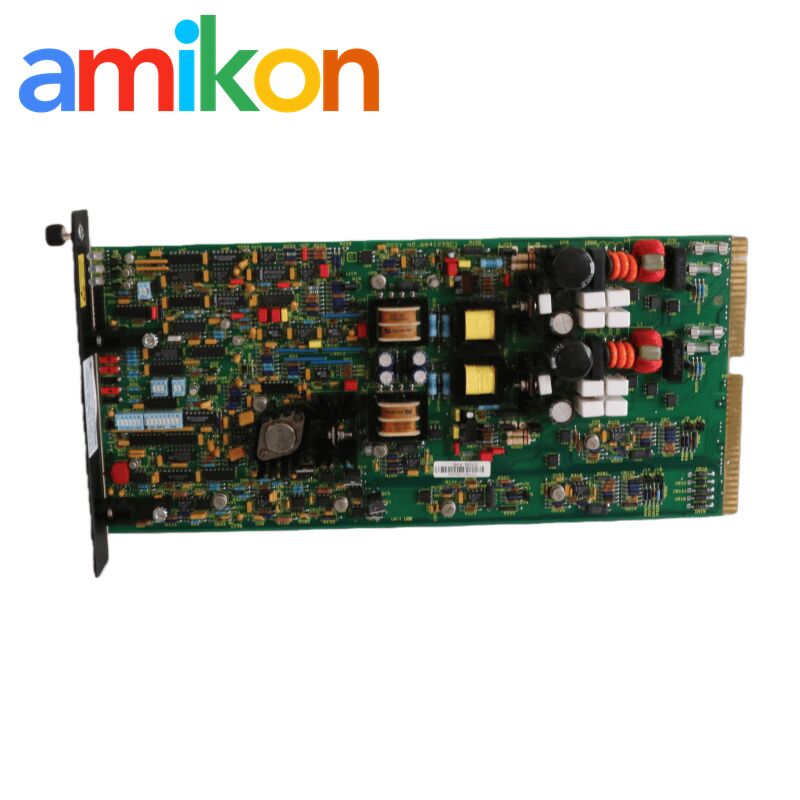

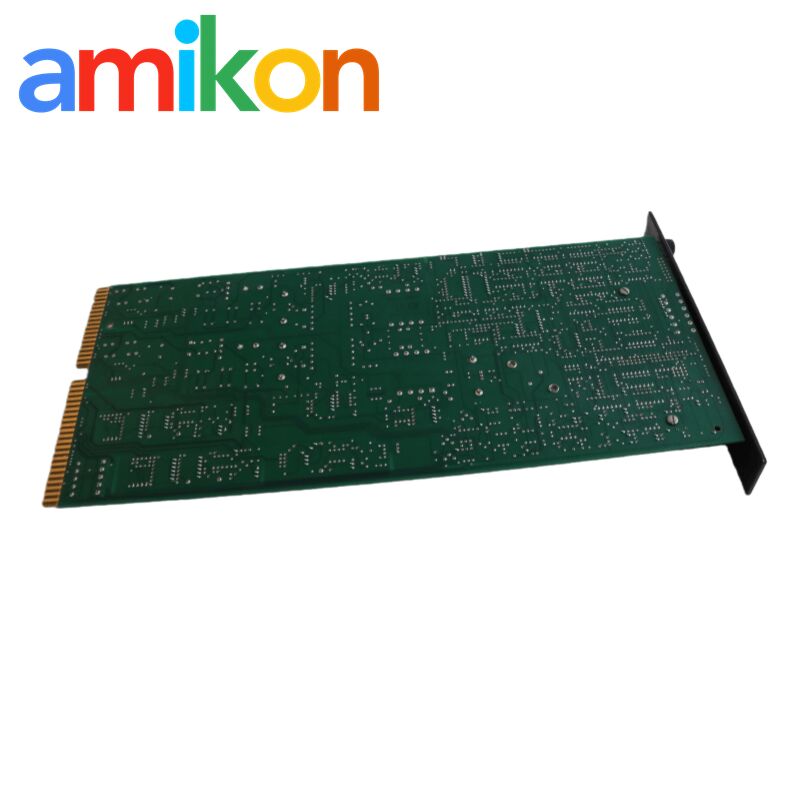

The ABB IPMON01 Power Monitor Module delivers reliable AC and DC input monitoring with precision and safety. It accommodates input voltages of 120/240 VAC (±10%) and 125 VDC (±20%), featuring 2300 VAC isolation protection and a stable 24 VDC auxiliary output.
Engineered for demanding industrial environments, the module operates effectively in temperatures from -20°C to +70°C and can be stored safely between -40°C and +85°C. It maintains reliable performance even in humid conditions ranging from 5% to 95% non-condensing.
Manufactured by ABB and shipped from Xiamen, China, the compact module measures approximately 3.4 * 41.8 * 21.8 cm and weighs under 1 kg for easy integration. Alternative models include PIPMON01, IPMON01R, and YIPMON01 for flexible deployment options.
Designed for both standalone operation and integration into larger systems, the IPMON01 provides dependable power monitoring with straightforward implementation for industrial applications requiring accurate power measurement.
LED Status Indicators
The self-check LED and line one LED are red/green status indicators that display green during normal operation. The self-check LED turns red when the module detects an on-board hardware failure. The line one LED indicates input power status in N, N+1, or N+x redundant systems, turning red when input voltage drops below the specified range. These LEDs remain constantly active, while the line two LED requires activation to display status of a second input line in 2N systems.
Eight additional alarm LEDs monitor selected signals based on dipswitch and jumper configurations.
Configurable LED Monitoring
Four LEDs—PFI, system power, I/O power, and external—can be configured to monitor multiple lines and signals:
- PFI LED: Monitors system and I/O bus voltages, status input line one, or combinations of lines and buses
- I/O Power LED: Tracks status input lines one and two (contact inputs) and auxiliary input lines one and two (for 24, 48, and 125 VDC external power)
- External LED: Displays status of line two input power and 5, 15, and -15 VDC bus voltages
When any associated signal or line fails, the corresponding LED turns red. During normal operation or when disabled, these LEDs remain off.
The remaining five LEDs are controlled by jumpers that configure input power line sensing, operating voltage, high/low trip points for auxiliary 24, 48, or 125 VDC I/O monitoring, temperature sensor trip points, and 25.5 VDC I/O bus voltage. These LEDs operate similarly: off during normal operation or when disabled, red when a failure is detected.
ABB Bailey products represent a comprehensive series of industrial automation solutions renowned for their precision, reliability, and flexibility. These solutions span multiple industrial fields and application scenarios, including multi-function processor control modules, analog input modules, and digital input/output modules.
Key Advantages
- Accurate measurement and process control
- Strong anti-interference performance
- Flexible configuration and system integration
- Safety-focused design
- Reliable, long-lasting operation
Need that "impossible-to-find" part? We've likely got it on the shelf.
Maintaining industrial systems presents challenges, particularly when components become obsolete. Amikon specializes in sourcing hard-to-find industrial parts that others cannot locate.
We maintain extensive inventory of both current technology and hard-to-find legacy components including PLCs, HMIs, Servo Drives, and Sensors to keep your operations running smoothly.
Don't let missing components halt your production. Let us handle your sourcing needs.
Compatible Parts Reference
| ZMAC-542 3AXD50000022463 | 3BHE044481R0101 PPE091 A101 | ZINT-541 3AUA00000658960 | 3BHE025335R1121 PDD205 A1121 |
| 07KT94 GJR5252100R3261 | 3BHE037649R0101 PDD500 A101 | ICSF08D1 FPR3323101R1012 | 3BHE019633R0101 PDD200 A101 |
| 3BHE037649R0101 | 3BHE036342R0101 XDD501 A101 | 3BHE036342R0101 | DI890 3BSC690073R1 |
| 3BHE019633R0101 | CI810B 3BSE020520R1 | 3BHE025335R1121 | TU810V1 3BSE013230R1 |
| 3BHE044481R0101 | CI867K01 3BSE043660R1 | D2E146-AP47-C3 | DI651 |
| DI650 | FENA-21 | LD MTR-01 1/2 | 216NG62A HESG441634R1 |
| DSQC668 3HAC029157-001 | NAMU-01C 64702475 | EG2401S-ER | 5SHX1445H0002 3BHL000387R0101 |
| YPP109A YT204001-DL/YPN106A YT204001-BD EG2401S-AR | CDP312R |
