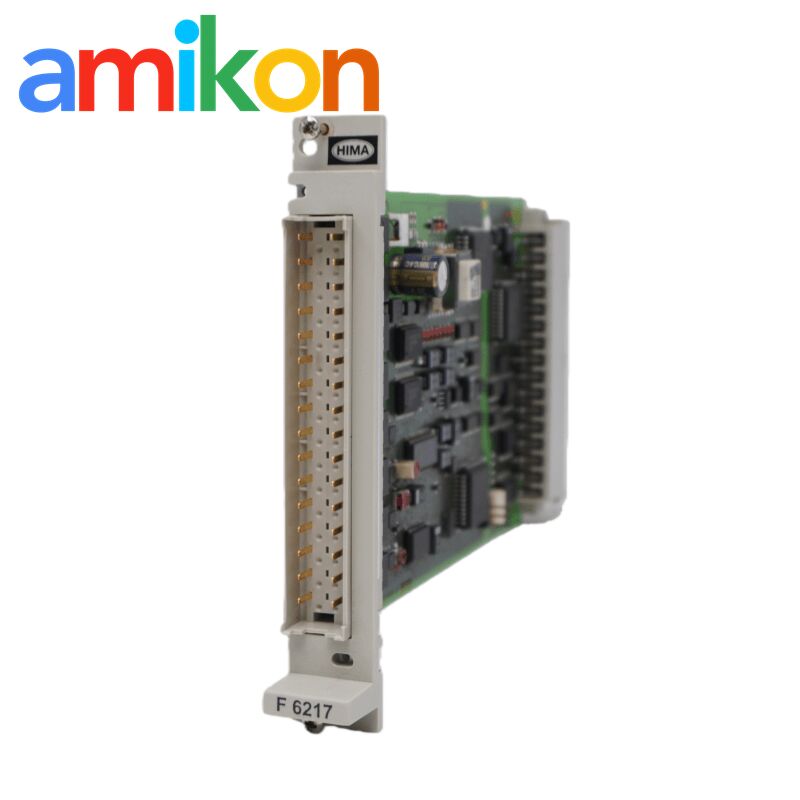

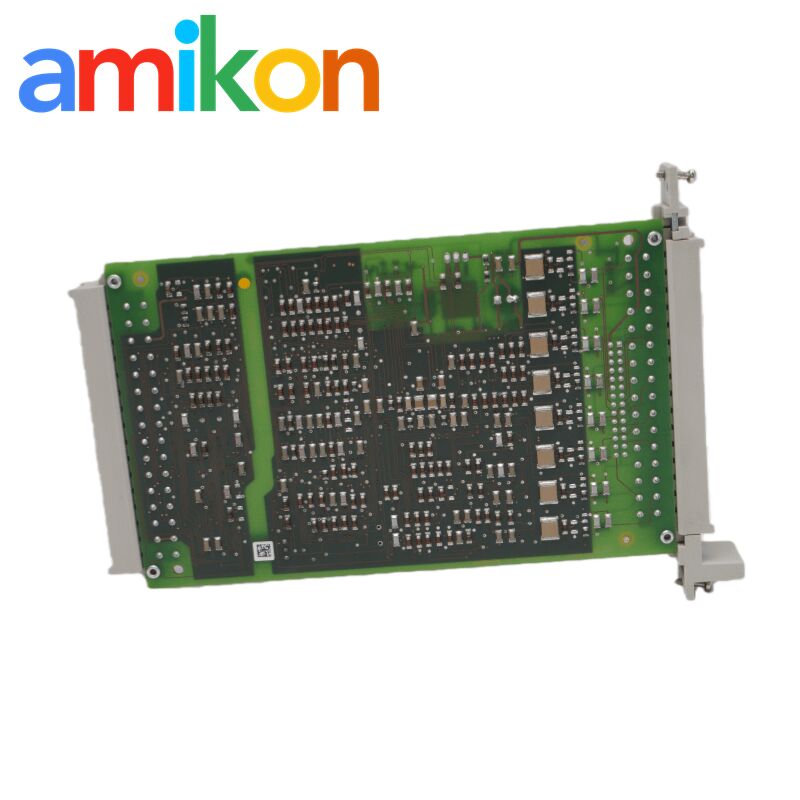

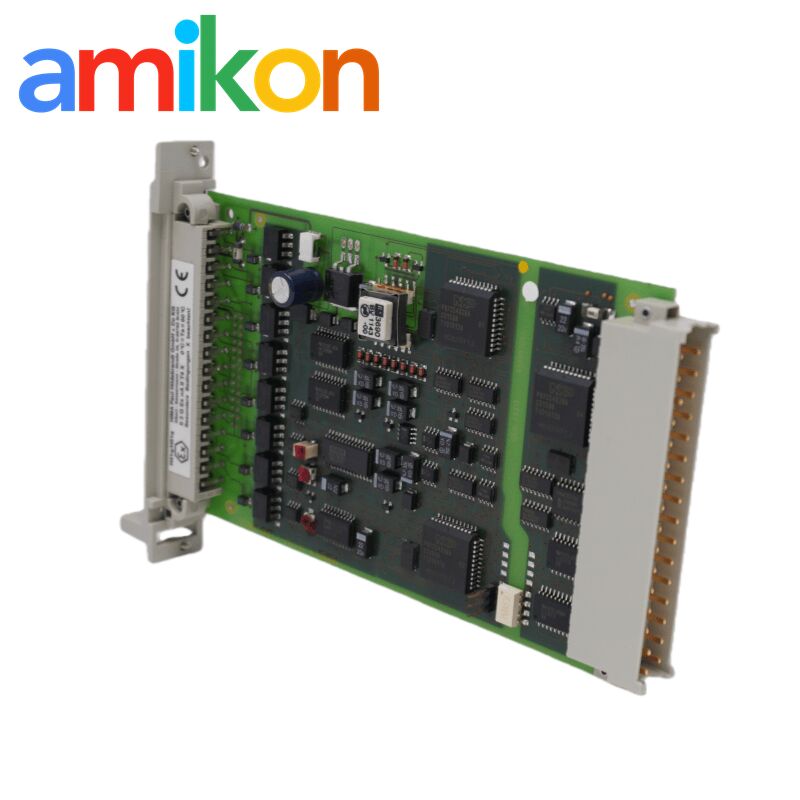

Hima F6217 Analog Input Module with 12-bit Resolution 100 kΩ Input Resistance
Hima F6217 Analog Input Module with 12-bit Resolution 100 kΩ Input Resistance
12-bit Resolution Analog Input Module
100 kΩ Input Resistance Hima F6217
0...5.5 V Input Voltage Input Board
Place of Origin:
Germany
Brand Name:
Hima
Model Number:
F6217
Contact Us
Request A Quote
Product Details
INPUT RESISTANCE:
100 KOHM
RESOLUTION:
12 BITS
Place Of Shipment:
Xiamen, China
Weight:
0.14 Kg
Input Voltage:
0...5.5 V
Max. Input Voltage:
7.5 V
Input Current:
0...22 MA (via Shunt), 22 MA = 4095
Max. Input Current:
30 MA
Highlight:
12-bit Resolution Analog Input Module
,100 kΩ Input Resistance Hima F6217
,0...5.5 V Input Voltage Input Board
Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
RELATED PRODUCTS
Video
Hima Central Module F8651E with -40°C to +70°C Operating Temperature 2G Vibration Resistance
Get Best Price
Video
F7541 HIMA Connecting Module with SIL 3 Safety Integrity 16 Channel Count and 500V AC Isolation
Get Best Price
CONTACT US
Contact Now
Product Description
| Product Model | F6217 |
|---|---|
| Product Parameters | ANALOG INPUT BOARD/MODULE |
| Place of shipment | Xiamen, China |
| Estimated Shipping Size | 2x19x12.8cm |
| R*: Shunt with | 250 Ω; 0.05 %; 0.25 W |
| Current input | T<10 ppm/K; part-no: 00 0710251 |
| Resolution | 12 bit, 0 mV = 0, 5.5 V = 4095 |
| Measurand update | 50 ms |
| Safety time | < 450 ms |
| Input resistance | 100 kΩ |
| Electric strength | 200 V against GND |
| Space requirement | 4 SU |
| Operating data | 5 VDC / 80 mA, 24 VDC / 50 mA |
Module Features
The module incorporates a redundant, safety-related processor system, enabling self-testing directly on the module. All tests are executed internally; detected errors are flagged for user evaluation.
Main Test Routines
- A/D Converter Linearity: Verify accuracy across the input range.
- A/D Converter Overflow: Detect numerical saturation conditions.
- Channel Cross-Talk: Check interference between the eight input channels.
- Input Filter Function: Confirm proper signal conditioning.
- I/O Bus Communication: Validate data transfer integrity.
- Microcontroller Self-Tests: Verify core processor functionality.
- Memory Tests: Check program and data memory integrity.
Error Handling
- Any recognized error sets the channel error bit.
- Evaluation and response must be implemented within the user program.
Warranty Policy
- Each part has a one-year warranty.
- Warranty terms may vary based on supplier agreements.
Shipping Carriers
- Standard carriers: FedEx, UPS, DHL, USPS.
- Customer's preferred carrier can be used.
- Alternative carriers available for convenience.
Payment Methods
- Bank transfer accepted.
- Chinese Yuan (RMB) available if using a shipping forwarder or contact in China.
