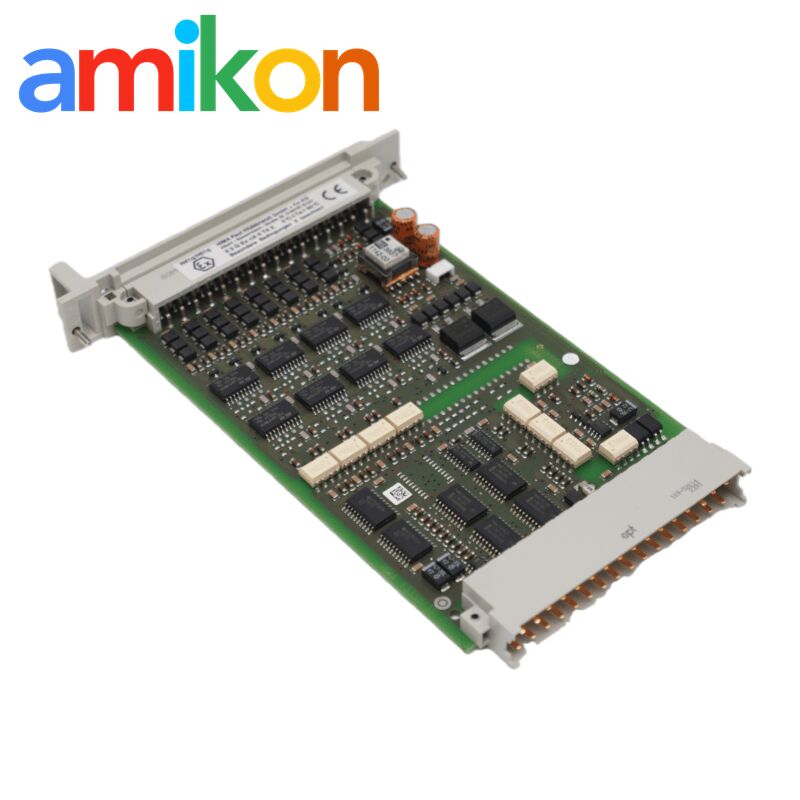

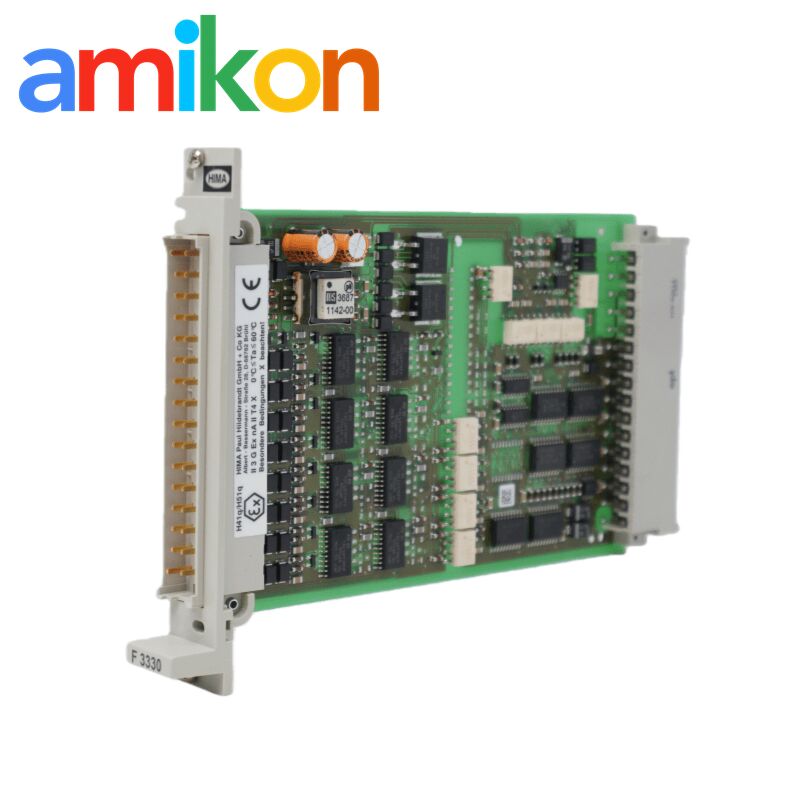

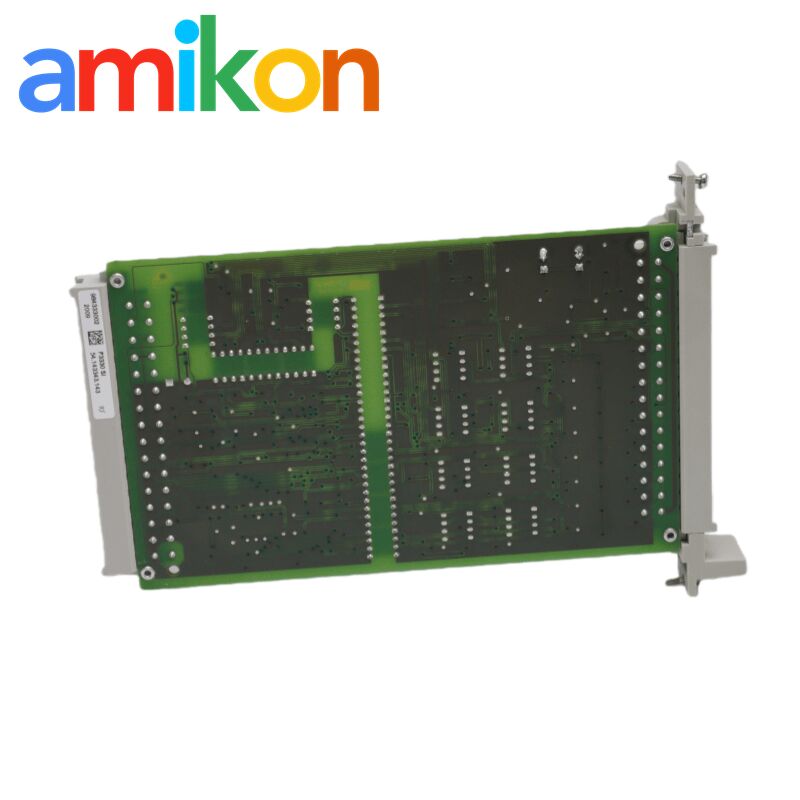

Hima F3330 Output Module with 500 mA Output 2 V Internal Voltage Drop and 11 Ohm Line Resistance

The F3330 Output Module by HIMA is designed for precise and reliable performance in industrial automation and safety systems. Compact yet robust, it supports an output current of 500 mA and ensures stable operation with an internal voltage drop of no more than 2 V at full load. Its design accommodates a maximum admissible line resistance of 11 Ohms and includes undervoltage tripping at ≤ 16 V, providing dependable protection in critical applications.

Engineered for safety-critical environments, the F3330 maintains high operational reliability with features such as a maximum output leakage current of 350 µA, a controlled operating point for short-circuit currents ranging from 0.75 to 1.5 A, and a test signal duration of up to 200 µs. These specifications ensure accurate output control while safeguarding connected devices and systems.

With a compact footprint of 4 TE and low operating power consumption (5 V DC at 110 mA), the module is ideal for integration into modern automation racks. Shipping from Xiamen, China, the F3330 combines international quality standards with efficient delivery, making it a reliable choice for maintaining and expanding industrial control systems.
