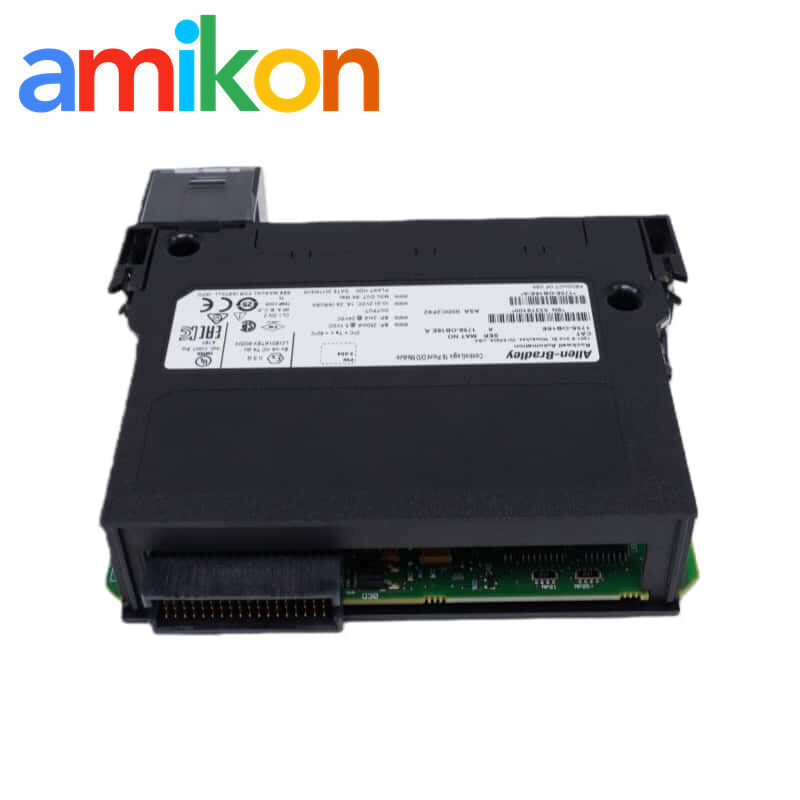

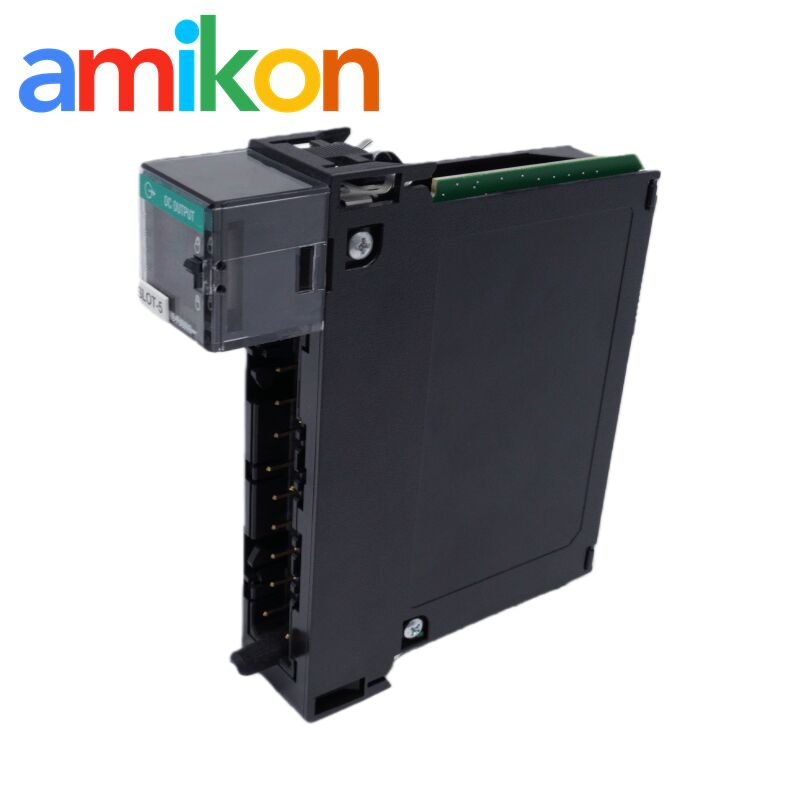

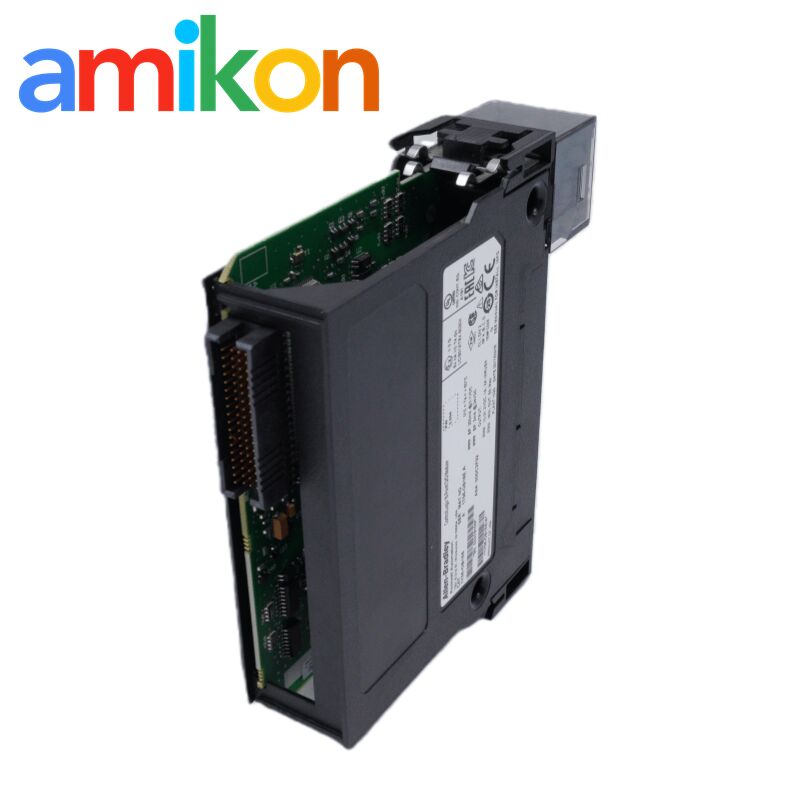

Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC

Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC

16 Point ControlLogix Output Module

10-31.2 VDC 1756-OB16E

24VDC Nominal Digitally Fused Output Module

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

1756-OB16E

Contact Us
Request A Quote
Product Details
Output Delay Time, OFF To ON:
70 µs Nom/1 Ms Max
Output Delay Time, ON To OFF:
360 µs Nom/1 Ms Max
Backplane Current At 24 Volts:
2 Milliamperes
Backplane Current At 5.1 Volts:
250 Milliamperes
Thermal Dissipation:
13.98 BTU/hr @ 60 °C (140 °F)
Output Voltage Range:
10-31.2 VDC
Nominal Output Voltage:
24VDC
Voltage:
12-24 Volts DC
Highlight:

16 Point ControlLogix Output Module

,

10-31.2 VDC 1756-OB16E

,

24VDC Nominal Digitally Fused Output Module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
66USD
Packaging Details
Brand new and original
Delivery Time
2-3 work days
Payment Terms
T/T
Supply Ability
in stock
Product Description
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC 0
Product Description
  • High-performance 16-point digitally fused output module for ControlLogix systems
  • Ideal for industrial automation applications
  • Operating voltage range: 10-30 VDC (nominal 24 VDC)
  • Maximum output current: 1 A per point at 60°C
  • Features electronic keying for secure installation
  • Fast switching with OFF-to-ON delay of 70 µs and ON-to-OFF delay of 360 µs
  • Low backplane current consumption: 2 mA at 24 V, 250 mA at 5.1 V
  • Thermal dissipation: 13.98 BTU/hr at 60°C
  • Compact dimensions: 23.3 * 18.3 * 5.3 cm
  • Weight: 0.35 kg
  • Model number: 1756-OB16E (spare: 1756OB16E)
  • Made in USA, shipped from Xiamen, China
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC 1

Output Module Status Indicators by Catalog Number

Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC 2

 1756-OB16E, 1756-OB16EK
 ControlLogix DC (10...31.2V) electronically fused output module Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC 3
Allen Bradley 1756-OB16E ControlLogix 16 Point Digitally Fused Output Module with 10-31.2 VDC 4
