Bently Nevada 2300/20-00 IP65 Vibration Monitor
Continuous Industrial Protection
Cost-Effective BOP Strategy Advanced Signal Diagnostics
Dual-Channel Vibration Monitoring Real-Time Relay Logic
उत्पत्ति के प्लेस:
यूएसए
ब्रांड नाम:
Bently Nevada
मॉडल संख्या:
2300/20-00
हमसे संपर्क करें
बोली मांगें
उत्पाद का विवरण
उद्गम देश:
यूएसए
वज़न:
1.12 किग्रा
ब्रांड:
बेंटली नेवादा
भाग संख्या:
2300/20-00
विवरण:
कंपन मॉनिटर
शिपिंग:
टीएनटी, डीएचएल, फेडेक्स, ईएमएस, यूपीएस
MOQ:
1 टुकड़ा
पैकेजिंग:
मूल नई पैकेजिंग
प्रमुखता देना:
Continuous Industrial Protection
,Cost-Effective BOP Strategy Advanced Signal Diagnostics
,Dual-Channel Vibration Monitoring Real-Time Relay Logic
भुगतान और शिपिंग की शर्तें
न्यूनतम आदेश मात्रा
1
मूल्य
66USD
पैकेजिंग विवरण
एकदम नया और मौलिक
प्रसव के समय
2-3 कार्य दिवस
भुगतान शर्तें
टी/टी
आपूर्ति की क्षमता
स्टॉक में
संबंधित उत्पाद
हमसे संपर्क करें
अब संपर्क करें
उत्पाद का वर्णन

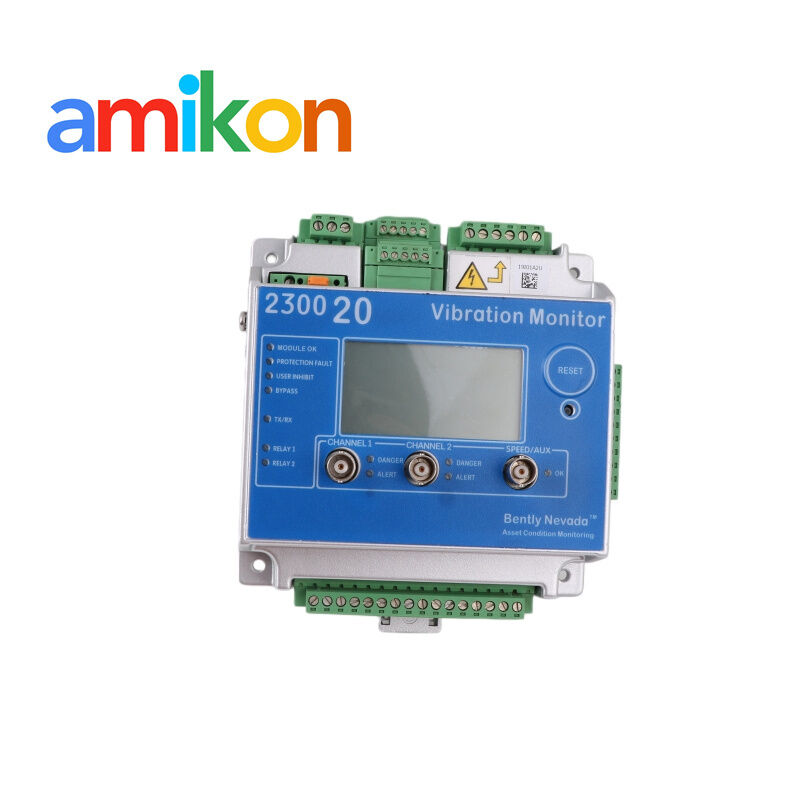

Bently Nevada 2300/20-00 Vibration Monitor
| Dimension | 16.2×15×6.7cm | Input Channels | 2 vibration, 1 speed |
|---|---|---|---|
| Sensor Support | Accelerometers, Velocity, Proximity | Analog Outputs | 2 × 4-20 mA |
| Operating Temp | -40°C to +70°C | Protection Rating | IP65 |
Key Features
Two 4-20 mA outputs with internal current loop power supply
Continuous monitoring and protection
Two acceleration/velocity/proximity inputs with synchronized sampling for advanced diagnostics
One dedicated speed channel supporting Proximity probes, Magnetic pickup and Proximity switch type sensors
Supports process variable on all three input channels
Key measurements (Acceleration pk, Acceleration rms, Velocity pk, Velocity rms, Displacement pp, Displacement rms, Speed) real-time provided with alarm configuration
Each channel has one measurement group, and can add additional two bandpass measurements and several nX measurements (depends on the device availability)
LCD and LED for real time value and status display
Ethernet 10/100 Base-T communication for configuration using Bently Nevada Monitor Configuration software (Included) with RSA encryption
Local contacts for positive engagement of monitor bypass, configuration lockout, and latched alarm/relay reset
Two relay outputs with programmable setpoints
Three buffered transducer outputs (including Keyphasor signal) providing short circuit and EMI protection. Buffered outputs for each signal are through BNC connectors
Frequently Asked Questions
What sensor types are compatible with the 2300/20-00 module?
It supports proximity probes, velocity sensors, and accelerometers, depending on the configured input card.
What is the measurement frequency range for different vibration signals?
Displacement covers low-frequency signals, while velocity and acceleration channels support higher-frequency ranges up to several kHz depending on configuration.
Does the module support synchronized multi-channel acquisition?
Yes. All channels are sampled using a common clock to ensure synchronization with minimal phase deviation.
What alarm functions are available in the system?
It supports Alert/Danger thresholds, delay settings, hysteresis, and configurable alarm logic.
What communication interfaces are supported?
It supports rack-based system communication and optional industrial protocols such as Modbus via gateway configuration.
What environmental and certification standards does it meet?
It is designed for industrial environments with EMC protection and typically complies with CE and API 670 requirements.
