Bently Nevada 330103-03-06-05-02-00 3300 XL 8 mm Proximity Probe with M10 x 1 Metric Thread and API 670 Compliance

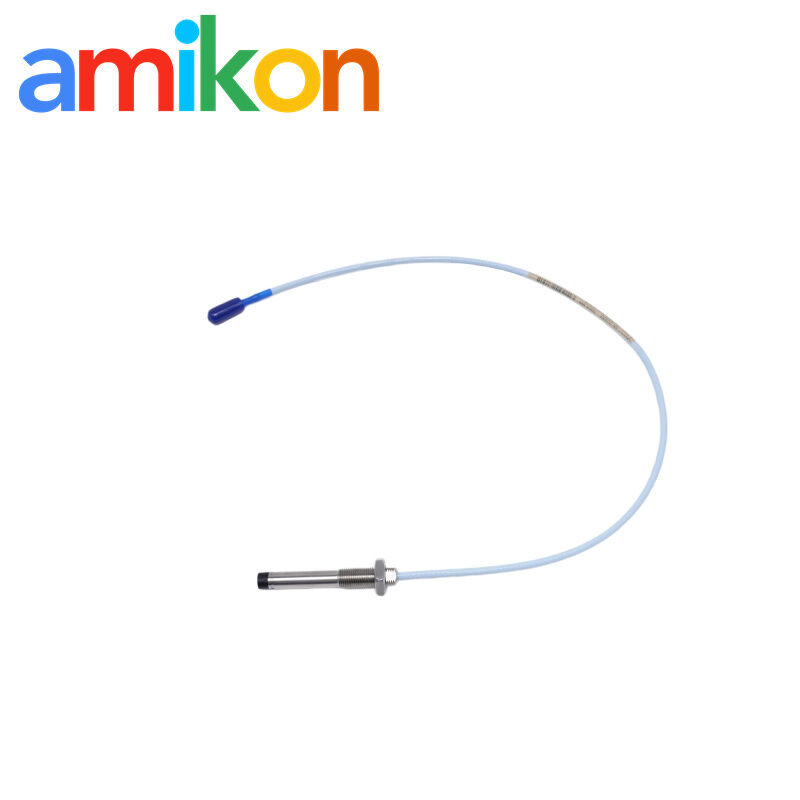

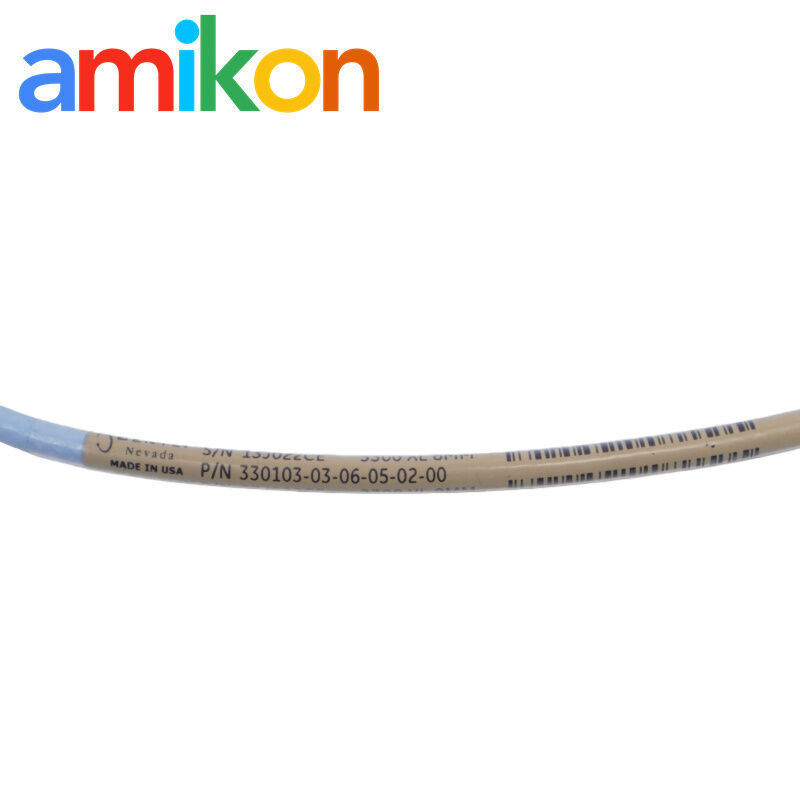

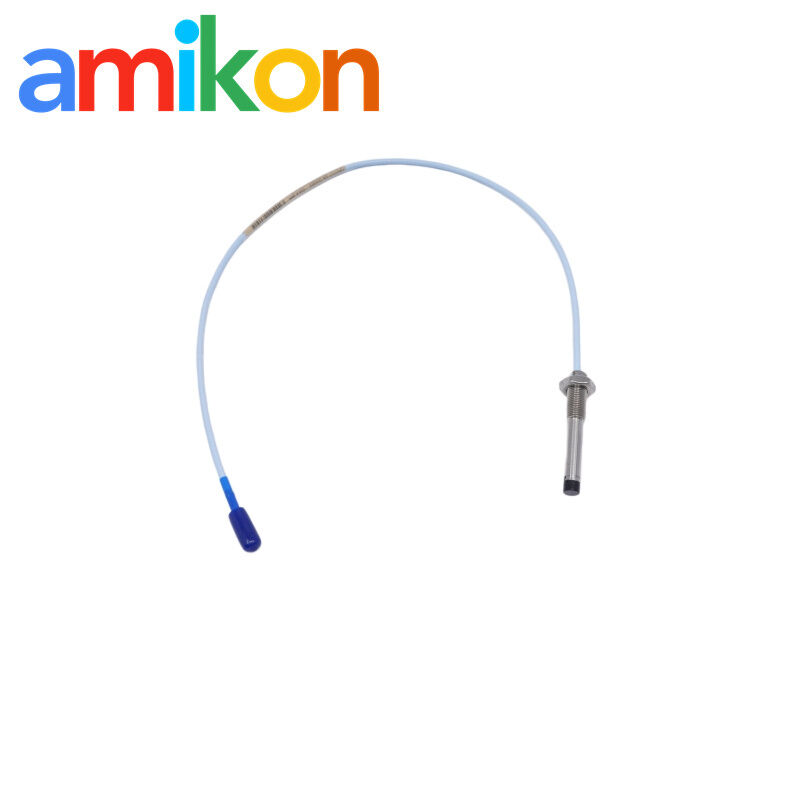

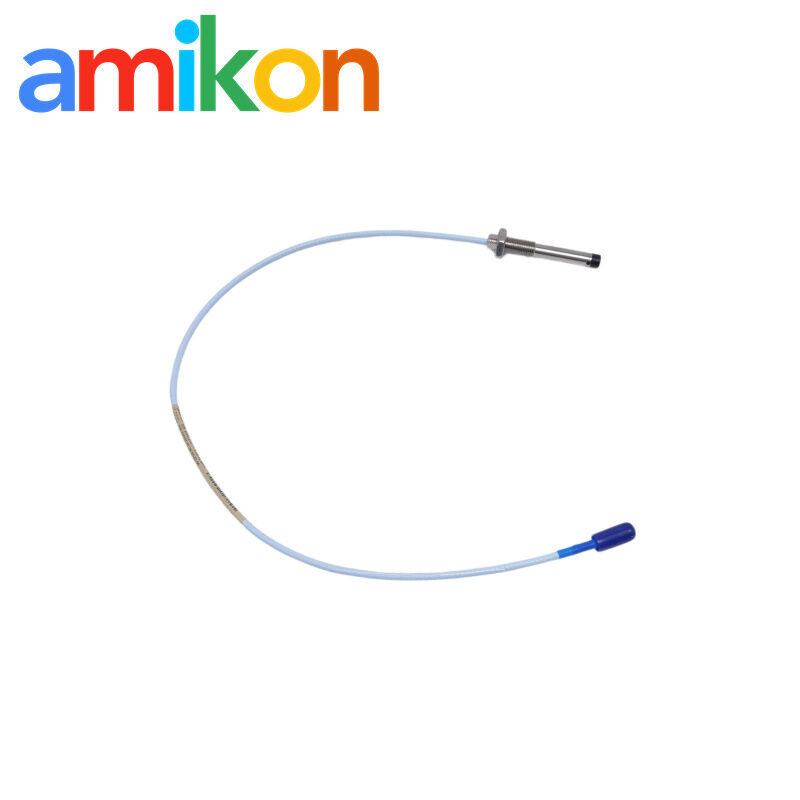

The 330103-03-06-05-02-00 is basically a Bently Nevada 3300 XL 8mm proximity probe, M10 x 1 thread type. Nothing unusual on the thread side, but the configuration details matter when you’re installing it in tight machinery housings. This one comes with 03 option = around 30 mm unthreaded length, and 06 option gives a 60 mm overall case length. Cable is the standard 0.5 m lead (05 option), and it ends with a ClickLoc connector (miniature coaxial type, 02 option). The “00” at the end usually means no hazardous area approvals, so it’s more of a general industrial version rather than certified for explosive zones.

In practice, small differences like this decide whether a 330103 probe replacement goes smoothly or ends up needing adapter work.

This probe is typically used inside a Bently Nevada 3500 rack module setup. Most commonly it pairs with 3500/40M Proximitor Monitor (125672-01), sometimes also 3500/42M modules depending on how the system is built. It won’t work as a standalone piece. You still need a 3300 XL Proximitor sensor plus a matching 3300 XL extension cable to complete the loop. People usually build it into either a 5-meter or 9-meter transducer system, depending on how far the signal chain needs to run. Once everything is connected, it becomes part of the normal machinery protection system (MPS) inside the rack, feeding vibration and position data continuously.

Main job is still non-contact displacement measurement. The output scale stays around 7.87 V/mm (200 mV/mil), which is standard for this kind of eddy current sensor.

In real field use, it’s not just one signal. You’ll usually see it tracking radial vibration, sometimes axial thrust position, and in more demanding setups shaft eccentricity and differential expansion. Most installations are on steam turbine monitoring, gas turbine shaft protection, or centrifugal compressor asset protection. Basically, anywhere rotating machinery runs nonstop and operators rely on early vibration changes rather than waiting for alarms.

Yes, it’s designed in line with API 670 compliant sensor expectations used in standard turbine and compressor protection systems. In real applications, the probe signal often feeds into Bently Nevada 3500 monitoring system spares architecture. It supports predictive maintenance system logic, and in some plant setups it can be part of the chain that triggers Emergency Shutdown System (ESD) actions. Not every site uses it for shutdown logic, but when they do, the requirement is simple: stable signal, consistent sensitivity, no drift under long-term vibration conditions.
